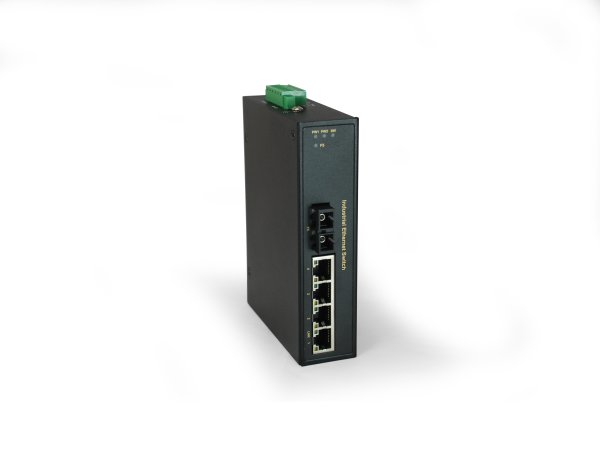

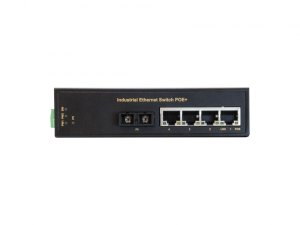

LevelOne 5-Port Fast Ethernet Industrial Switch, DIN-Rail, -40°C to 75°C
Roll over image to zoom inClick to Open expanded view
LevelOne 5-Port Fast Ethernet Industrial Switch, DIN-Rail, -40°C to 75°C
LevelOne 5-Port Fast Ethernet Industrial Switch, DIN-Rail, -40°C to 75°C

LevelOne 5-Port Fast Ethernet Industrial Switch, DIN-Rail, -40°C to 75°C

SKU: IFP-0503
LevelOne 5-Port Fast Ethernet Industrial Switch, DIN-Rail, -40°C to 75°C, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE), Wall mountable
Specifications
More Information
PDF

Product Properties

  • Warranty
  • 2 Years
  • SKU
  • IFP-0503
  • EAN
  • 4015867228067
  • Bullet points
  • Data transmission
  • Design
  • International Protection (IP) code
  • IP30
  • Logistics data
  • Master (outer) case gross weight
  • 8 kg
  • Management features
  • Network
  • Flow control support
  • Yes
  • Operational conditions
  • Optical fiber
  • Transmission distance (max)
  • 30 km
  • Other features
  • Terminal block port
  • Yes
  • Packaging data
  • Terminal block included
  • Yes
  • Performance
  • Ports & interfaces
  • Fast Ethernet (copper) ports quantity
  • 4
  • Fiber optic connector
  • SC
  • Fiber ports quantity
  • 1
  • Switch Number of Ports
  • 4
  • Power
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) power per port
  • 30 W
  • Total Power over Ethernet (PoE) budget
  • 126 W
  • Sustainability
  • Sustainability compliance
  • Yes
  • Technical details
  • Weight & dimensions

Description

LevelOne 5-Port Fast Ethernet Industrial Switch, DIN-Rail, -40°C to 75°C. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 1000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Wall mountable
  • Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 4
  • 10BASE-T, 100BASE-TX
  • MAC address table: 1000 entries Switching capacity: 1 Gbit/s
  • DC/PoE Power supply included Power over Ethernet (PoE)
  • Provides flexibility of 4 x 10/100BASE-TX ports
  • 10/100Mbps, full/half-duplex
  • 1 port SC SM 30km
  • Provides DIN-rail, wall or desktop mounting
  • Redundant power inputs with Terminal Block
