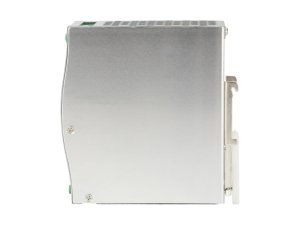

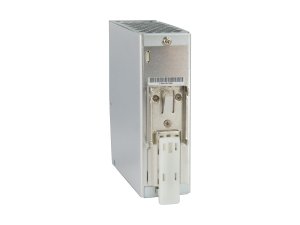

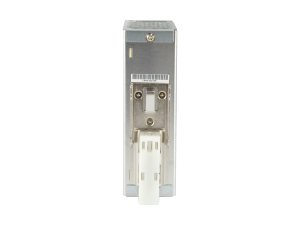

LevelOne 24V DC Industrial Power Supply, 120W, DIN-Rail

Roll over image to zoom inClick to Open expanded view

LevelOne 24V DC Industrial Power Supply, 120W, DIN-Rail

Name: LevelOne 24V DC Industrial Power Supply, 120W, DIN-Rail
Brand: LevelOne
SKU: POW-2441

SKU: POW-2441

LevelOne 24V DC Industrial Power Supply, 120W, DIN-Rail, 120 W, 90 - 264 V, Over voltage, Overload, Short circuit, 474600 h, UL508, TUV EN60950-1, EAC TP TC 004, BSMI CNS14336-1 approved;(meet EN60204-1), China

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
1 Year

SKU
POW-2441

EAN
4015867206478

Bullet points

Design

LED indicators
Yes

Product colour
Mint colour, Silver

Logistics data

Harmonized System (HS) code
84733020

Operational conditions

Operating relative humidity (H-H)
20 - 95%

Operating temperature (T-T)
-20 - 60 °C

Other features

Maximum current
5 A

Technical features
24V DC Out

Packaging data

Package depth
113.5 mm

Package height
40 mm

Package weight
600 g

Package width
125.2 mm

Performance

Country of origin
China

Mean time between failures (MTBF)
474600 h

Power

AC input voltage
90 - 264 V

Power protection features
Over voltage, Overload, Short circuit

Total power
120 W

Weight & dimensions

Depth
113.5 mm

Height
40 mm

Weight
600 g

Width
125.2 mm

Description

LevelOne 24V DC Industrial Power Supply, 120W, DIN-Rail. Total power: 120 W, AC input voltage: 90 - 264 V, Power protection features: Over voltage, Overload, Short circuit. Mean time between failures (MTBF): 474600 h, Safety: UL508, TUV EN60950-1, EAC TP TC 004, BSMI CNS14336-1 approved;(meet EN60204-1), Country of origin: China. Product colour: Mint colour, Silver. Width: 125.2 mm, Depth: 113.5 mm, Height: 40 mm. Package width: 125.2 mm, Package depth: 113.5 mm, Package height: 40 mm

Universal AC Input at Full Range
Short Circuit, Overload / Over Voltage Protection
Fanless Design
Supports DIN-rail installation
Isolation Class II
100% Full Load Burn-in Test
UL 508 approval
