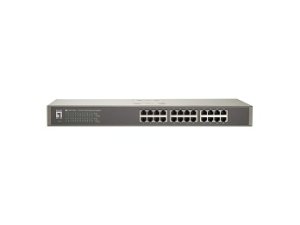

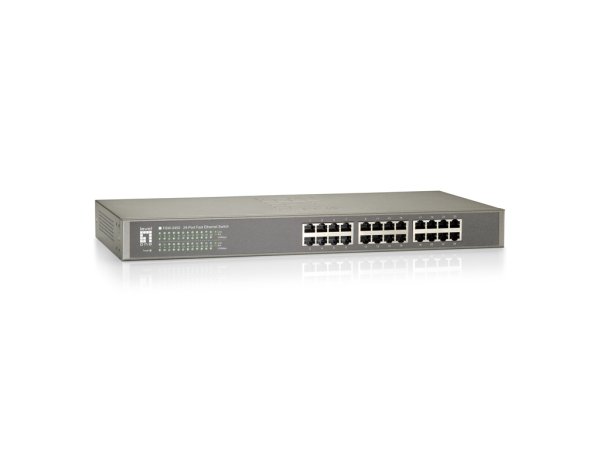

LevelOne 24-Port Fast Ethernet Switch

Name: LevelOne 24-Port Fast Ethernet Switch
Brand: LevelOne
SKU: FSW-2450

SKU: FSW-2450

Log In to View Pricing

LevelOne 24-Port Fast Ethernet Switch, Unmanaged, Fast Ethernet (10/100), Full duplex, Rack mounting

hypertec

Generated PDF (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
1 Year

SKU
FSW-2450

EAN
5050914833428

Bullet points

Point
"Provides flexibility of 24 x 10/100BASE-TX ports

1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX

IEEE 802.3x Flow Control protects against lost packets for reliable data transmission"

Supports 8K MAC address auto-learning and auto-aging

Data transmission

MAC address table
8192 entries

Packet buffer memory
0.16 MB

Store-and-forward
Yes

Switching capacity
4.8 Gbit/s

Design

Certification
FCC Class A, CE, RoHS

Country of origin
China

LED indicators
Activity, Link, Power

Product colour
Black

Rack mounting
Yes

Logistics data

Harmonized System (HS) code
85176990

Master (outer) case gross weight
11.6 kg

Master (outer) case height
240 mm

Master (outer) case length
500 mm

Master (outer) case width
405 mm

Management features

Quality of Service (QoS) support
Yes

Switch type
Unmanaged

Network

10G support
No

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Cable types supported
Cat5

Copper ethernet cabling technology
10BASE-T, 100BASE-TX

Flow control support
Yes

Full duplex
Yes

MAC address auto-learning supported
Yes

Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3z

Rate limiting
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-40 - 70 °C

Packaging data

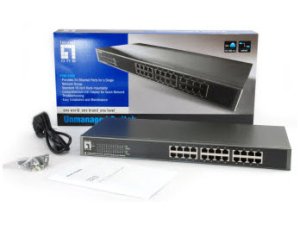

Cables included
AC

Package depth
486 mm

Package height
77 mm

Package weight
2.13 kg

Package width
224 mm

Quick start guide
Yes

Rack mount kit
Yes

Performance

Maximum cable length
100 m

Ports & interfaces

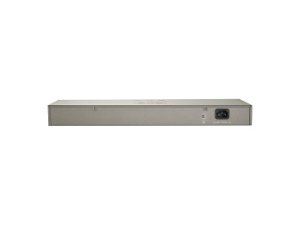

Power connector
DC-in jack

Switch Number of Ports
24

Switch Port Speed
Fast Ethernet (10/100)

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (typical)
10 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Protocols

Switching protocols
CSMA, CD

Weight & dimensions

Depth
440 mm

Height
44 mm

Weight
1.45 kg

Width
140 mm

Description

LevelOne 24-Port Fast Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8192 entries, Switching capacity: 4.8 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3z. Power connector: DC-in jack. Rack mounting

Unmanaged
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 24
Cat5 10BASE-T, 100BASE-TX
MAC address table: 8192 entries Switching capacity: 4.8 Gbit/s
Rack mounting
"Provides flexibility of 24 x 10/100BASE-TX ports
1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
Supports 8K MAC address auto-learning and auto-aging
IEEE 802.3x Flow Control protects against lost packets for reliable data transmission"
