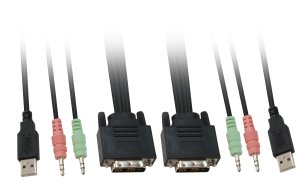

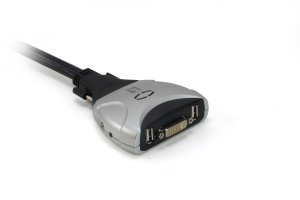

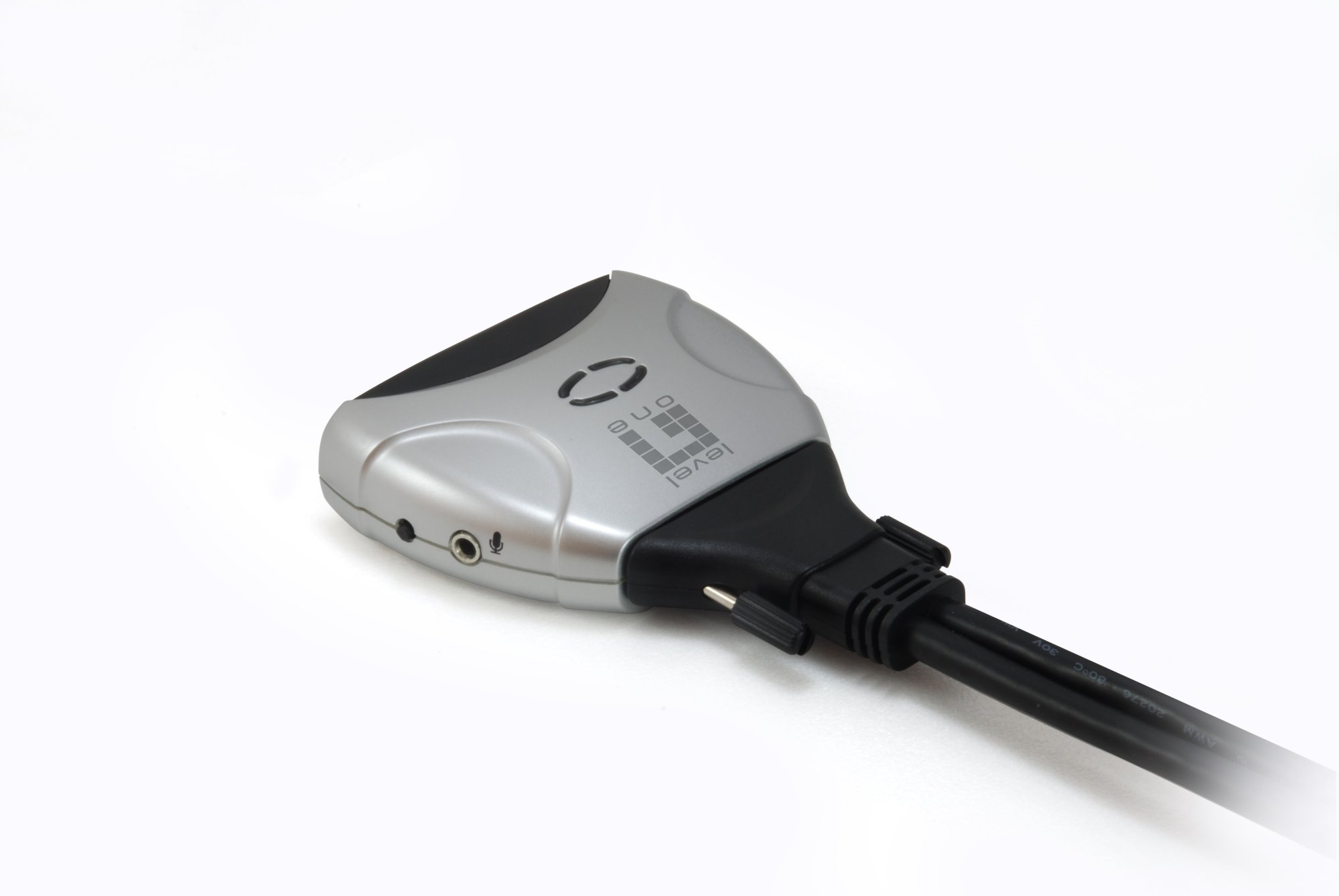

LevelOne 2-Port USB DVI-D Single Link Cable KVM Switch, audio support

Roll over image to zoom inClick to Open expanded view

LevelOne 2-Port USB DVI-D Single Link Cable KVM Switch, audio support

Name: LevelOne 2-Port USB DVI-D Single Link Cable KVM Switch, audio support
Brand: LevelOne
SKU: KVM-0260

SKU: KVM-0260

LevelOne 2-Port USB DVI-D Single Link Cable KVM Switch, audio support, 1920 x 1200 pixels, Black, Grey

hypertec

Generated PDF (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
1 Year

SKU
KVM-0260

EAN
5050914833480

Design

Cable length
1.2 m

Certification
CE, FCC

Display switch button
Yes

LED indicators
Yes

Product colour
Black, Grey

Display

Built-in display
No

Logistics data

Country of origin
China

Harmonized System (HS) code
85176200

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 50 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-20 - 60 °C

Packaging content

Cables included
KVM

Manual
Yes

Packaging data

Package depth
50 mm

Package height
250 mm

Package weight
600 g

Package width
160 mm

Performance

DDC2B support
Yes

HDCP
Yes

Maximum resolution
1920 x 1200 pixels

Plug and Play
Yes

Ports & interfaces

Audio connections
Yes

Console ports
3.5mm headphone, 3.5mm mic, DVI-I, USB A

DVI-I ports quantity
1

Headphone outputs
1

Keyboard port type
USB

Mouse port type
USB

Number of computers controlled
2

Number of microphone inputs
1

USB 2.0 ports quantity
2

USB connector type
USB Type-A

Video port type
DVI-I

Power

USB powered
Yes

Sustainability

Compliance certificates
RoHS

System requirements

Linux operating systems supported
Yes

Mac operating systems supported
Yes

Weight & dimensions

Depth
62 mm

Height
24 mm

Weight
457 g

Width
87 mm

Description

LevelOne 2-Port USB DVI-D Single Link Cable KVM Switch, audio support. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. Maximum resolution: 1920 x 1200 pixels. Product colour: Black, Grey, Cable length: 1.2 m, Certification: CE, FCC. Windows operating systems supported: Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home.... Compliance certificates: RoHS

Black, Grey
Number of computers controlled: 2
Keyboard port type: USB Mouse port type: USB Video port type: DVI-I
1920 x 1200 pixels
