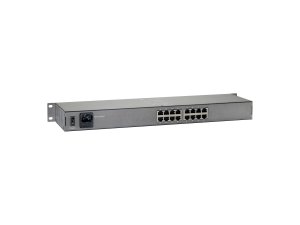

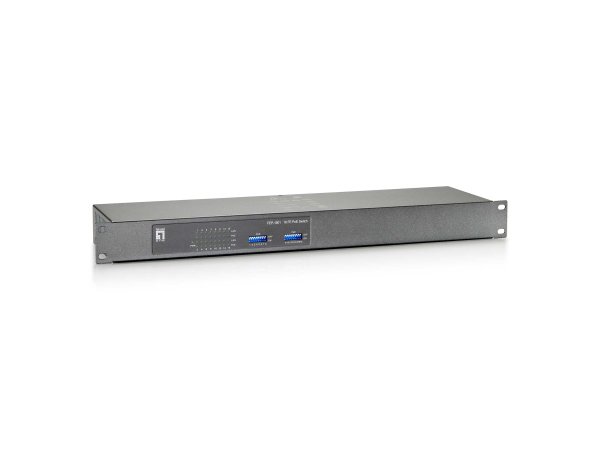

LevelOne 16-Port Fast Ethernet PoE Switch, 120W

Roll over image to zoom inClick to Open expanded view

LevelOne 16-Port Fast Ethernet PoE Switch, 120W

Name: LevelOne 16-Port Fast Ethernet PoE Switch, 120W
Brand: LevelOne
SKU: FEP-1601W120

SKU: FEP-1601W120

LevelOne 16-Port Fast Ethernet PoE Switch, 120W, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE), Rack mounting

hypertec

(Download)

Product manual (Download)

EU Declaration of Conformity (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
1 Year

SKU
FEP-1601W120

EAN
4015867199848

Data transmission

MAC address table
4000 entries

Packet forwarding rate (10 Mbps)
14880 pps

Packet forwarding rate (100 Mbps)
148000 pps

Store-and-forward
Yes

Switching capacity
3.2 Gbit/s

Design

Certification
FCC, CE, RoHS

Country of origin
Taiwan

LED indicators
Activity, PoE, Power

On/off switch
Yes

Product colour
Grey

Rack mounting
Yes

Logistics data

Harmonized System (HS) code
85176990

Master (outer) case gross weight
17 kg

Master (outer) case height
260 mm

Master (outer) case length
310 mm

Master (outer) case width
420 mm

Products per master (outer) case
10 pc(s)

Network

10G support
No

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Copper ethernet cabling technology
10BASE-T, 100BASE-TX

Flow control support
Yes

Full duplex
Yes

Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 45 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging data

Cables included
AC

Manual
Yes

Package depth
146 mm

Package height
78 mm

Package type
Box

Package weight
400 g

Package width
222 mm

Performance

Buffer size
160 KB

Ports & interfaces

Switch Number of Ports
16

Switch Port Speed
Fast Ethernet (10/100)

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Input current
5 A

Power consumption (typical)
120 W

Power protection features
Over current

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) ports quantity
16

Power over Ethernet (PoE) power per port
30 W

Total Power over Ethernet (PoE) budget
112 W

Weight & dimensions

Depth
118 mm

Height
44 mm

Weight
2.2 kg

Width
480 mm

Description

LevelOne 16-Port Fast Ethernet PoE Switch, 120W. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 4000 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting

Basic switching RJ-45 Ethernet ports quantity: 16
10BASE-T, 100BASE-TX
MAC address table: 4000 entries Switching capacity: 3.2 Gbit/s
Rack mounting
Power over Ethernet (PoE)
