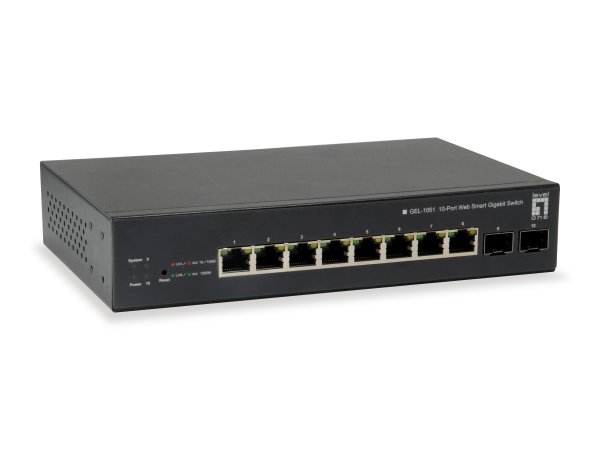

LevelOne 10-Port Web Smart Gigabit PoE Switch, 8 PoE Outputs, 2 x Gigabit SFP, 70W

Roll over image to zoom inClick to Open expanded view

LevelOne 10-Port Web Smart Gigabit PoE Switch, 8 PoE Outputs, 2 x Gigabit SFP, 70W

Name: LevelOne 10-Port Web Smart Gigabit PoE Switch, 8 PoE Outputs, 2 x Gigabit SFP, 70W
Brand: LevelOne
SKU: GEP-1051

SKU: GEP-1051

LevelOne 10-Port Web Smart Gigabit PoE Switch, 8 PoE Outputs, 2 x Gigabit SFP, 70W, Managed, L2/L3/L4, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting

hypertec

Product manual (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
1 Year

SKU
GEP-1051

EAN
4015867205013

Data transmission

Forwarding rate
14.9 Mpps

Jumbo frames
10000

Jumbo frames support
Yes

MAC address table
8000 entries

Number of queues
8

Packet buffer memory
4.1 MB

Store-and-forward
Yes

Switching capacity
20 Gbit/s

Design

Certification
CE class A, FCC, VCCI, BSMI

Country of origin
China

LED indicators
Activity, Link, Power, System

Product colour
Black

Rack mounting
Yes

Reset button
Yes

Safety
UL

Logistics data

Harmonized System (HS) code
85176990

Management features

ARP inspection
Yes

MIB support
Y

Quality of Service (QoS) support
Yes

Switch layer
L2/L3/L4

Switch type
Managed

System event log
Yes

Web-based management
Yes

Multicast features

Multicast Listener Discovery (MLD) snooping
Y

Network

10G support
No

Broadcast storm control
Yes

Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T

Fast leave
Yes

Flow control support
Yes

Link aggregation
Yes

Port mirroring
Yes

Rate limiting
Yes

Spanning tree protocol
Yes

Virtual LAN features
Tagged VLAN, Port-based VLAN

VLAN support
Yes

Operational conditions

Heat dissipation
267.95 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 50 °C

Optical fiber

Fiber ethernet cabling technology
1000BASE-X

Packaging data

Cables included
AC

Package depth
270 mm

Package height
85 mm

Package type
Box

Package weight
2.18 kg

Package width
375 mm

Quick start guide
Yes

Rack mount kit
Yes

Resource CD
Yes

Performance

Firmware upgradeable
Yes

Internal memory
16 MB

Mean time between failures (MTBF)
118824 h

Plug and Play
Yes

Ports & interfaces

SFP module slots quantity
2

Switch Number of Ports
8

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (typical)
80 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) power per port
30 W

Power over Ethernet plus (PoE+) ports quantity
8

Total Power over Ethernet (PoE) budget
70 W

Protocols

IPv4 & IPv6 features
IPv6 ping, IPv6 tracert, IPv6 Telnet, Dual stack IPv4/IPv6

Management protocols
SNMP v1/v2c/v3, Telnet

Security

Access Control List (ACL)
Yes

Access Control List (ACL) ingress
256

Authentication type
HWTACACS+, RADIUS

BPDU filtering/protection
Yes

CPU defense
Yes

DHCP features
DHCP client

DoS attack prevention
Yes

IGMP snooping
Yes

Loop protection
Yes

MAC address filtering
Yes

Neighbor discovery snooping
Yes

Password protection
Yes

Queue scheduling algorithms
Weighted Round Robin (WRR)

Root protection
Yes

Security algorithms
SSH, SSH-2, SSL/TLS

Static port security
Yes

Weight & dimensions

Depth
180 mm

Height
44 mm

Weight
2 kg

Width
294 mm

Description

LevelOne 10-Port Web Smart Gigabit PoE Switch, 8 PoE Outputs, 2 x Gigabit SFP, 70W. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting

Managed L2/L3/L4 Web-based management SNMP v1/v2c/v3, Telnet
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 8
10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table: 8000 entries Switching capacity: 20 Gbit/s
Access Control List (ACL)
Rack mounting
Power over Ethernet (PoE)
