Name: Intel Xeon Silver 4208 (2.1GHz, 11MB), 16GB (1 x 16GB) DDR4, 4LFF SATA HDD, Smart Array S100i SR Gen10, 550W PS + 16GB RAM (P00920-B21)
Brand: HPE
SKU: PERFML110-004

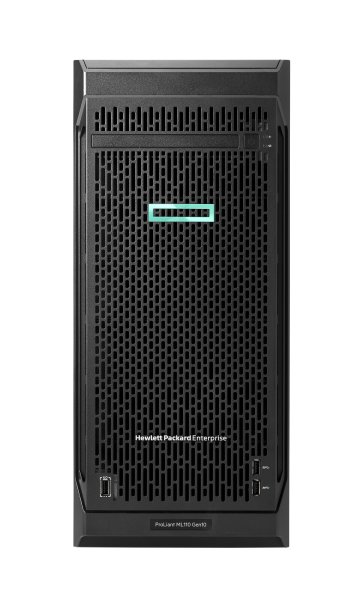

HPE ProLiant ML110 Gen10 + 16GB RAM server Tower (4.5U) Intel Xeon Silver 4208 2.1 GHz DDR4-SDRAM 550 W

Roll over image to zoom inClick to Open expanded view

Product Properties

Manufacturer
HPE

Device type
Server

Design

Chassis type
Tower (4.5U)

Product colour
Black

Expansion slots

PCI Express slots version
3.0

Filters

Machinecategory
Server

Graphics

On-board graphics card
Yes

On-board graphics card model
Not available

Memory

Internal memory type
DDR4-SDRAM

Memory clock speed
2933 MHz

Memory Installed
16 GB

Memory layout (slots x size)
1 x 16 GB

Memory Slot Support
192 GB

Memory slots
6x DIMM

Network

Ethernet interface type
Gigabit Ethernet

Ethernet LAN
Yes

LAN controller
HP 332i

Performance

Remote administration
iLO 5 ASIC

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

USB 2.0 ports quantity
3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5

VGA (D-Sub) ports quantity
1

Power

Power supply
550 W

Redundant power supply (RPS) support
No

Processor

Embedded options available
No

Execute Disable Bit
Yes

Maximum internal memory supported by processor
1.02 TB

Maximum number of PCI Express lanes
48

Memory clock speeds supported by processor
2400 MHz

Memory types supported by processor
DDR4-SDRAM

Motherboard chipset
Intel® C621

Number of Cores
8

Number of processors installed
1

Processor
4208

Processor boost frequency
3.2 GHz

Processor cache
11 MB

Processor cache type
L3

Processor codename
Cascade Lake

Processor family
Intel Xeon Silver

Processor frequency
2.1 GHz

Processor generation
2nd Generation Intel® Xeon® Scalable

Processor lithography
14 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor package size
76.0 x 56.5 mm

Processor socket
LGA 3647 (Socket P)

Processor threads
16

Scalability
2S

Supported instruction sets
AVX-512

Tcase
78 °C

Thermal Design Power (TDP)
85 W

Processor special features

Enhanced Intel SpeedStep Technology
Yes

Intel 64
Yes

Intel Trusted Execution Technology
Yes

Intel TSX-NI
Yes

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Intel® AES New Instructions (Intel® AES-NI)
Yes

Intel® Hyper Threading Technology (Intel® HT Technology)
Yes

Intel® Turbo Boost Technology
2.0

Processor ARK ID
193390

Software

Compatible operating systems
Microsoft Windows Serve Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware ClearOS

Operating system installed
No

Storage

HDD interface
Serial ATA

HDD size
3.5"

Hot-Plug support
Yes

Maximum storage capacity
96 TB

Number of HDDs supported
4

Optical drive type
No

RAID levels
0, 1, 5, 10

RAID support
Yes

Technical details

Sustainability certificates
ENERGY STAR

Weight & dimensions

Depth
480.5 mm

Height
440 mm

Width
195 mm

Memory

Internal memory type
DDR4-SDRAM

Memory clock speed
2933 MHz

Memory Installed
16 GB

Memory Slot Support
192 GB

Memory slots
6x DIMM

Processor

Processor
4208

Processor generation
2nd Generation Intel® Xeon® Scalable
