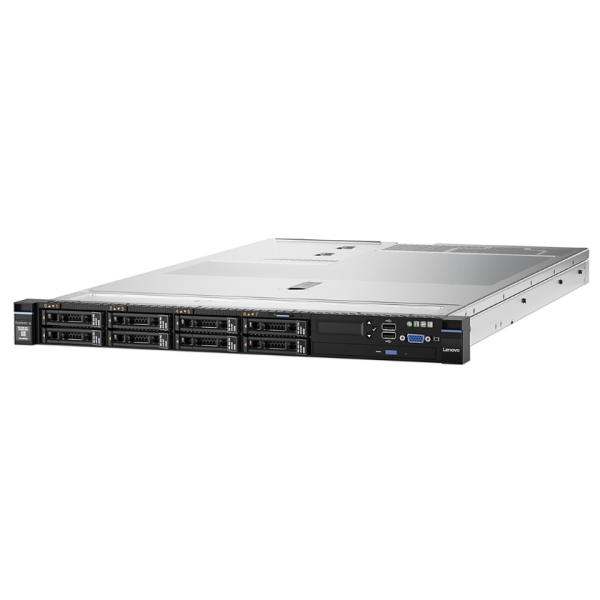

Name: Intel Xeon Processor E5-2660 v4 (35M Cache, 2.00 GHz), 16GB RAM, Raid M5210, 4 x GbE, 1 x 750W redundant hot-swap
Brand: Lenovo
SKU: 8869R2G

Intel Xeon Processor E5-2660 v4 (35M Cache, 2.00 GHz), 16GB RAM, Raid M5210, 4 x GbE, 1 x 750W redundant hot-swap

Roll over image to zoom inClick to Open expanded view

Product Properties

Manufacturer
Lenovo

Device type
Server

Design

Chassis type
Rack (1U)

Redundant fans support
Yes

Expansion slots

PCI Express slots version
3.0

Filters

Machinecategory
Server

Graphics

Maximum graphics card memory
16 MB

On-board graphics card
Yes

Memory

ECC
Yes

Internal memory type
DDR4-SDRAM

Memory clock speed
2133 MHz

Memory Installed
16 GB

Memory layout (slots x size)
1 x 16 GB

Memory slots
24

Network

Cabling technology
10/100/1000Base-T(X)

Ethernet interface type
Fast Ethernet, Gigabit Ethernet

Ethernet LAN
Yes

LAN controller
Broadcom BCM5719

Other features

S.M.A.R.T. support
Yes

Performance

Trusted Platform Module (TPM)
Yes

Power

Number of main power supplies
1

Number of redundant power supplies supported
2

Power supply
750 W

Redundant power supply (RPS) support
Yes

Processor

Bus type
QPI

Conflict-Free processor
Yes

ECC supported by processor
Yes

Embedded options available
No

Execute Disable Bit
Yes

Idle States
Yes

Maximum number of PCI Express lanes
40

Memory bandwidth supported by processor (max)
76.8 GB/s

Memory channels supported by processor
Quad

Memory clock speeds supported by processor
1600,1866,2133,2400 MHz

Memory types supported by processor
DDR4-SDRAM

Number of Cores
14

Number of processors installed
1

Number of QPI links
2

Physical Address Extension (PAE)
46 bit

Yes

Processor
E5-2660V4

Processor boost frequency
3.2 GHz

Processor cache
35 MB

Processor cache type
Smart Cache

Processor code
SR2N4

Processor codename
Broadwell

Processor family
Intel® Xeon® E5 v4

Processor frequency
2 GHz

Processor lithography
14 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor package size
45 x 52.5 mm

Processor series
Intel Xeon E5-2600 v4

Processor socket
LGA 2011-v3

Processor threads
28

Scalability
2S

Stepping
M0

Supported instruction sets
AVX 2.0

System bus rate
9.6 GT/s

Tcase
79 °C

Thermal Design Power (TDP)
105 W

Thermal Monitoring Technologies
Yes

Processor special features

CPU configuration (max)
2

Enhanced Intel SpeedStep Technology
Yes

Intel 64
Yes

Intel Demand Based Switching
Yes

Intel Enhanced Halt State
Yes

Intel Flex Memory Access
No

Intel Identity Protection Technology version
0.00

Intel Secure Key Technology version
1.00

Intel Trusted Execution Technology
Yes

Intel TSX-NI
Yes

Intel TSX-NI version
1.00

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Intel® AES New Instructions (Intel® AES-NI)
Yes

Intel® Hyper Threading Technology (Intel® HT Technology)
Yes

Intel® Identity Protection Technology (Intel® IPT)
No

Intel® OS Guard
Yes

Intel® Secure Key
Yes

Intel® Turbo Boost Technology
2.0

Processor ARK ID
91772

Software

Compatible operating systems
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSpher

Operating system installed
No

Storage

Hot-swap
Yes

Optical drive type
No

RAID support
Yes

Weight & dimensions

Depth
734 mm

Height
43 mm

Width
434 mm

Memory

Internal memory type
DDR4-SDRAM

Memory clock speed
2133 MHz

Memory Installed
16 GB

Memory slots
24

Processor

Processor
E5-2660V4
