Name: Intel Xeon Gold 5218R (27.5MB Cache, 2.1GHz), 32GB DDR4-SDRAM 3200 MT/s RDIMM Dual Rank, 480GB SSD, LAN (Broadcom 5720 DP + 57416 DP), PERC H730P 2GB, iDRAC9,Enterprise, 750W, No OS
Brand: Dell
SKU: CGMMF

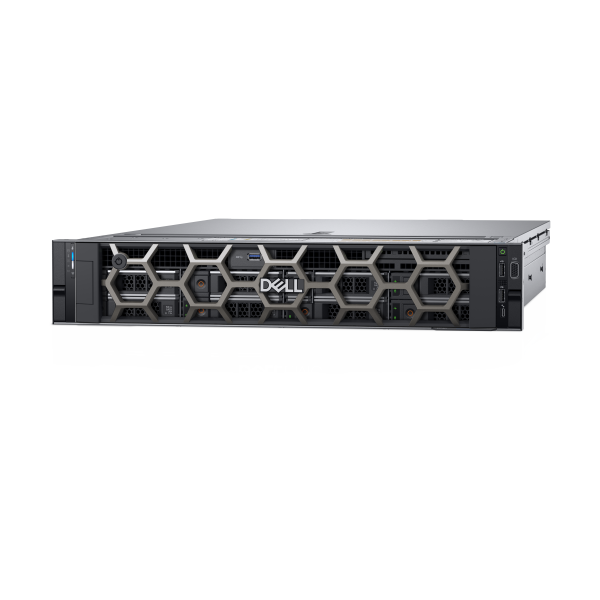

DELL PowerEdge R740 server 480 GB Rack (2U) Intel® Xeon® Gold 5218R 2.1 GHz 32 GB DDR4-SDRAM 750 W

Roll over image to zoom inClick to Open expanded view

Product Properties

Manufacturer
Dell

Device type
Server

Bullet points

Design

Chassis type
Rack (2U)

Product colour
Black

Rack mounting
Yes

Rack rails
Yes

Expansion slots

PCI Express slots version
3.0

PCI Express x8 (Gen 3.x) slots
4

Filters

Machinecategory
Server

Graphics

On-board graphics card model
Not available

Memory

Buffered memory type
Registered (buffered)

Internal memory type
DDR4-SDRAM

Memory clock speed
3200 MHz

Memory data transfer rate
3200 MT/s

Memory Installed
32 GB

Memory layout (slots x size)
1 x 32 GB

Memory ranking
2

Memory Slot Support
384 GB

Memory slots
24x DIMM

Network

Ethernet interface type
Gigabit Ethernet

Ethernet LAN
Yes

LAN controller
Broadcom 5720, Broadcom 57416

Other features

Bytes per sector
512

Data transfer rate
6 Gbit/s

Packaging content

Cables included
AC

Performance

Remote administration
iDRAC9 Enterprise

Ports & interfaces

Ethernet LAN (RJ-45) ports
4

Power cables quantity
1

Serial ports quantity
1

USB 2.0 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

VGA (D-Sub) ports quantity
2

Power

Power cable connector 1
C13 coupler

Power cable connector 2
C14 coupler

Power cable current
10 A

Power cable length
2 m

Power supply
750 W

Redundant power supply (RPS) support
No

Processor

Embedded options available
No

Execute Disable Bit
Yes

Maximum internal memory supported by processor
1.02 TB

Maximum number of PCI Express lanes
48

Memory clock speeds supported by processor
2667 MHz

Memory types supported by processor
DDR4-SDRAM

Number of Cores
20

Number of processors installed
1

Processor
5218R

Processor boost frequency
4 GHz

Processor cache
27.5 MB

Processor codename
Cascade Lake

Processor family
Intel® Xeon® Gold

Processor frequency
2.1 GHz

Processor generation
2nd Generation Intel® Xeon® Scalable

Processor lithography
14 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor package size
76.0 x 56.5 mm

Processor socket
LGA 3647 (Socket P)

Processor threads
40

Scalability
2S

Supported instruction sets
SSE4.2, AVX, AVX 2.0, AVX-512

Tcase
87 °C

Thermal Design Power (TDP)
125 W

Processor special features

Enhanced Intel SpeedStep Technology
Yes

Intel 64
Yes

Intel Trusted Execution Technology
Yes

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Intel® AES New Instructions (Intel® AES-NI)
Yes

Intel® Hyper Threading Technology (Intel® HT Technology)
Yes

Intel® Turbo Boost Technology
2.0

Processor ARK ID
199342

Software

Compatible operating systems
Canonical Ubuntu LTS Citrix XenServer Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi

Operating system installed
No

Storage

Drive writes per day (DWPD)
1

Hot-Plug support
Yes

Number of HDDs supported
8

Number of SSDs installed
1

Optical drive type
No

SSD capacity
480 GB

SSD interface
SATA III

SSD size
2.5"

Storage Capacity
480 GB

Supported HDD sizes
2.5"

Supported RAID controllers
PERC H730P 2GB

Terabytes written (TBW)
876

Weight & dimensions

Height
86.8 mm

Package depth
614 mm

Package height
297 mm

Package weight
37.7 kg

Package width
968 mm

Memory

Internal memory type
DDR4-SDRAM

Memory clock speed
3200 MHz

Memory Installed
32 GB

Memory Slot Support
384 GB

Memory slots
24x DIMM

Processor

Processor
5218R

Processor generation
2nd Generation Intel® Xeon® Scalable
