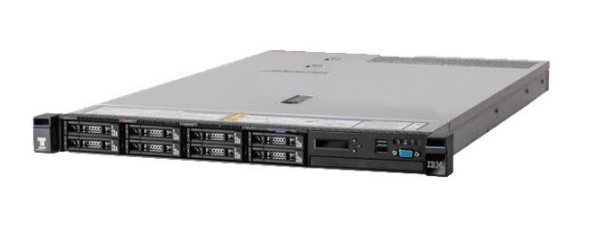

Name: Intel Xeon E5-2650 v4 (30M Cache, 2.2GHz), 16GB DDR4 2400MHz, 10x2.5",Matrox G200eR2 16MB, Raid M5210, 4xGigabit Ethernet, 1x900W
Brand: Lenovo
SKU: 8869EUG

Intel Xeon E5-2650 v4 (30M Cache, 2.2GHz), 16GB DDR4 2400MHz, 10x2.5",Matrox G200eR2 16MB, Raid M5210, 4xGigabit Ethernet, 1x900W

Roll over image to zoom inClick to Open expanded view

Product Properties

Manufacturer
Lenovo

Device type
Server

Bullet points

Point
Energy-efficient TruDDR4 memory

Expandable 1U 2-socket rack server

Flexible storage-based configurations

High-performance Intel® Xeon® processors

Industry-leading reliability

Design

Chassis type
Rack (1U)

Redundant fans support
Yes

Expansion slots

PCI Express slots version
3.0

Filters

Machinecategory
Server

Graphics

Maximum graphics card memory
16 MB

On-board graphics card
Yes

On-board graphics card model
Not available

Memory

ECC
Yes

Internal memory type
DDR3-SDRAM

Memory clock speed
2400 MHz

Memory Installed
16 GB

Memory layout (slots x size)
1 x 16 GB

Memory Slot Support
192 GB

Memory slots
12

Network

Cabling technology
10/100/1000Base-T(X)

Ethernet interface type
Gigabit Ethernet

Ethernet LAN
Yes

Performance

Trusted Platform Module (TPM)
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
4

USB 2.0 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3

VGA (D-Sub) ports quantity
1

Power

Number of main power supplies
1

Number of redundant power supplies installed
1

Power supply
900 W

Redundant power supply (RPS) support
Yes

Processor

Bus type
QPI

Conflict-Free processor
Yes

ECC supported by processor
Yes

Embedded options available
Yes

Execute Disable Bit
Yes

Idle States
Yes

Maximum internal memory supported by processor
1.54 TB

Maximum number of PCI Express lanes
40

Memory bandwidth supported by processor (max)
68.3 GB/s

Memory channels supported by processor
Quad

Memory clock speeds supported by processor
1600,1866,2133 MHz

Memory types supported by processor
DDR4-SDRAM

Motherboard chipset
Intel® C612

Number of Cores
10

Number of processors installed
1

Number of QPI links
2

PCI Express configurations
1x4, 1x8, 1x16

Physical Address Extension (PAE)
46 bit

Yes

Processor
E5-2640V4

Processor boost frequency
3.4 GHz

Processor cache
25 MB

Processor cache type
Smart Cache

Processor codename
Broadwell

Processor family
Intel® Xeon® E5 v4

Processor frequency
2.4 GHz

Processor lithography
14 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor package size
52.5 x 51 mm

Processor series
Intel Xeon E5-2600 v4

Processor socket
LGA 2011-v3

Processor threads
20

Scalability
2S

Stepping
R0

Supported instruction sets
AVX 2.0

System bus rate
8 GT/s

Tcase
76 °C

Thermal Design Power (TDP)
90 W

Thermal Monitoring Technologies
Yes

Processor special features

CPU configuration (max)
2

Enhanced Intel SpeedStep Technology
Yes

Intel 64
Yes

Intel Demand Based Switching
Yes

Intel Flex Memory Access
No

Intel Trusted Execution Technology
Yes

Intel TSX-NI
Yes

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Intel® AES New Instructions (Intel® AES-NI)
Yes

Intel® Hyper Threading Technology (Intel® HT Technology)
Yes

Intel® Identity Protection Technology (Intel® IPT)
No

Intel® OS Guard
Yes

Intel® Secure Key
Yes

Intel® Turbo Boost Technology
2.0

Processor ARK ID
92984

Software

Compatible operating systems
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSpher

Storage

Hot-swap
Yes

RAID support
Yes

SSD interface
Serial Attached SCSI (SAS)

Weight & dimensions

Depth
734 mm

Height
43 mm

Weight
13.8 kg

Width
429 mm

Memory

Internal memory type
DDR3-SDRAM

Memory clock speed
2400 MHz

Memory Installed
16 GB

Memory Slot Support
192 GB

Memory slots
12

Processor

Processor
E5-2640V4
