Name: Intel Xeon E-2336 (12MB Cache, 2.9GHz), 16GB DDR4-SDRAM (3200MT/s), 1200GB HDD, LAN (Broadcom 5720), PERC H755, iDRAC9, Enterprise 15G, 2 x 600W, Oracle Solaris 11.1
Brand: Dell
SKU: V67J5

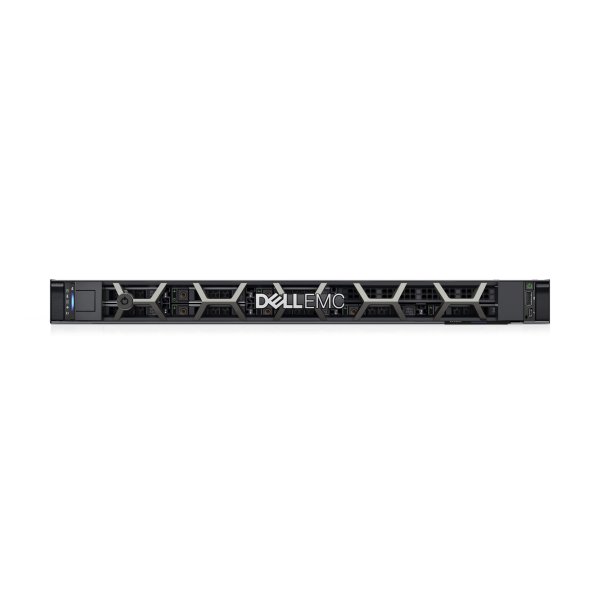

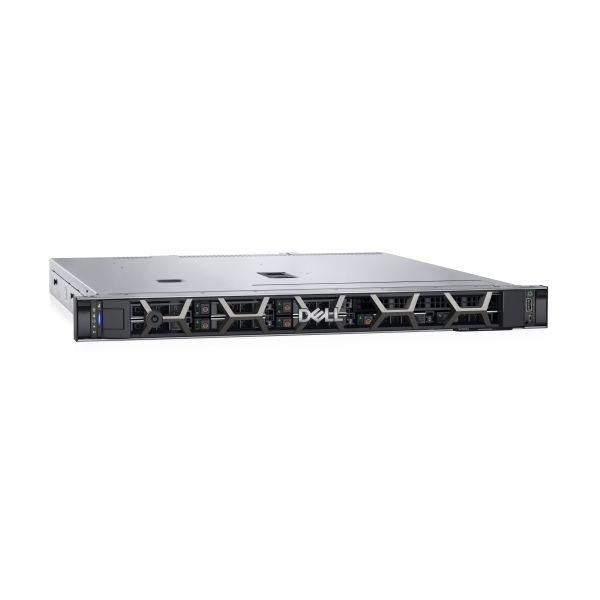

DELL PowerEdge R350 server 1.2 TB Rack (1U) Intel Xeon E E-2336 2.9 GHz 16 GB DDR4-SDRAM 600 W

Roll over image to zoom inClick to Open expanded view

Product Properties

Manufacturer
Dell

Device type
Server

Bullet points

Carbon footprint

Carbon emissions (End-of-Life)
17 kg of CO2e

Carbon emissions (Logistics)
107 kg of CO2e

Carbon emissions (Manufacturing)
451 kg of CO2e

Carbon emissions (Use)
1840 kg of CO2e

PAIA version
1.3.2, 2022

Total carbon emissions (Standard deviation)
1160 kg of CO2e

Total carbon emissions (w/o Use phase)
575 kg of CO2e

Total carbon footprint
2410 kg of CO2e

Design

Bezel
Yes

Chassis type
Rack (1U)

Product colour
Black

Rack mounting
Yes

Expansion slots

PCI Express x16 slots
1

PCI Express x8 slots
1

Filters

Machinecategory
Server

Graphics

On-board graphics card model
Not available

Logistics data

Harmonized System (HS) code
84714100

Memory

Buffered memory type
Unregistered (unbuffered)

ECC
Yes

Internal memory type
DDR4-SDRAM

Memory data transfer rate
3200 MT/s

Memory Installed
16 GB

Memory layout (slots x size)
1 x 16 GB

Memory Slot Support
128 GB

Memory slots
4x DIMM

Network

Cabling technology
10/100/1000Base-T(X)

Ethernet interface type
Gigabit Ethernet

Ethernet LAN
Yes

LAN controller
Broadcom 5720

Operational conditions

Non-operating altitude
0 - 12000 m

Operating altitude
0 - 3048 m

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-40 - 65 °C

Other features

Bytes per sector
512n

Data transfer rate
12 Gbit/s

Performance

Remote administration
iDRAC9, Enterprise 15G

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

USB 2.0 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1

VGA (D-Sub) ports quantity
1

Power

Number of redundant power supplies installed
2

Number of redundant power supplies supported
2

Power cable connector 1
C13 coupler

Power cable connector 2
C14 coupler

Power cable current
12 A

Power cable length
2 m

Power supply
600 W

Redundant power supply (RPS) support
Yes

Processor

Embedded options available
No

Execute Disable Bit
Yes

Idle States
Yes

Number of processors installed
1

Processor
E-2336

Processor boost frequency
4.8 GHz

Processor cache
12 MB

Processor family
Intel Xeon E

Processor frequency
2.9 GHz

Processor manufacturer
Intel

Processor special features

CPU configuration (max)
1

Enhanced Intel SpeedStep Technology
Yes

Intel 64
Yes

Intel Software Guard Extensions (Intel SGX)
Yes

Intel Trusted Execution Technology
Yes

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Software

Compatible operating systems
Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server

Operating system installed
No

Storage

HDD capacity
600 GB

HDD interface
Serial Attached SCSI (SAS)

HDD size
2.5"

HDD speed
10000 RPM

Hot-Plug support
Yes

Number of HDDs installed
2

Number of HDDs supported
4

Optical drive type
No

RAID support
No

Storage Capacity
1.2 TB

Storage drive adapter included
Yes

Storage drive adapter type
2.5" - 3.5"

Supported HDD sizes
3.5"

Supported RAID controllers
PERC H755

Weight & dimensions

Height
428 mm

Width
434 mm

Memory

Internal memory type
DDR4-SDRAM

Memory Installed
16 GB

Memory Slot Support
128 GB

Memory slots
4x DIMM

Processor

Processor
E-2336
