Name: Intel Xeon E-2314 (8MB Cache, 2.8GHz), 8GB DDR4-SDRAM (3200MT/s), 2000GB HDD, LAN (Broadcom 5720), iDRAC9, Express 15G, 450W, No OS
Brand: Dell
SKU: 6V2CT

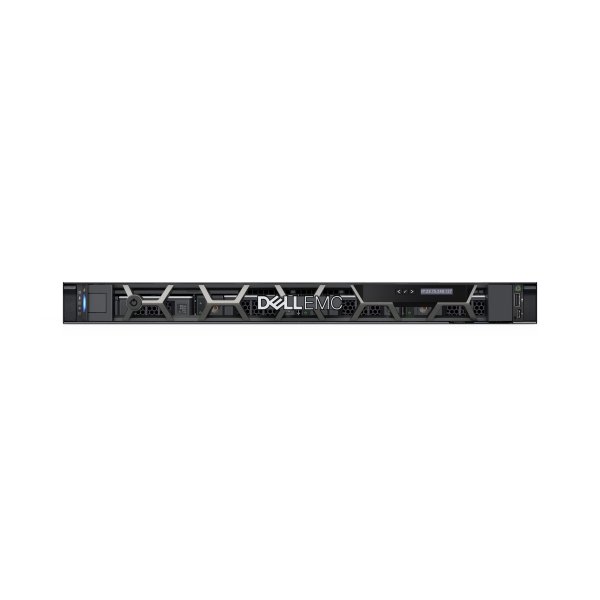

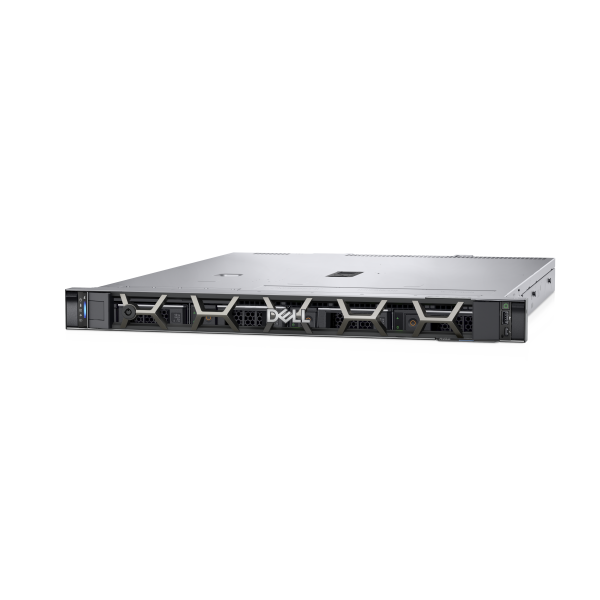

DELL PowerEdge R250 server 2 TB Rack (1U) Intel Xeon E E-2314 2.8 GHz 8 GB DDR4-SDRAM 450 W

Roll over image to zoom inClick to Open expanded view

Product Properties

Manufacturer
Dell

Device type
Server

Bullet points

Carbon footprint

Carbon emissions (End-of-Life)
17 kg of CO2e

Carbon emissions (Logistics)
110 kg of CO2e

Carbon emissions (Manufacturing)
505 kg of CO2e

Carbon emissions (Use)
1470 kg of CO2e

PAIA version
1.3.2, 2022

Total carbon emissions (Standard deviation)
935 kg of CO2e

Total carbon emissions (w/o Use phase)
632 kg of CO2e

Total carbon footprint
2100 kg of CO2e

Design

Chassis type
Rack (1U)

Product colour
Black

Rack mounting
Yes

Filters

Machinecategory
Server

Graphics

On-board graphics card model
Not available

Logistics data

Harmonized System (HS) code
84714100

Memory

Buffered memory type
Unregistered (unbuffered)

ECC
Yes

Internal memory type
DDR4-SDRAM

Memory data transfer rate
3200 MT/s

Memory Installed
8 GB

Memory layout (slots x size)
1 x 8 GB

Memory Slot Support
128 GB

Memory slots
4x DIMM

Network

Cabling technology
10/100/1000Base-T(X)

Ethernet interface type
Gigabit Ethernet

Ethernet LAN
Yes

LAN controller
Broadcom 5720

Other features

Bytes per sector
512n

Data transfer rate
6 Gbit/s

Performance

Remote administration
iDRAC9, Express 15G

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

USB 2.0 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1

VGA (D-Sub) ports quantity
1

Power

Number of main power supplies
1

Power cable connector 1
C13 coupler

Power cable connector 2
C14 coupler

Power cable current
10 A

Power cable length
2 m

Power supply
450 W

Redundant power supply (RPS) support
No

Processor

Execute Disable Bit
Yes

Idle States
Yes

Number of processors installed
1

Processor
E-2314

Processor boost frequency
4.5 GHz

Processor cache
8 MB

Processor family
Intel Xeon E

Processor frequency
2.8 GHz

Processor manufacturer
Intel

Processor special features

CPU configuration (max)
1

Enhanced Intel SpeedStep Technology
Yes

Intel 64
Yes

Intel Software Guard Extensions (Intel SGX)
Yes

Intel Trusted Execution Technology
Yes

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Software

Compatible operating systems
Canonical® Ubuntu® Server LTS Citrix® Hypervisor Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi®

Operating system installed
No

Storage

HDD capacity
2 TB

HDD interface
SATA III

HDD size
3.5"

HDD speed
7200 RPM

Hot-Plug support
Yes

Number of HDDs installed
1

Number of HDDs supported
4

Optical drive type
No

RAID support
No

Storage Capacity
2 TB

Supported HDD sizes
3.5"

Weight & dimensions

Height
42.8 mm

Width
482 mm

Memory

Internal memory type
DDR4-SDRAM

Memory Installed
8 GB

Memory Slot Support
128 GB

Memory slots
4x DIMM

Processor

Processor
E-2314
