Name: Intel Xeon E-2124 (3.3GHz, 8MB), 8GB (1 x 8GB) DDR4, 4 LFF NHP HDD, Smart Array S100i SR Gen10, 1x 350W PS + 1TB SATA HDD (843266-B21)
Brand: HPE
SKU: ENTML30-003

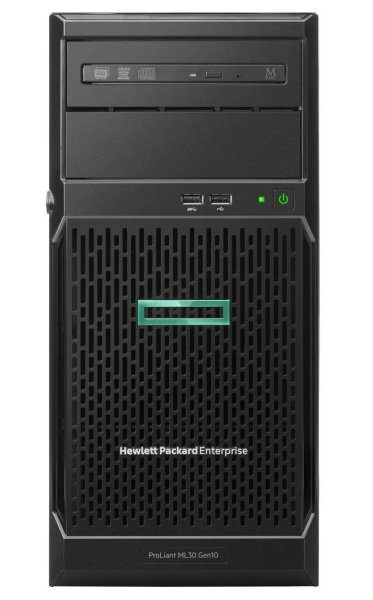

HPE ProLiant ML30 Gen10 (ENTML30-003) server Tower (4U) Intel® Xeon® E-2124 3.3 GHz 8 GB DDR4-SDRAM 350 W

Roll over image to zoom inClick to Open expanded view

Product Properties

Manufacturer
HPE

Device type
Server

Design

Chassis type
Tower (4U)

Product colour
Black

Redundant fans support
No

Expansion slots

PCI Express slots version
3.0

Filters

Machinecategory
Server

Graphics

On-board graphics card
Yes

On-board graphics card model
Not available

Memory

ECC
Yes

Internal memory type
DDR4-SDRAM

Memory clock speed
2666 MHz

Memory Installed
8 GB

Memory layout (slots x size)
1 x 8 GB

Memory Slot Support
64 GB

Memory slots
4x DIMM

Network

Ethernet interface type
Gigabit Ethernet

Ethernet LAN
Yes

LAN controller
HP 332i

Performance

Remote administration
iLO 5 ASIC

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

USB 2.0 ports quantity
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6

VGA (D-Sub) ports quantity
1

Power

Power supply
350 W

Redundant power supply (RPS) support
No

Processor

Bus type
DMI3

Embedded options available
No

Execute Disable Bit
Yes

Idle States
Yes

Maximum internal memory supported by processor
128 GB

Maximum number of PCI Express lanes
16

Memory bandwidth supported by processor (max)
41.6 GB/s

Memory clock speeds supported by processor
2666 MHz

Memory types supported by processor
DDR4-SDRAM

Motherboard chipset
Intel C246

Number of Cores
4

Number of processors installed
1

PCI Express configurations
1x16, 2x8, 1x8+2x4

Processor
E-2124

Processor boost frequency
4.3 GHz

Processor cache
8 MB

Processor cache type
Smart Cache

Processor codename
Coffee Lake

Processor family
Intel® Xeon®

Processor frequency
3.3 GHz

Processor lithography
14 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor package size
37.5 x 37.5 mm

Processor socket
LGA 1151 (Socket H4)

Processor threads
4

Scalability
1S

Supported instruction sets
AVX 2.0, SSE4.1, SSE4.2

System bus rate
8 GT/s

Thermal Design Power (TDP)
71 W

Thermal Monitoring Technologies
Yes

Tjunction
100 °C

Processor special features

CPU configuration (max)
1

Enhanced Intel SpeedStep Technology
Yes

Intel 64
Yes

Intel Enhanced Halt State
Yes

Intel Secure Key Technology version
1.00

Intel Software Guard Extensions (Intel SGX)
Yes

Intel Trusted Execution Technology
Yes

Intel TSX-NI
Yes

Intel TSX-NI version
1.00

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Intel® AES New Instructions (Intel® AES-NI)
Yes

Intel® Hyper Threading Technology (Intel® HT Technology)
No

Intel® OS Guard
Yes

Intel® Secure Key
Yes

Intel® Turbo Boost Technology
2.0

Processor ARK ID
134856

Software

Compatible operating systems
Microsoft Windows Server 2016 & 2019 Red Hat Enterprise Linux (RHEL) 7.5 SUSE Linux Enterprise Server (SLES) 12 SP3 & 15 VMware ESXi 6.5 U2 & 6.7 ClearOS

Operating system installed
No

Storage

HDD interface
Serial ATA

HDD size
3.5"

Hot-Plug support
No

Maximum storage capacity
56 TB

Number of HDDs supported
4

Optical drive type
No

RAID levels
0, 1, 5, 10

RAID support
Yes

Weight & dimensions

Depth
475 mm

Height
368.3 mm

Width
175 mm

Memory

Internal memory type
DDR4-SDRAM

Memory clock speed
2666 MHz

Memory Installed
8 GB

Memory Slot Support
64 GB

Memory slots
4x DIMM

Processor

Processor
E-2124
