• Design

• Chassis type

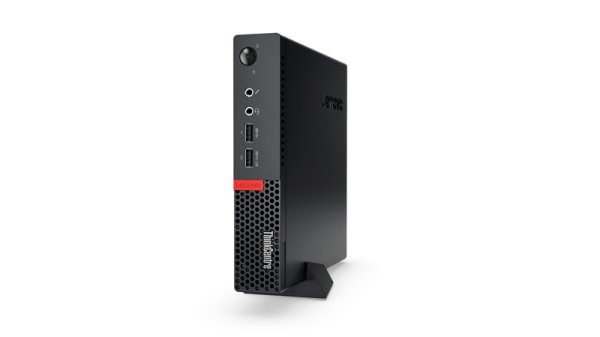

• mini PC

• Housing material
• Metal

• Placement supported
• Horizontal/Vertical

• Product colour
• Black

• Volume
• 1 L

• Filters

• Machinecategory
• Personal computer

• Graphics

• Discrete graphics card
• No

• Maximum on-board graphics card memory
• 64 GB

• Number of displays supported (on-board graphics)
• 3

• On-board graphics card
• Yes

• On-board graphics card base frequency
• 350 MHz

• On-board graphics card DirectX version
• 12.0

• On-board graphics card dynamic frequency (max)
• 1100 MHz

• On-board graphics card family
• Intel® HD Graphics

• On-board graphics card ID
• 0x5912

• On-board graphics card model
• Intel® HD Graphics 630

• On-board graphics card OpenGL version
• 4.4

• Memory

• Internal memory type
• DDR4-SDRAM

• Memory channels
• Dual-channel

• Memory clock speed
• 2400 MHz

• Memory Installed
• 4 GB

• Memory Slot Support
• 32 GB

• Memory slots
• 2x SO-DIMM

• Non-ECC
• Yes

• Network

• Cabling technology
• 10/100/1000Base-T(X)

• Ethernet LAN
• Yes

• Ethernet LAN data rates
• 10,100,1000 Mbit/s

• Wi-Fi
• No

• Other features

• Intel segment tagging
• Enterprise, Professional

• Packaging content

• Display included
• No

• Keyboard included
• Yes

• Manual
• Yes

• Mouse included
• Yes

• Power cord included
• Yes

• Performance

• Audio chip
• ALC294

• Audio system
• High Definition Audio

• Motherboard chipset
• Intel® B250

• Password protection
• Yes

• Product type
• Mini PC

• Ports & interfaces

• Combo headphone/mic port
• Yes

• DisplayPorts quantity
• 2

• DVI port
• No

• Ethernet LAN (RJ-45) ports
• 1

• Headphone outputs
• 1

• Microphone in
• Yes

• Parallel ports quantity
• 1

• USB 2.0 ports quantity
• 2

• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
• 6

• VGA (D-Sub) ports quantity
• 1

• Power

• Power supply
• 65 W

• Power supply input frequency
• 50 - 60 Hz

• Power supply input voltage
• 100 - 240 V

• Processor

• Bus type
• DMI3

• Configurable TDP-down
• 25 W

• Configurable TDP-down frequency
• 2.4 GHz

• ECC supported by processor
• Yes

• Maximum internal memory supported by processor
• 64 GB

• Maximum number of PCI Express lanes
• 16

• Memory bandwidth supported by processor (max)
• 34.1 GB/s

• Memory clock speeds supported by processor
• 1333,1600,2133,2400 MHz

• Memory types supported by processor
• DDR3L-SDRAM, DDR4-SDRAM

• Memory voltage supported by processor
• 1.35 V

• Number of Cores
• 2

• Number of processors installed
• 1

• PCI Express configurations
• 1x16, 1x8+2x4, 2x8

• PCI Express slots version
• 3.0

• Processor
• i3-7100T

• Processor cache
• 3 MB

• Processor cache type
• Smart Cache

• Processor codename
• Kaby Lake

• Processor family
• Intel® Core™ i3

• Processor frequency
• 3.4 GHz

• Processor generation
• 7th gen Intel® Core™ i3

• Processor lithography
• 14 nm

• Processor manufacturer
• Intel

• Processor operating modes
• 64-bit

• Processor socket
• LGA 1151 (Socket H4)

• Processor threads
• 4

• Stepping
• S0

• System bus rate
• 8 GT/s

• Tcase
• 66 °C

• Thermal Design Power (TDP)
• 35 W

• Tjunction
• 92 °C

• Processor special features

• Conflict-Free processor
• Yes

• CPU configuration (max)
• 1

• Embedded options available
• No

• Enhanced Intel SpeedStep Technology
• Yes

• Execute Disable Bit
• Yes

• Idle States
• Yes

• Intel 64
• Yes

• Intel Clear Video Technology
• Yes

• Intel Enhanced Halt State
• Yes

• Intel Identity Protection Technology version
• 1.00

• Intel Secure Key Technology version
• 1.00

• Intel Software Guard Extensions (Intel SGX)
• Yes

• Intel Stable Image Platform Program (SIPP)
• No

• Intel Stable Image Platform Program (SIPP) version
• 0.00

• Intel Trusted Execution Technology
• No

• Intel TSX-NI
• No

• Intel TSX-NI version
• 0.00

• Intel Virtualization Technology (VT-x)
• Yes

• Intel Virtualization Technology for Directed I/O (VT-d)
• Yes

• Intel VT-x with Extended Page Tables (EPT)
• Yes

• Intel® AES New Instructions (Intel® AES-NI)
• Yes

• Intel® Clear Video HD Technology (Intel® CVT HD)
• Yes

• Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
• Yes

• Intel® Hyper Threading Technology (Intel® HT Technology)
• Yes

• Intel® Identity Protection Technology (Intel® IPT)
• Yes

• Intel® InTru™ 3D Technology
• Yes

• Intel® OS Guard
• Yes

• Intel® Quick Sync Video Technology
• Yes

• Intel® Secure Key
• Yes

• Intel® Turbo Boost Technology
• No

• Processor ARK ID
• 97485

• Processor code
• SR35P

• Processor package size
• 37.5 x 37.5 mm

• Scalability
• 1S

• Supported instruction sets
• AVX 2.0, SSE4.1, SSE4.2

• Thermal Monitoring Technologies
• Yes

• Thermal solution specification
• PCG 2015A

• Software

• Operating system architecture
• 64-bit

• Storage

• Card reader integrated
• Yes

• Optical drive type
• No

• Storage Capacity
• 500 GB

• Storage type
• HDD

• Sustainability

• Sustainability certificates
• RoHS, ENERGY STAR

• Weight & dimensions

• Depth
• 182.9 mm

• Height
• 179 mm

• Weight
• 1.32 kg

• Width
• 34.5 mm
