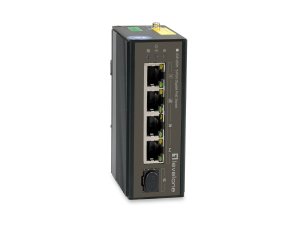

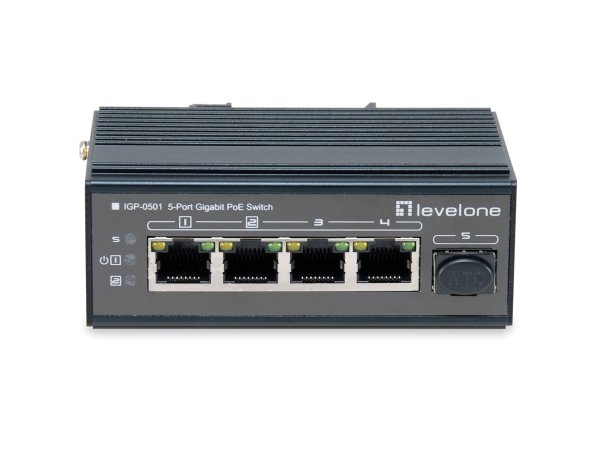

LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, -30°C to 65°C

Roll over image to zoom inClick to Open expanded view

LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, -30°C to 65°C

Name: LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, -30°C to 65°C
Brand: LevelOne
SKU: IGP-0501

SKU: IGP-0501

LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, -30°C to 65°C, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
2 Years

SKU
IGP-0501

EAN
4015867196625

Bullet points

Point
1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX

6KV surge protection level on each port

ESD and surge protection

IP30 metal case

Port 1 - 4 support IEEE 802.3at Power over Ethernet Plus (PoE+)

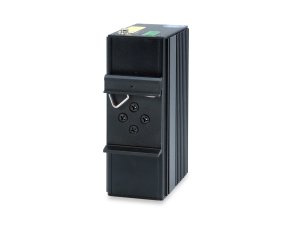

Provides DIN-rail, wall or desktop mounting

Design

Country of origin
China

DIN rail mounting
Yes

Housing material
Metal

International Protection (IP) code
IP30

LED indicators
Activity, Power

Product colour
Black

Rack mounting
No

Wall mountable
Yes

Logistics data

Harmonized System (HS) code
85176990

Master (outer) case gross weight
13 kg

Master (outer) case height
360 mm

Master (outer) case length
566 mm

Master (outer) case width
422 mm

Products per master (outer) case
28 pc(s)

Products per pallet
24 pc(s)

Network

10G support
No

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T

Flow control support
Yes

Full duplex
Yes

Half duplex
Yes

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
-30 - 65 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-40 - 85 °C

Packaging data

Package depth
60 mm

Package height
110 mm

Package type
Box

Package weight
400 g

Package width
70 mm

Quick start guide
Yes

Terminal block included
Yes

Ports & interfaces

Gigabit Ethernet (copper) ports quantity
4

SFP module slots quantity
1

Switch Number of Ports
4

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

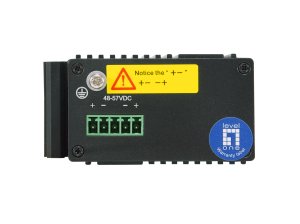

DC input voltage
48 - 57 V

Power supply included
No

Surge protection
Yes

Surge protection voltage
6 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) ports quantity
4

Power over Ethernet (PoE) power per port
30 W

Technical details

Pallet gross length
80 cm

Pallet gross width
120 cm

Pallet height (air)
159 cm

Weight & dimensions

Depth
36 mm

Height
101 mm

Weight
350 g

Width
65 mm

Description

LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, -30°C to 65°C. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 48 - 57 V. Power over Ethernet (PoE). Wall mountable

Basic switching RJ-45 Ethernet ports quantity: 4
10BASE-T, 100BASE-TX, 1000BASE-T
Power over Ethernet (PoE)
1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
Port 1 - 4 support IEEE 802.3at Power over Ethernet Plus (PoE+)
Provides DIN-rail, wall or desktop mounting
IP30 metal case
6KV surge protection level on each port
ESD and surge protection
