• Design

• Chassis type

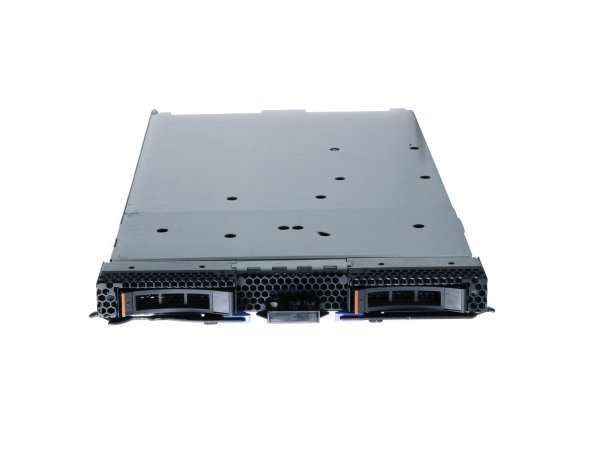

• Blade

• Expansion slots

• PCI Express slots version
• 3.0

• PCI Express x16 (Gen 3.x) slots
• 1

• PCI Express x8 (Gen 3.x) slots
• 1

• Graphics

• Maximum graphics card memory
• 16 MB

• On-board graphics card
• Yes

• Memory

• ECC
• Yes

• Internal memory type
• DDR3-SDRAM

• Memory clock speed
• 1333 MHz

• Memory Installed
• 8 GB

• Memory layout (slots x size)
• 1 x 8 GB

• Memory Slot Support
• 512 GB

• Memory slots
• 16

• Network

• Cabling technology
• 10/100/1000Base-T(X)

• Ethernet interface type
• 10 Gigabit Ethernet, Gigabit Ethernet

• Ethernet LAN
• Yes

• Wake-on-LAN ready
• Yes

• Operational conditions

• Operating relative humidity (H-H)
• 8 - 80%

• Operating temperature (T-T)
• 10 - 35 °C

• Storage relative humidity (H-H)
• 8 - 80%

• Storage temperature (T-T)
• -40 - 60 °C

• Other features

• Graphics card
• G200eR2

• Graphics card family
• Matrox

• iSCSI support
• Yes

• Performance

• Trusted Platform Module (TPM)
• Yes

• Trusted Platform Module (TPM) version
• 1.2

• Ports & interfaces

• Ethernet LAN (RJ-45) ports
• 4

• USB 2.0 ports quantity
• 1

• VGA (D-Sub) ports quantity
• 1

• Processor

• Bus type
• QPI

• Conflict-Free processor
• No

• ECC supported by processor
• Yes

• Embedded options available
• No

• Execute Disable Bit
• Yes

• Idle States
• Yes

• Maximum internal memory supported by processor
• 768 GB

• Maximum number of PCI Express lanes
• 40

• Maximum number of SMP processors
• 2

• Memory bandwidth supported by processor (max)
• 42.6 GB/s

• Memory channels supported by processor
• Quad

• Memory clock speeds supported by processor
• 800,1066,1333 MHz

• Memory types supported by processor
• DDR3-SDRAM

• Motherboard chipset
• Intel C600

• Number of Cores
• 4

• Number of processors installed
• 1

• Number of QPI links
• 2

• PCI Express configurations
• x4, x8, x16

• Physical Address Extension (PAE)
• 46 bit

• Processor
• E5-2603V2

• Processor cache
• 10 MB

• Processor cache type
• Smart Cache

• Processor codename
• Ivy Bridge EP

• Processor family
• Intel® Xeon® E5 Family

• Processor frequency
• 1.8 GHz

• Processor lithography
• 22 nm

• Processor manufacturer
• Intel

• Processor operating modes
• 64-bit

• Processor package size
• 52.5 x 45 mm

• Processor series
• Intel Xeon E5-2600 v2

• Processor socket
• LGA 2011 (Socket R)

• Processor threads
• 4

• Scalability
• 2S

• Supported instruction sets
• AVX

• System bus rate
• 6.4 GT/s

• Tcase
• 71 °C

• Thermal Design Power (TDP)
• 80 W

• Thermal Monitoring Technologies
• Yes

• Processor special features

• CPU configuration (max)
• 2

• Enhanced Intel SpeedStep Technology
• Yes

• Intel 64
• Yes

• Intel Demand Based Switching
• Yes

• Intel Enhanced Halt State
• Yes

• Intel Flex Memory Access
• No

• Intel Identity Protection Technology version
• 0.00

• Intel Secure Key Technology version
• 1.00

• Intel Trusted Execution Technology
• Yes

• Intel TSX-NI
• No

• Intel TSX-NI version
• 0.00

• Intel Virtualization Technology (VT-x)
• Yes

• Intel Virtualization Technology for Directed I/O (VT-d)
• Yes

• Intel VT-x with Extended Page Tables (EPT)
• Yes

• Intel® AES New Instructions (Intel® AES-NI)
• Yes

• Intel® Hyper Threading Technology (Intel® HT Technology)
• No

• Intel® Identity Protection Technology (Intel® IPT)
• No

• Intel® OS Guard
• Yes

• Intel® Secure Key
• Yes

• Intel® Turbo Boost Technology
• No

• Processor ARK ID
• 76157

• Software

• Compatible operating systems
• Microsoft Windows Server 2012, 2008 R2,2008 (x64), Red Hat Enterprise Linux 5 (x64) / 6 (x86/x64), SUSE Linux Enterprise Server 10 (AMD64/EM64T) / 11 (x86 AMD64/EM64T), VMware ESX 4.1 / ESXi 4.1, VMware vSphere 5

• Storage

• HDD interface
• Serial ATA III, Serial Attached SCSI (SAS)

• HDD size
• 2.5"

• Hot-swap
• Yes

• Number of HDDs supported
• 2

• Optical drive type
• No

• RAID levels
• 0, 1, 10, 1E

• RAID support
• Yes

• Supported HDD sizes
• 2.5"

• Weight & dimensions

• Depth
• 446 mm

• Height
• 245 mm

• Weight
• 5.4 kg

• Width
• 29 mm
