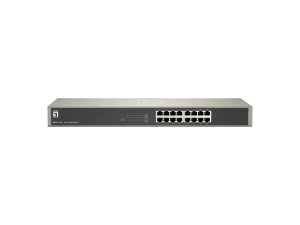

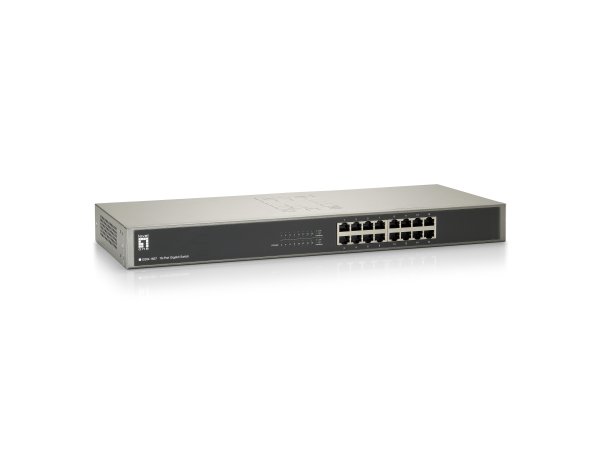

LevelOne 16-Port Gigabit Switch

Name: LevelOne 16-Port Gigabit Switch
Brand: LevelOne
SKU: GSW-1657

SKU: GSW-1657

Log In to View Pricing

LevelOne 16-Port Gigabit Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting

hypertec

Generated PDF (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
1 Year

SKU
GSW-1657

EAN
4015687143117

Bullet points

Point
10/100/1000Mbps wire speed transmission and reception

16 Gigabit Ethernet ports

9K jumbo frames to increase data transfer rates

Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)

Supports 8K MAC address auto-learning and auto-aging

Data transmission

Jumbo frames
10000

Jumbo frames support
Yes

MAC address table
8192 entries

Packet buffer memory
0.5 MB

Packet forwarding rate (1 Gbps)
1488000 pps

Packet forwarding rate (10 Mbps)
14880 pps

Packet forwarding rate (100 Mbps)
148000 pps

Store-and-forward
Yes

Switching capacity
32 Gbit/s

Design

Certification
FCC, CE

LED indicators
Activity, Link

Product colour
Black, Grey

Rack mounting
Yes

Logistics data

Harmonized System (HS) code
85176990

Master (outer) case gross weight
11.8 kg

Master (outer) case height
240 mm

Master (outer) case length
500 mm

Master (outer) case width
405 mm

Management features

Quality of Service (QoS) support
Yes

Switch type
Unmanaged

Network

10G support
No

Auto MDI/MDI-X
Yes

Cable types supported
Cat5, Cat6, Cat7

Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T

Flow control support
Yes

Full duplex
Yes

Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 45 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging data

Cables included
AC

Mounting brackets included
Yes

Package depth
486 mm

Package height
77 mm

Package weight
2.15 kg

Package width
224 mm

Quick start guide
Yes

Ports & interfaces

Switch Number of Ports
16

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Input current
0.6 A

Power consumption (typical)
13.3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Weight & dimensions

Depth
440 mm

Height
44 mm

Weight
1.48 kg

Width
140 mm

Description

LevelOne 16-Port Gigabit Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8192 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Rack mounting

Unmanaged
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 16
Cat5, Cat6, Cat7 10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table: 8192 entries Switching capacity: 32 Gbit/s
Rack mounting
16 Gigabit Ethernet ports
10/100/1000Mbps wire speed transmission and reception
Supports 8K MAC address auto-learning and auto-aging
9K jumbo frames to increase data transfer rates
Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
