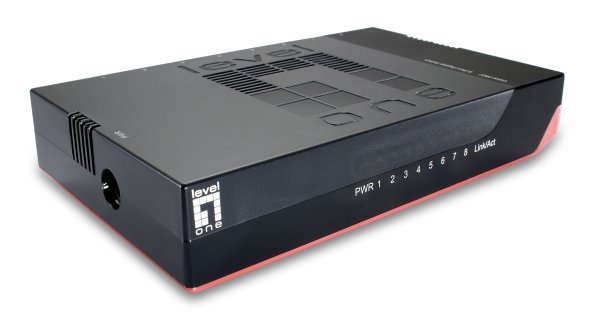

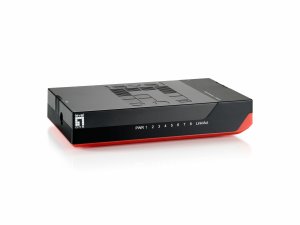

LevelOne 8-Port Gigabit Switch

Name: LevelOne 8-Port Gigabit Switch
Brand: LevelOne
SKU: GSW-0807

SKU: GSW-0807

Log In to View Pricing

LevelOne 8-Port Gigabit Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
1 Year

SKU
GSW-0807

EAN
4015867140048

Bullet points

Point
1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX

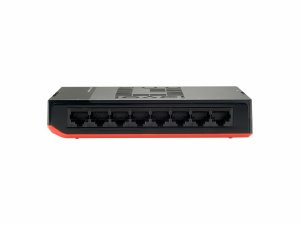

8 Gigabit Ethernet ports

9K jumbo frames to increase data transfer rates

IEEE 802.3x Flow Control protects against lost packets for reliable data transmission

Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)

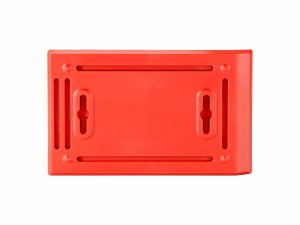

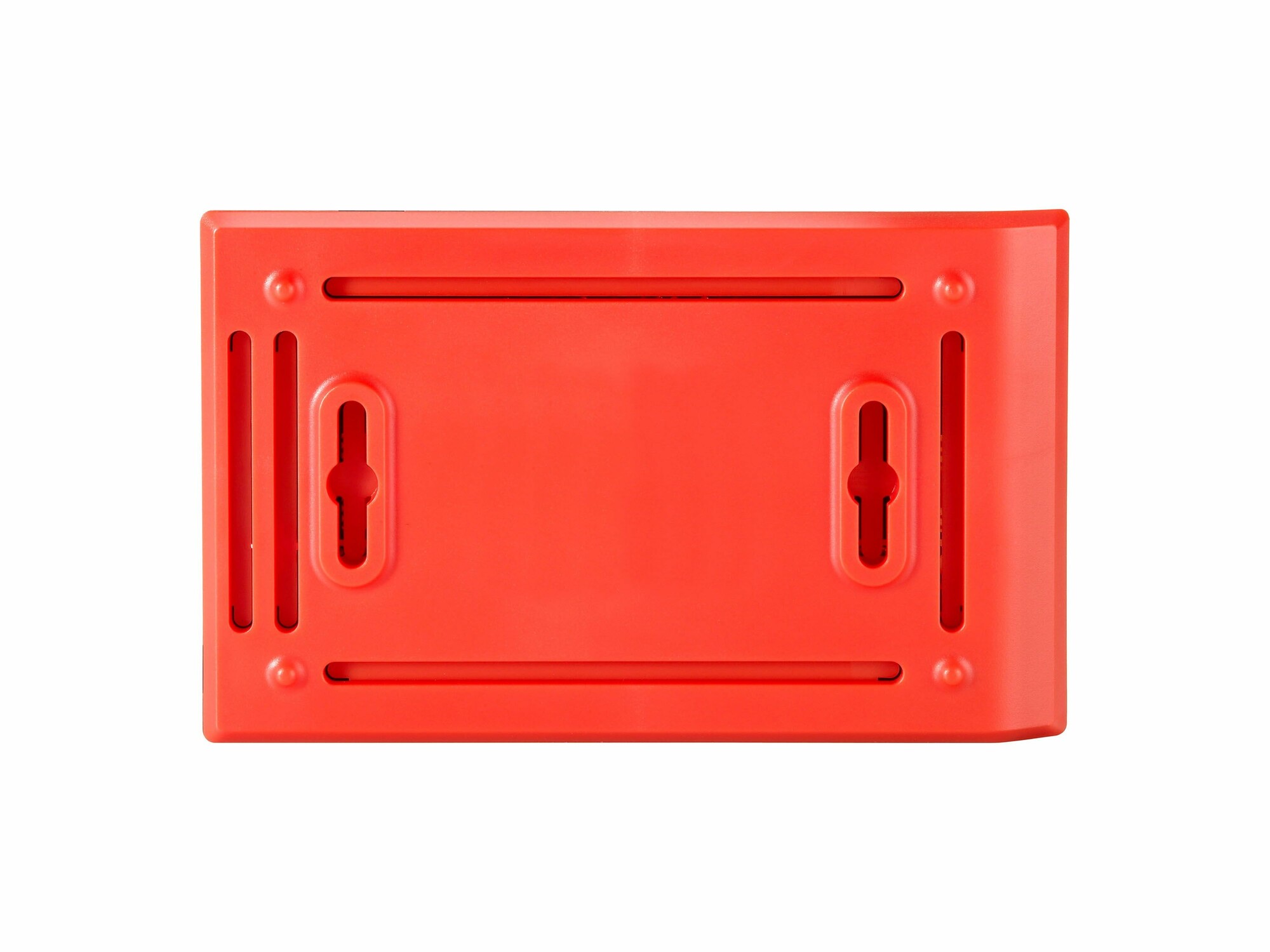

Provides wall or desktop mounting

Quick and easy installation

Supports 8K MAC address auto-learning and auto-aging

Data transmission

Jumbo frames
9000

Jumbo frames support
Yes

MAC address table
8192 entries

Packet forwarding rate (1 Gbps)
1488000 pps

Packet forwarding rate (10 Mbps)
14880 pps

Packet forwarding rate (100 Mbps)
148000 pps

Store-and-forward
Yes

Switching capacity
16 Gbit/s

Design

Certification
CE, RoHS, FCC

Country of origin
China

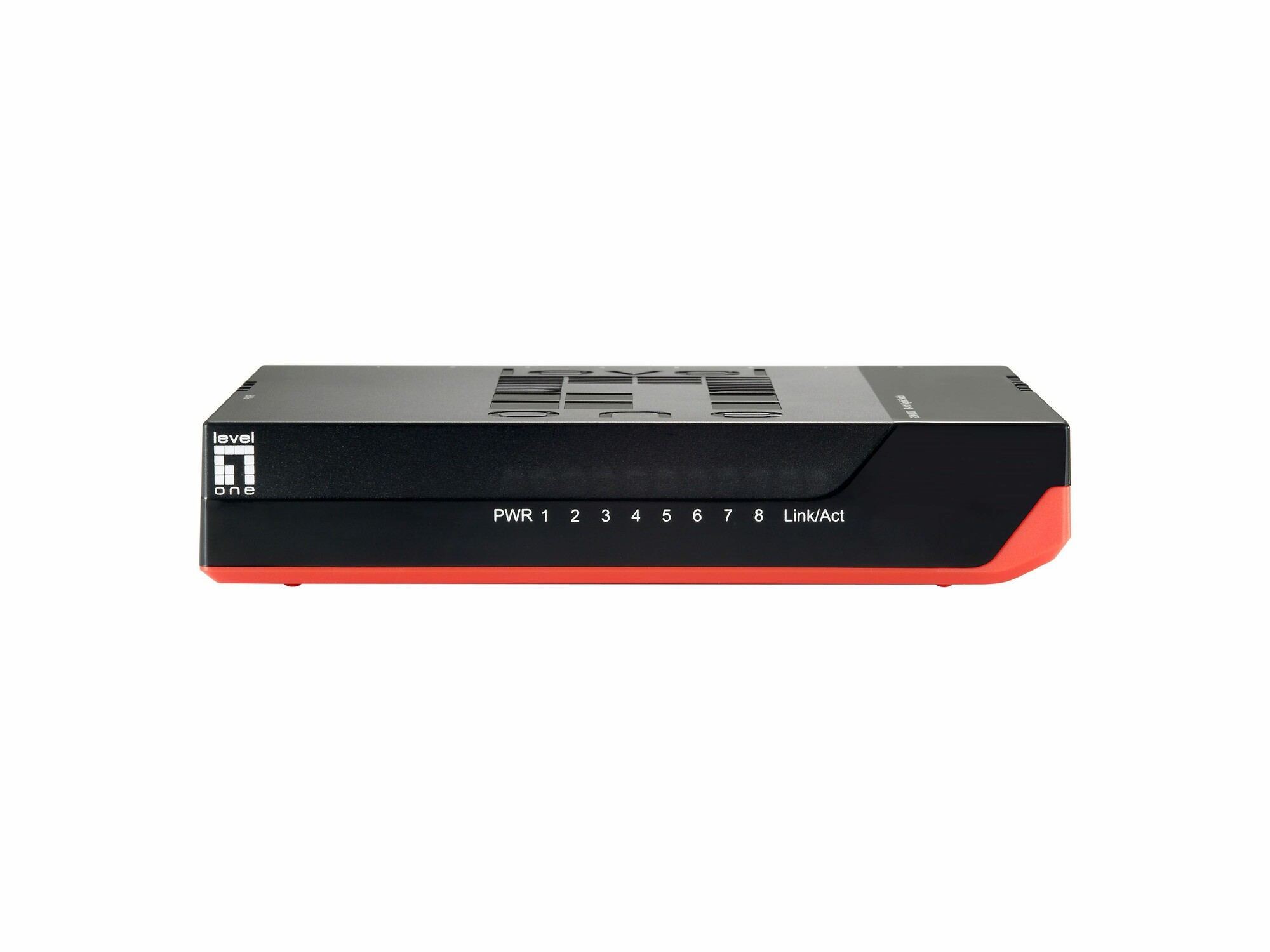

LED indicators
Activity, Link, Power

Product colour
Black, Red

Rack mounting
No

Stackable
No

Wall mountable
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Switch type
Unmanaged

Network

10G support
No

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T

Flow control support
Yes

Full duplex
Yes

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

Operational conditions

Operating relative humidity (H-H)
5 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging data

AC adapter included
Yes

Package depth
92 mm

Package height
92 mm

Package type
Box

Package weight
300 g

Package width
142 mm

Quick start guide
Yes

Performance

Flash memory
1024 MB

Ports & interfaces

Gigabit Ethernet (copper) ports quantity
8

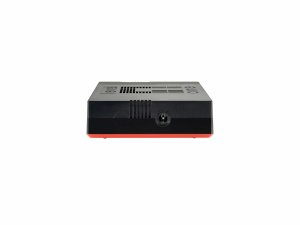

Power connector
DC-in jack

Switch Number of Ports
8

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

Input current
1 A

Power consumption (typical)
3 W

Power supply included
No

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Weight & dimensions

Depth
89 mm

Height
27 mm

Weight
135 g

Width
149.5 mm

Description

LevelOne 8-Port Gigabit Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8192 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Wall mountable

Unmanaged
Basic switching RJ-45 Ethernet ports quantity: 8
10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table: 8192 entries Switching capacity: 16 Gbit/s
8 Gigabit Ethernet ports
1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
Supports 8K MAC address auto-learning and auto-aging
9K jumbo frames to increase data transfer rates
IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
Provides wall or desktop mounting
Quick and easy installation
Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
