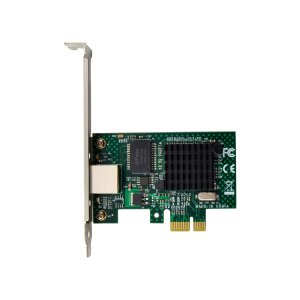

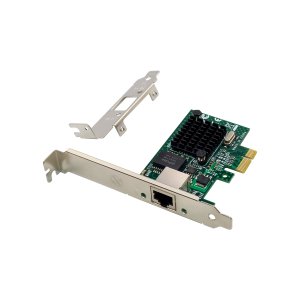

LevelOne Gigabit PCIe Network Card, Low Profile Bracket included, Low Profile Bracket

Name: LevelOne Gigabit PCIe Network Card, Low Profile Bracket included, Low Profile Bracket
Brand: LevelOne
SKU: GNC-0112

SKU: GNC-0112

LevelOne Gigabit PCIe Network Card, Low Profile Bracket included, Low Profile Bracket, Internal, Wired, PCI Express, Ethernet, 1000 Mbit/s, Black, Green, Silver

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
1 Year

SKU
GNC-0112

EAN
4015867183854

Bullet points

Point
10/100/1000Mbps wire speed transmission and reception

802.1Q tag-based VLAN allows network segmentation to enhance performance and security

Built-in Wake-on-LAN feature to startup computers remotely

Compatible with Windows XP/7/10, Server 2003 and Linux

High-speed gigabit network card with PCI Express v1.1 compliant

IEEE 802.3x Flow Control protects against lost packets for reliable data transmission

Supports IEEE 802.1P Layer 2 Priority Queuing for improving traffic flow

Supports single-lane PCI Express for link transmission speed at up to 2.5Gbps

Design

Certification
CE RoHS

Chipset
Broadcom BCM5751

Component for
PC

Internal
Yes

LED indicators
Activity, Link

Product colour
Black, Green, Silver

Logistics data

Harmonized System (HS) code
85176990

Network

Ethernet interface type
Fast Ethernet, Gigabit Ethernet

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Maximum data transfer rate
1000 Mbit/s

Networking standards
IEEE 802.1ab, IEEE 802.3, IEEE 802.3u

Wake-on-LAN ready
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 45 °C

Packaging content

Mounting brackets included
Yes

Quick installation guide
Yes

Resource CD
Yes

Ports & interfaces

Connectivity technology
Wired

Ethernet LAN (RJ-45) ports
1

Host interface
PCI Express

Interface
Ethernet

System requirements

Linux operating systems supported
Yes

Windows operating systems supported
Windows 10, Windows 7, Windows XP

Server operating systems supported
Windows Server 2003

Weight & dimensions

Depth
56 mm

Height
20 mm

Weight
45.6 g

Width
82 mm

Description

LevelOne Gigabit PCIe Network Card, Low Profile Bracket included, Low Profile Bracket. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s. Product colour: Black, Green, Silver

Wired
PCI Express Ethernet
Fast Ethernet, Gigabit Ethernet 1000 Mbit/s
Internal Component for: PC Chipset: Broadcom BCM5751
10/100/1000Mbps wire speed transmission and reception
Built-in Wake-on-LAN feature to startup computers remotely
High-speed gigabit network card with PCI Express v1.1 compliant
Supports single-lane PCI Express for link transmission speed at up to 2.5Gbps
Supports IEEE 802.1P Layer 2 Priority Queuing for improving traffic flow
802.1Q tag-based VLAN allows network segmentation to enhance performance and security
IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
Compatible with Windows XP/7/10, Server 2003 and Linux
