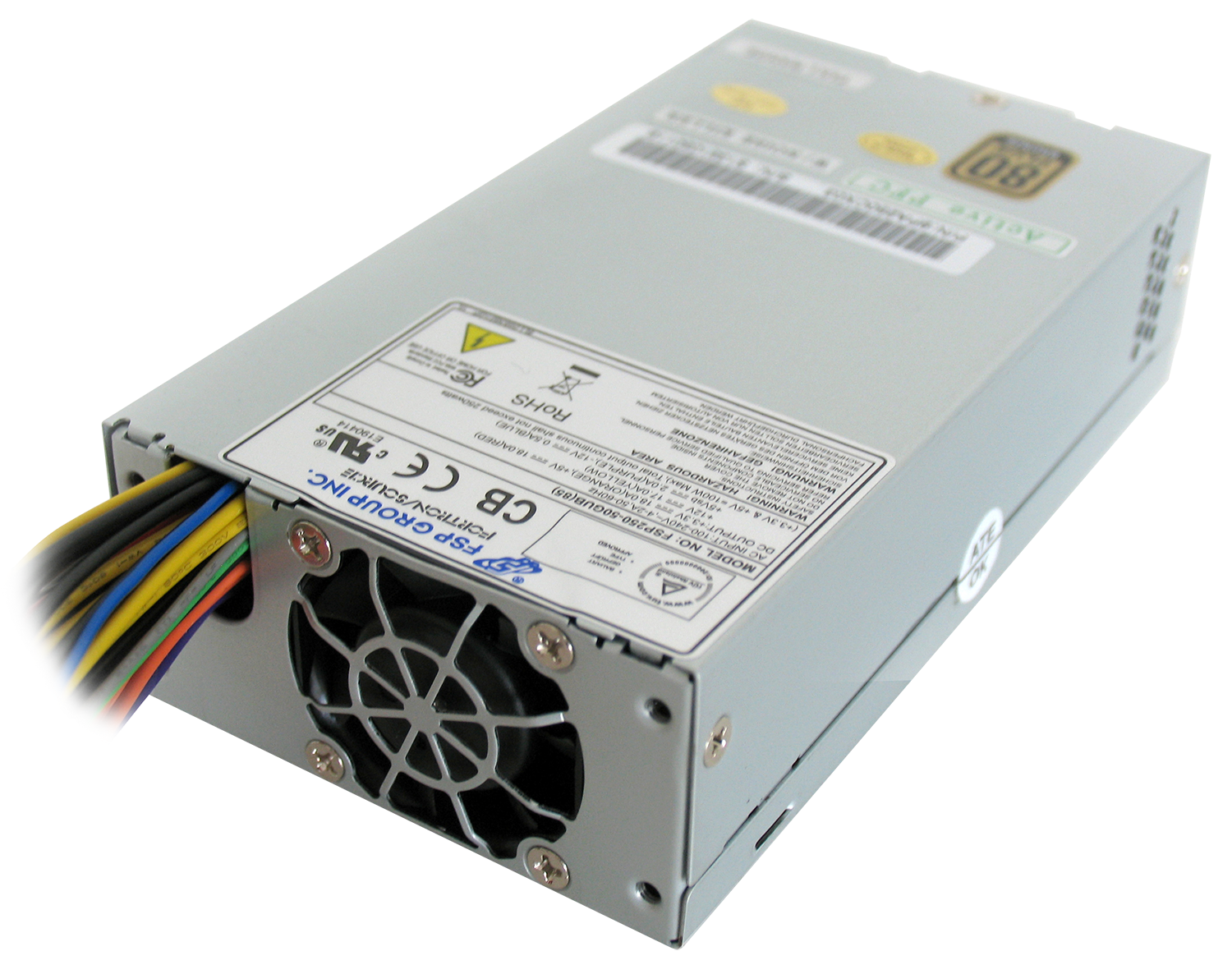

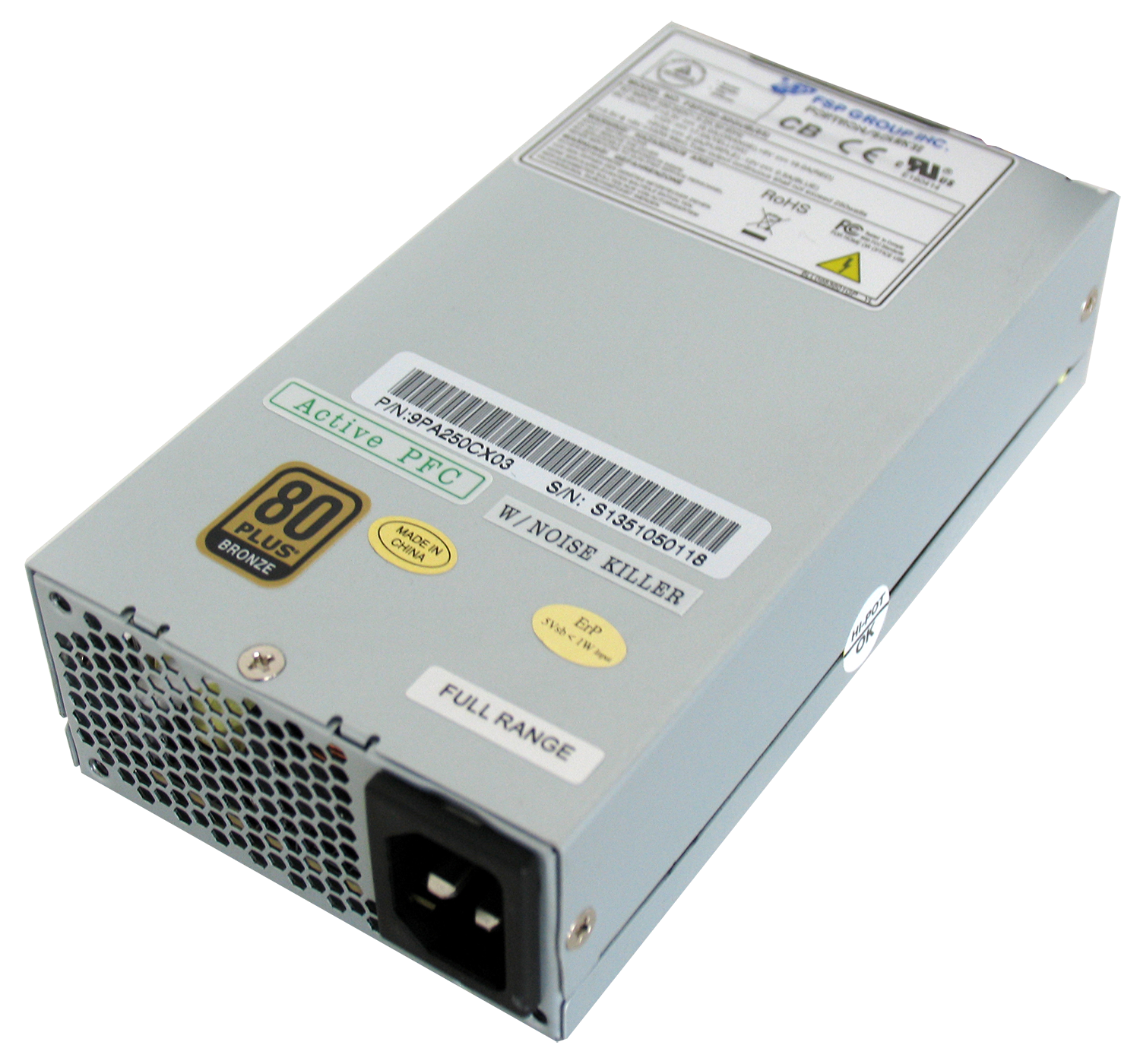

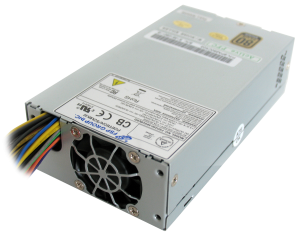

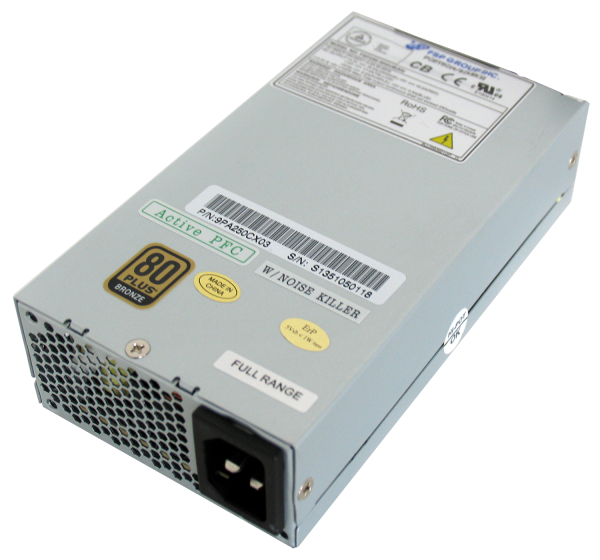

FSP FSP250-50GUB 85+ power supply unit 250 W 24-pin ATX Flex ATX Grey
Roll over image to zoom inClick to Open expanded view
FSP FSP250-50GUB 85+ power supply unit 250 W 24-pin ATX Flex ATX Grey
FSP FSP250-50GUB 85+ power supply unit 250 W 24-pin ATX Flex ATX Grey

FSP FSP250-50GUB 85+ power supply unit 250 W 24-pin ATX Flex ATX Grey

SKU: 9PA250CX03
FSP FSP250-50GUB 85+, 250 W, 90 - 264 V, Active, 59.4 W, 204 W, 90 W
Specifications
More Information
PDF

Product Properties

  • Manufacturer
  • FSP
  • Warranty
  • 1 Year
  • SKU
  • 9PA250CX03
  • EAN
  • 5050914871789
  • Bullet points
  • Design
  • Logistics data
  • Operational conditions
  • Other features
  • Frequency tolerance
  • 5%
  • Performance
  • Ports & interfaces
  • CPU P4 connector (4-pin)
  • 1
  • Floppy drive power connector
  • 1
  • Number of SATA power connectors
  • 3
  • Peripheral (Molex) power connectors (4-pin)
  • 2
  • Power
  • Combined power (-12V)
  • 6 W
  • Max output current (+12V)
  • 17 A
  • Max output current (+3.3V)
  • 18 A
  • Max output current (+5V)
  • 18 A
  • Max output current (+5Vsb)
  • 2 A
  • Power Factor Correction (PFC) type
  • Active
  • Technical details
  • Compliance certificates
  • RoHS
  • Weight & dimensions

Description

FSP FSP250-50GUB 85+. Total power: 250 W, AC input voltage: 90 - 264 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: Flex ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Grey, Cooling type: Active, Fan diameter: 4 cm. Width: 80 mm, Depth: 150 mm, Height: 40 mm
  • 250 W 90 - 264 V
  • Motherboard power connector: 24-pin ATX
  • PC Flex ATX 80 PLUS Bronze
  • Active 4 cm
  • Grey
  • 80 PLUS® Bronze certified (115V)
  • Full Range & Active PFC
  • Low ripple & noise
  • OVP, UVP, OCP, OPP and SCP protection
  • Double ball bearing fan
  • Flex ATX
