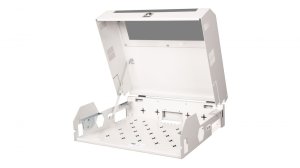

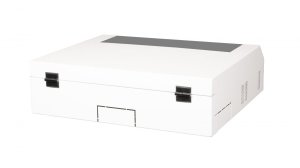

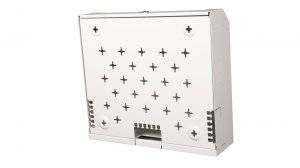

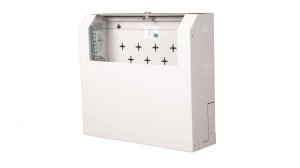

Equip Slim Flex 19' Cabinet, 5U, RAL7035 Grey

Roll over image to zoom inClick to Open expanded view

Equip Slim Flex 19' Cabinet, 5U, RAL7035 Grey

Name: Equip Slim Flex 19' Cabinet, 5U, RAL7035 Grey
Brand: LevelOne
SKU: 280402

SKU: 280402

Log In to View Pricing

Equip Slim Flex 19' Cabinet, 5U, RAL7035 Grey, Wall mounted rack, 2U/3U, 30 kg, Key lock, Rack rails, 8.5 kg

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
2 Years

SKU
280402

EAN
4015867232606

Bullet points

Point
3U+2U cabinet, designed for optimal performance in every space

Mountable Network Cabinet

Ships preassembled for easy setup at your location

The cabinet comes with a robust steel frontdoor to prioritize security and long-lasting durability

Features

Adjustable depth
Yes

Adjustable feet
No

Adjustable stand
Yes

Assembly required
No

Back door construction
Steel

Back door key lock
No

Built-in UPS
No

Cable management
No

Castor wheels
No

Cooling type
Passive

Door opening angle
80°

Frame type
Closed

Front door construction
Steel

Front door key lock
Yes

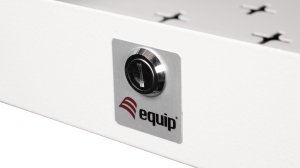

Key lock
Yes

Main PDU
No

Material
Steel

Maximum weight capacity
30 kg

Monitoring
No

Mounting hole shape
Square

Preassembled
Yes

Product colour
Light grey

Product design
2-post

Rack capacity
2U/3U

Rack rail thickness
1.5 mm

Rack rails
Yes

Removable back door
No

Removable front door
No

Removable side panels
No

Side panel construction
Steel

Side panel key lock
No

Side panels included
No

Soundproof
No

Stabilising foot screw
No

Type
Wall mounted rack

Logistics data

Country of origin
Turkey

Harmonized System (HS) code
853710980019

Other features

Layers per pallet
11 pc(s)

Master (outer) cases per pallet
50 pc(s)

Products per pallet
50 pc(s)

Packaging data

Grounding kit
No

Manual
Yes

Mounting kit
Yes

Nuts included
No

Package depth
500 mm

Package height
160 mm

Package width
520 mm

Plinth panel
No

Quick installation guide
Yes

Screws included
No

Temperature sensor
No

Wall mounting kit
Yes

Technical details

Pallet gross weight
541 kg

Pallet net height
110 cm

Pallet net length
130 cm

Pallet net weight
16 kg

Pallet net width
191 cm

Total carbon footprint
1.4535 kg of CO2e

Weight & dimensions

Depth
475 mm

Height
475 mm

Inner height
15.5 cm

Weight
8.5 kg

Width
500 mm

Description

Equip Slim Flex 19' Cabinet, 5U, RAL7035 Grey. Type: Wall mounted rack, Rack capacity: 2U/3U, Maximum weight capacity: 30 kg, Key lock, Rack rails. Weight: 8.5 kg. Product colour: Light grey

2U/3U Wall mounted rack 30 kg
Frame type: Closed 2-post
Steel
Light grey
3U+2U cabinet, designed for optimal performance in every space
Mountable Network Cabinet
Ships preassembled for easy setup at your location
The cabinet comes with a robust steel frontdoor to prioritize security and long-lasting durability
