Equip Pro Mount 19' Cabinet, 09U, 600X450MM, RAL7035 Grey

Roll over image to zoom inClick to Open expanded view

Equip Pro Mount 19' Cabinet, 09U, 600X450MM, RAL7035 Grey

Name: Equip Pro Mount 19' Cabinet, 09U, 600X450MM, RAL7035 Grey
Brand: LevelOne
SKU: 280113

SKU: 280113

Log In to View Pricing

Equip Pro Mount 19' Cabinet, 09U, 600X450MM, RAL7035 Grey, Wall mounted rack, 9U, Key lock, Rack rails, 17.6 kg, Light grey

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
2 Years

SKU
280113

EAN
4015867232224

Bullet points

Point
600X450MM Mountable Network Cabinet

9U cabinet, designed for optimal performance in every space

Ships preassembled for easy setup at your location

Sidepanels are removable

Features

Adjustable depth
Yes

Adjustable feet
No

Adjustable stand
Yes

Assembly required
No

Back door construction
Steel

Back door key lock
No

Built-in UPS
No

Cable management
No

Castor wheels
No

Cooling type
Passive

Door opening angle
210°

Frame type
Closed

Front door construction
Tempered glass

Front door key lock
Yes

Key lock
Yes

Main PDU
No

Material
Steel

Monitoring
No

Mounting hole shape
Square

Preassembled
Yes

Product colour
Light grey

Product design
2-post

Rack capacity
9U

Rack rail thickness
1.5 mm

Rack rails
Yes

Removable back door
No

Removable front door
Yes

Removable side panels
Yes

Side panel construction
Steel

Side panel key lock
No

Side panels included
Yes

Soundproof
No

Stabilising foot screw
No

Type
Wall mounted rack

Logistics data

Country of origin
Turkey

Harmonized System (HS) code
853710980019

Other features

Layers per pallet
1 pc(s)

Master (outer) cases per pallet
20 pc(s)

Products per pallet
20 pc(s)

Packaging data

Grounding kit
Yes

Manual
Yes

Mounting kit
Yes

Number of nuts
8

Number of screws
8

Nuts included
Yes

Package depth
520 mm

Package height
550 mm

Package width
2400 mm

Plinth panel
No

Quick installation guide
Yes

Screws included
Yes

Temperature sensor
No

Wall mounting kit
Yes

Technical details

Pallet gross weight
480 kg

Pallet net length
110 cm

Pallet net weight
160 kg

Pallet net width
2.35 m

Total carbon footprint
3.0096 kg of CO2e

Weight & dimensions

Depth
600 mm

Height
505 mm

Inner depth
44 cm

Inner height
40 cm

Inner width
59.5 cm

Mounting depth (max)
37 cm

Mounting depth (min)
30.5 cm

Size (imperial)
34 cm (13.4")

Weight
17.6 kg

Width
450 mm

Description

Equip Pro Mount 19' Cabinet, 09U, 600X450MM, RAL7035 Grey. Type: Wall mounted rack, Rack capacity: 9U, Key lock, Rack rails. Weight: 17.6 kg. Product colour: Light grey

9U Wall mounted rack
Frame type: Closed 2-post
Removable front door Removable side panels
Steel
Light grey
9U cabinet, designed for optimal performance in every space
600X450MM Mountable Network Cabinet
Ships preassembled for easy setup at your location

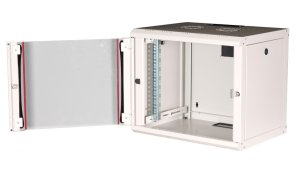

The cabinet comes with a tempered glass frontdoor to provide unmatched strength while maintaining clear visibility
Sidepanels are removable

pdf

Datasheets (Download)
