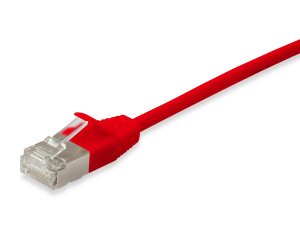

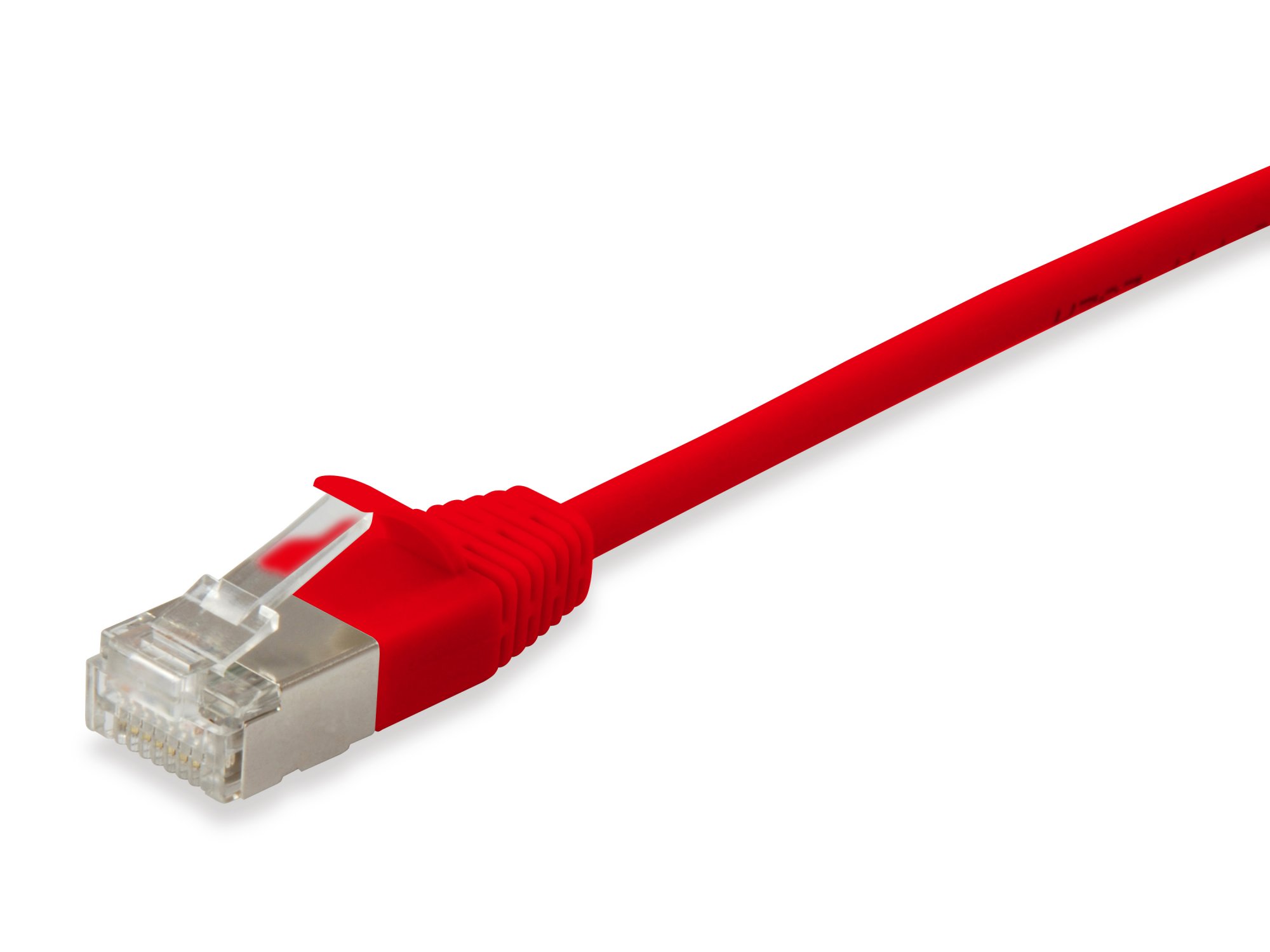

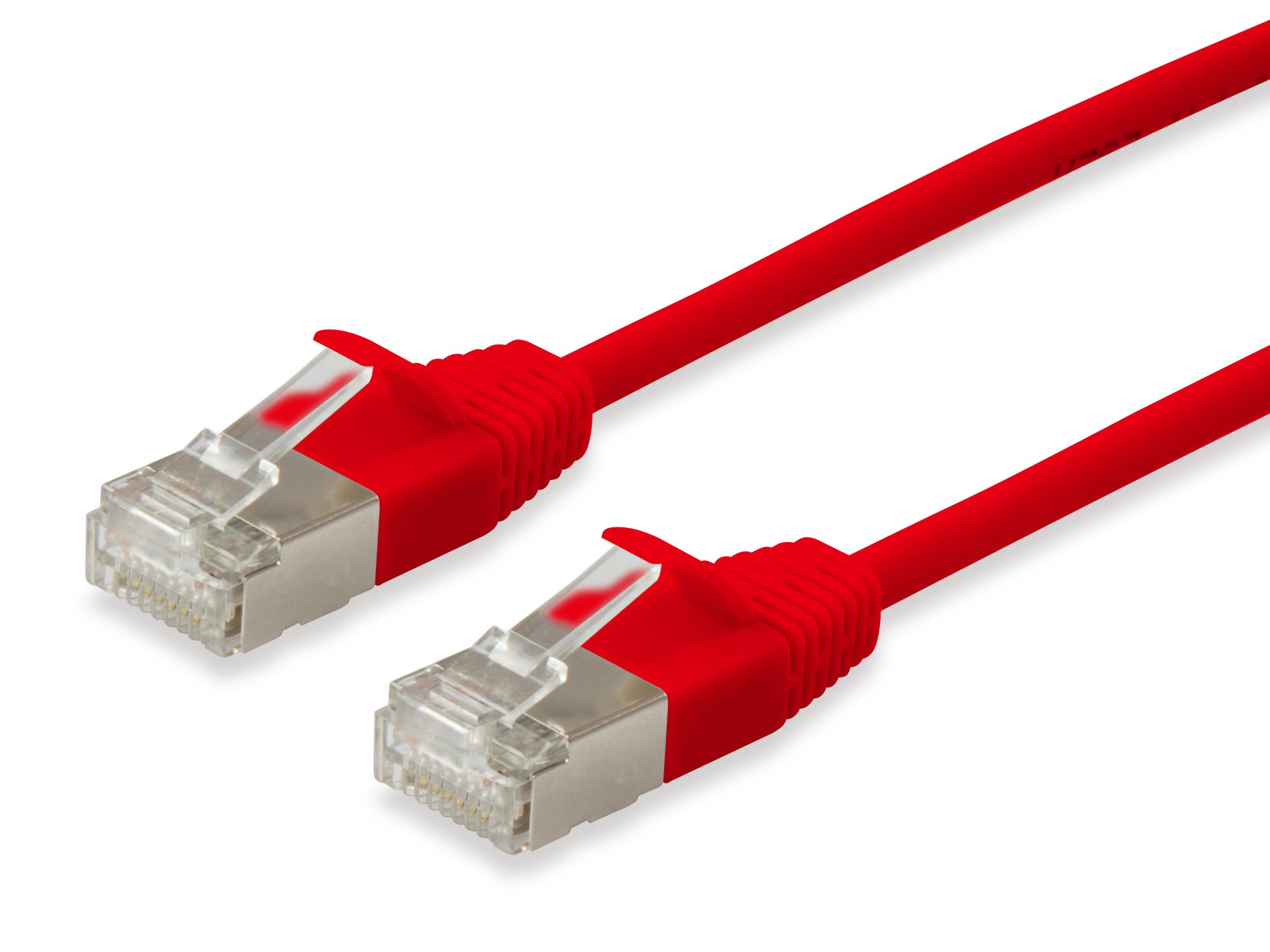

Equip Cat.6A F/FTP Slim Patch Cable, 0.5m, Red

Roll over image to zoom inClick to Open expanded view

Equip Cat.6A F/FTP Slim Patch Cable, 0.5m, Red

Name: Equip Cat.6A F/FTP Slim Patch Cable, 0.5m, Red
Brand: Equip
SKU: 606143

SKU: 606143

Equip Cat.6A F/FTP Slim Patch Cable, 0.5m, Red, 0.5 m, Cat6a, F/FTP (FFTP), RJ-45, RJ-45, Red

hypertec

CE Marking (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Equip

Warranty
2 Years

SKU
606143

EAN
4015867209851

Bullet points

Point
500MHz performance Bandwidth

AWG 32/7

Compliant with ISO/IEC 11801 and EN 50173

Foil and braid shield reduces EMI/RFI interference

Low Smoke Zero Halogen (LSZH/LSOH)

Molded boot with Strain relief

RoHS compliant

Stranded bare copper conductor

Suitable for PoE, PoE+,

Transmission: 10Gbit

Ultra slim, 3.8 mm diameter

Features

AWG wire size
32/7

Cable length
0.5 m

Cable shape
Flat

Cable shielding
F/FTP (FFTP)

Cable standard
Cat6a

Cabling technology
10GBase-T

Conductor material
Copper

Conductor type
Stranded

Connector 1
RJ-45

Connector 1 form factor
Straight

Connector 1 gender
Male

Connector 2
RJ-45

Connector 2 form factor
Straight

Connector 2 gender
Male

Connector contacts plating
Gold

Connector shielding
Yes

Country of origin
China

Data transfer rate
10000 Mbit/s

Ethernet interface type

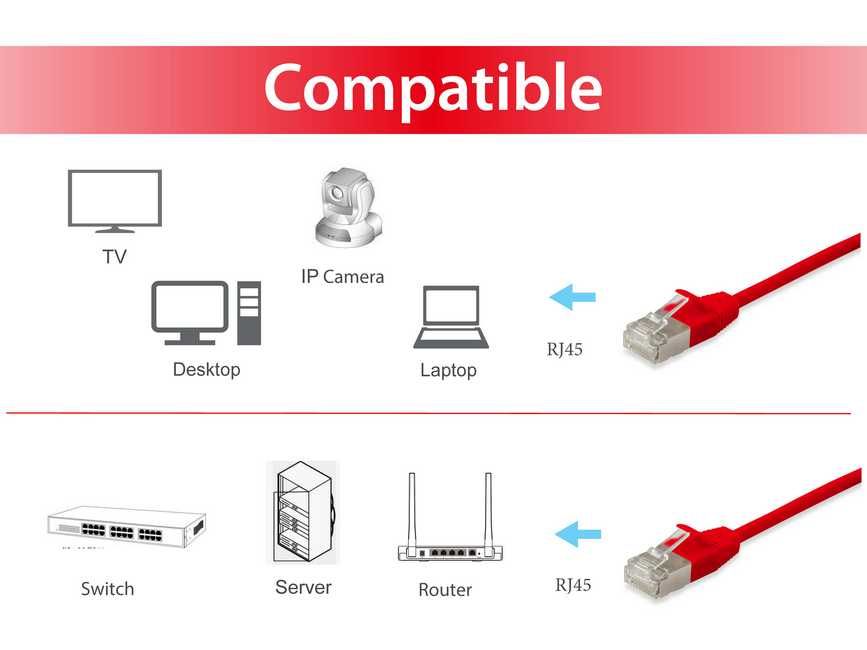

10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

Frequency
500 MHz

Jacket material
Low smoke zero halogen (LSZH)

Molded cable boot
Yes

Networking standards
IEEE 802.3, IEEE 802.5

Plug and Play
Yes

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) type supported
PoE+

Product colour
Red

Logistics data

Harmonized System (HS) code
84733080

Master (outer) case gross weight
5.5 kg

Master (outer) case height
350 mm

Master (outer) case length
290 mm

Master (outer) case width
380 mm

Products per master (outer) case
420 pc(s)

Packaging data

Package depth
12 mm

Package height
180 mm

Package type
Polybag

Package width
140 mm

Quantity per pack
1 pc(s)

Technical details

Compliance certificates
CE, REACH, RoHS

Doesn't contain
Halogen

Sustainability compliance
Yes

Weight & dimensions

Depth
11.7 mm

Height
500 mm

Outer diameter
3.8 mm

Weight
24 g

Width
8.34 mm

Description

Equip Cat.6A F/FTP Slim Patch Cable, 0.5m, Red. Cable length: 0.5 m, Cable standard: Cat6a, Cable shielding: F/FTP (FFTP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 10000 Mbit/s, Product colour: Red

0.5 m
RJ-45 Straight Male
RJ-45 Straight Male
Cat6a F/FTP (FFTP)
10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet 10000 Mbit/s
Power over Ethernet (PoE) Plug and Play
Red
Stranded bare copper conductor
AWG 32/7
Ultra slim, 3.8 mm diameter
500MHz performance Bandwidth
Transmission: 10Gbit
Suitable for PoE, PoE+,
Foil and braid shield Reduces EMI/RFI interference
Molded boot with Strain relief
RoHS compliant
Low Smoke Zero Halogen (LSZH/LSOH)
Compliant with ISO/IEC 11801 and EN 50173
