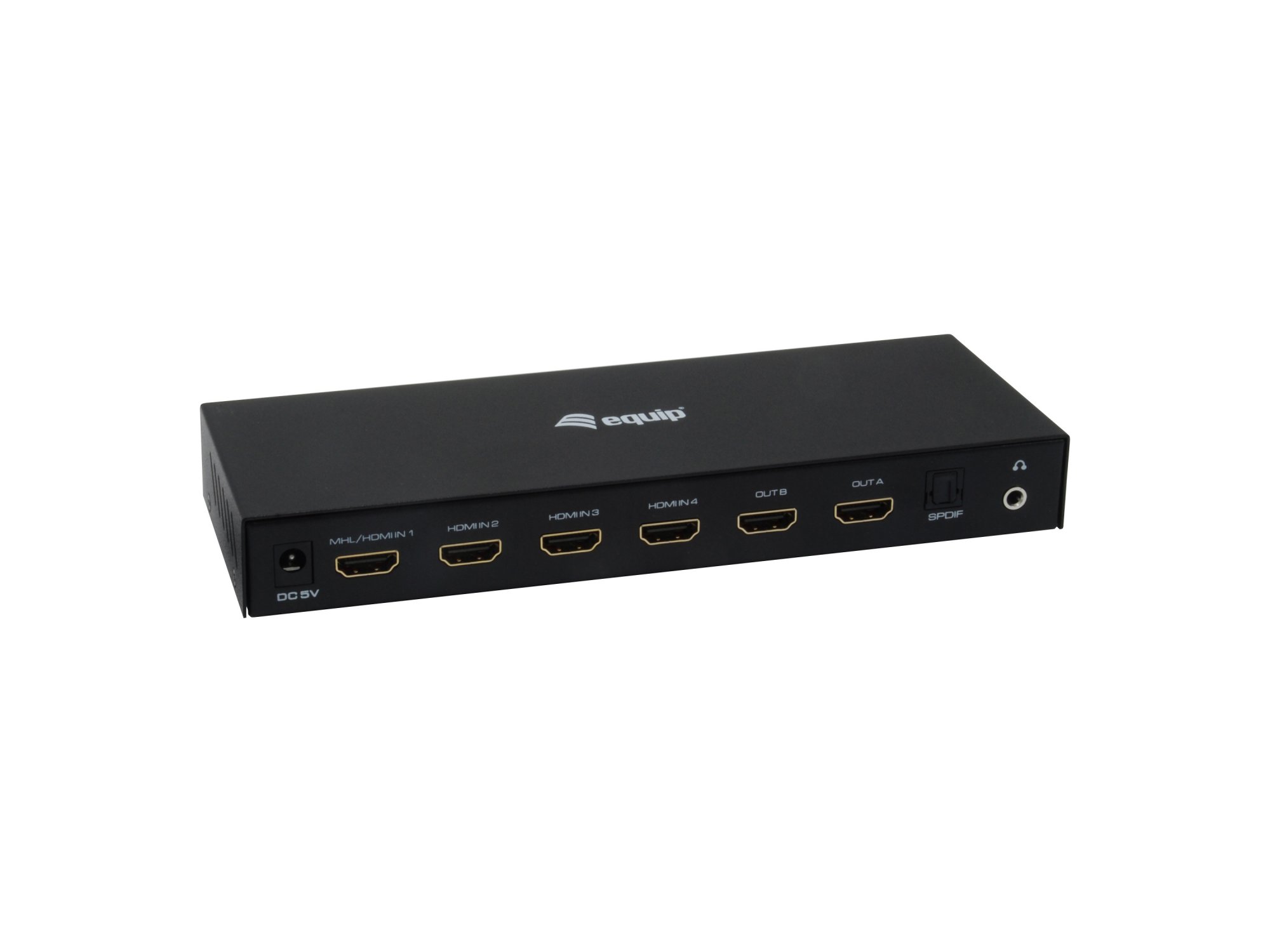

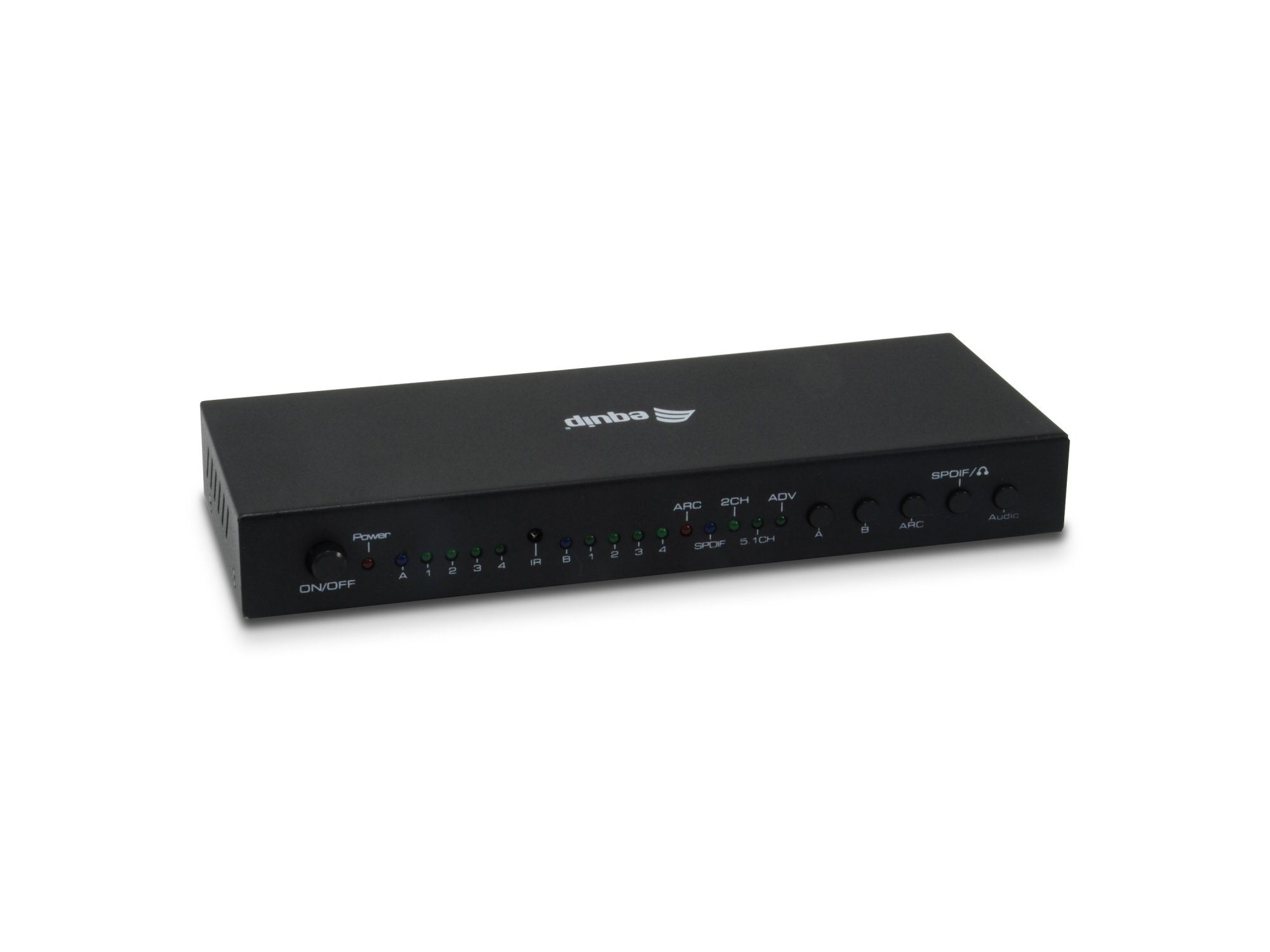

Equip 4x2 HDMI Matrix Switch

Name: Equip 4x2 HDMI Matrix Switch
Brand: Equip
SKU: 33271903

SKU: 33271903

Equip 4x2 HDMI Matrix Switch, HDMI, Black, 25 m, 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 10.2 Gbit/s, 340 MHz

hypertec

Datasheets (Download)

Product manual (Download)

Add to compare

Product Properties

Manufacturer
Equip

Warranty
2 Years

SKU
33271903

EAN
4015867197486

Bullet points

Point
One HDMI Input support MHL/HDMI dual mode input

output A support extra audio output by SPDIF port and 3.5mm Headphone Port

Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

Support deep color 30bit, 36bit, 48bit

Support Signal Retiming

Supports video resolutions up to 4K @ 30Hz

Features

Bandwidth
10.2 Gbit/s

340 MHz

Colour depth
48 bit

Maximum operating distance
25 m

Product colour
Black

Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Logistics data

Harmonized System (HS) code
85176990

Master (outer) case gross weight
12 kg

Master (outer) case height
490 mm

Master (outer) case length
330 mm

Master (outer) case width
310 mm

Products per master (outer) case
20 pc(s)

Operational conditions

Operating relative humidity (H-H)
5 - 90%

Operating temperature (T-T)
-15 - 55 °C

Packaging content

AC adapter included
Yes

Cables included
MHL

Manual
Yes

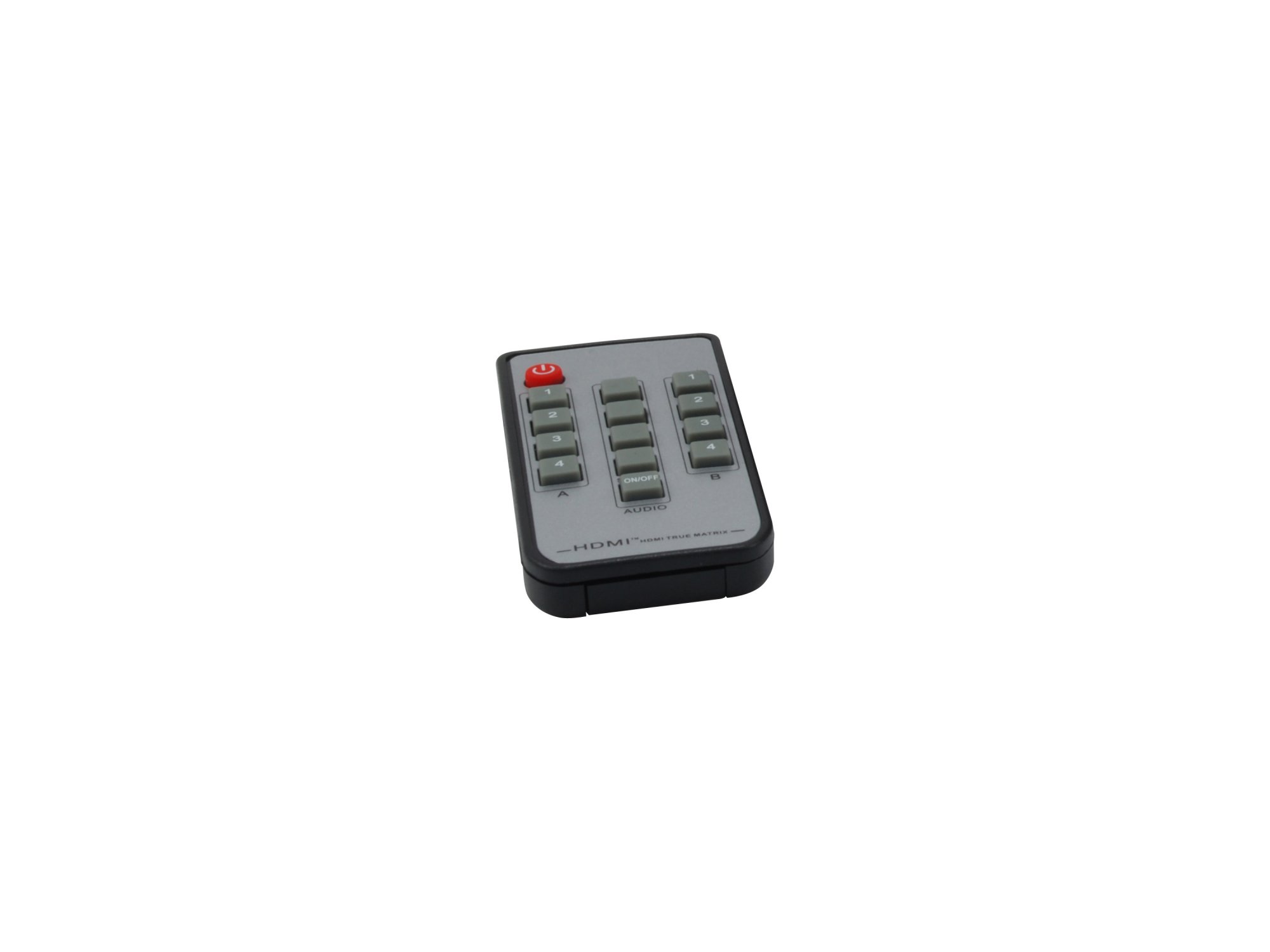

Remote control included
Yes

Packaging data

Package depth
59 mm

Package height
58 mm

Package type
Equip Gift Box

Package weight
560 g

Package width
237 mm

Ports & interfaces

HDMI in
4

Number of HDMI outputs
2

Video port type
HDMI

Power

AC adapter frequency
50/60 Hz

AC adapter input current
1.3 A

AC adapter input voltage
100 - 240 V

AC adapter output current
2 A

AC adapter output voltage
5 V

Technical details

Compliance certificates
RoHS

Weight & dimensions

Depth
75 mm

Height
30 mm

Weight
550 g

Width
199 mm

Description

Equip 4x2 HDMI Matrix Switch. Video port type: HDMI. Product colour: Black, Maximum operating distance: 25 m, Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p. AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz, AC adapter input current: 1.3 A. Width: 199 mm, Depth: 75 mm, Height: 30 mm. Package type: Equip Gift Box, Package width: 237 mm, Package depth: 59 mm

One HDMI Input support MHL/HDMI dual mode input
output A support extra audio output by SPDIF port and 3.5mm Headphone Port
Support deep color 30bit, 36bit, 48bit
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Support Signal Retiming
Supports video resolutions up to 4K @ 30Hz
