Equip 43"-70" Pull-Down TV Wall Mount Bracket

Roll over image to zoom inClick to Open expanded view

Equip 43"-70" Pull-Down TV Wall Mount Bracket

Name: Equip 43"-70" Pull-Down TV Wall Mount Bracket
Brand: Equip
SKU: 650326

SKU: 650326

Equip 43"-70" Pull-Down TV Wall Mount Bracket, 200 x 200 mm, 600 x 400 mm, -5 - -12°, -30 - 30°, Plastic, Steel, Black

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Equip

Warranty
2 Years

SKU
650326

EAN
4015867222959

Bullet points

Point
Built-in level adjustment ensures perfect positioning

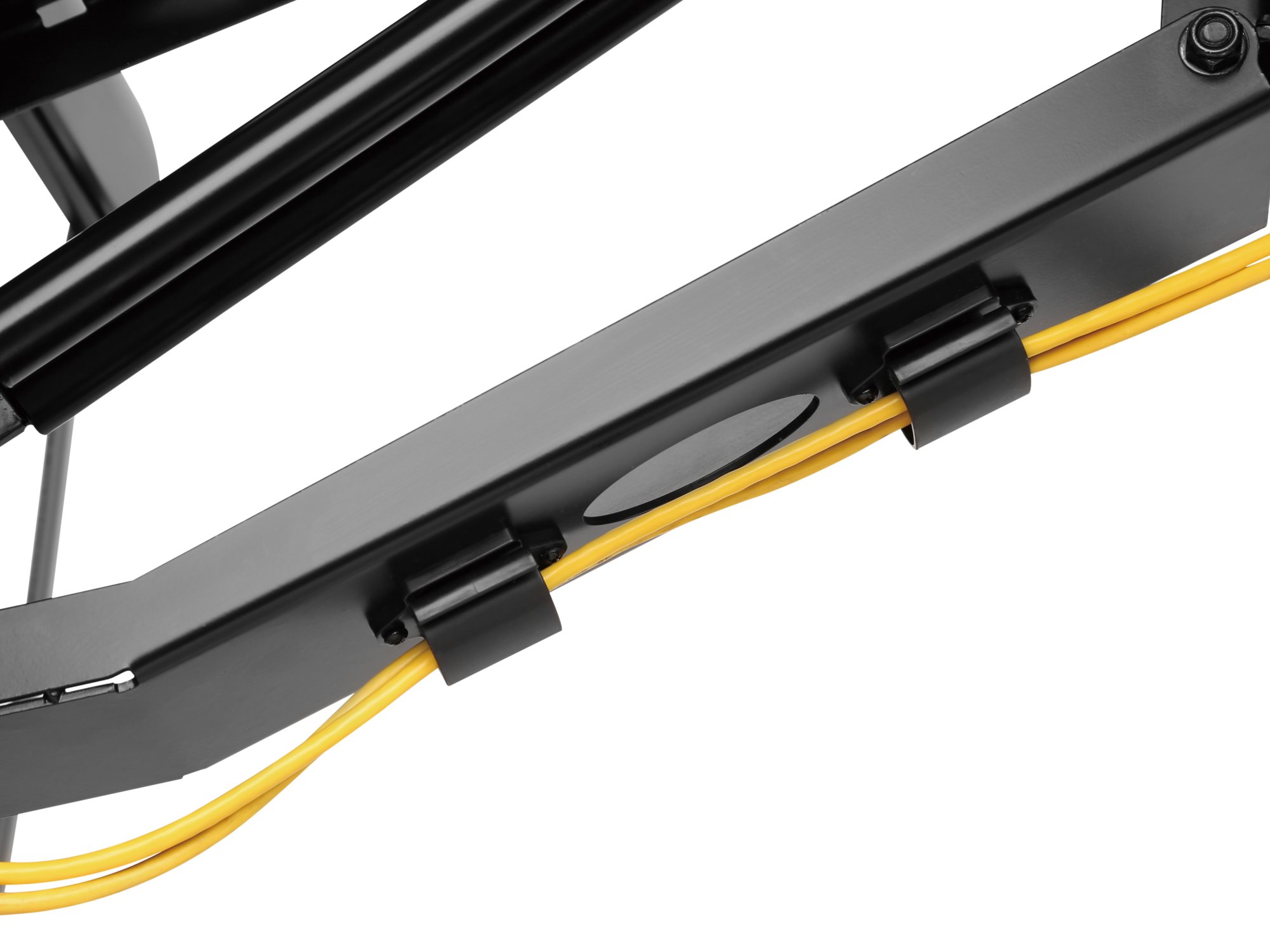

Cable Management: keeps everything organized

Gas Piston Auto-Stabilization

Max. Load Capacity: 35Kg

Max. VESA: 600x400

Swivel and tilt wall mount

VESA standards compliant

Design

Anti-theft function
No

Certification
CE

Housing material
Plastic, Steel

Product colour
Black

Ergonomics

Cable management
Yes

Distance to the wall (max)
48.6 cm

Distance to the wall (min)
9 cm

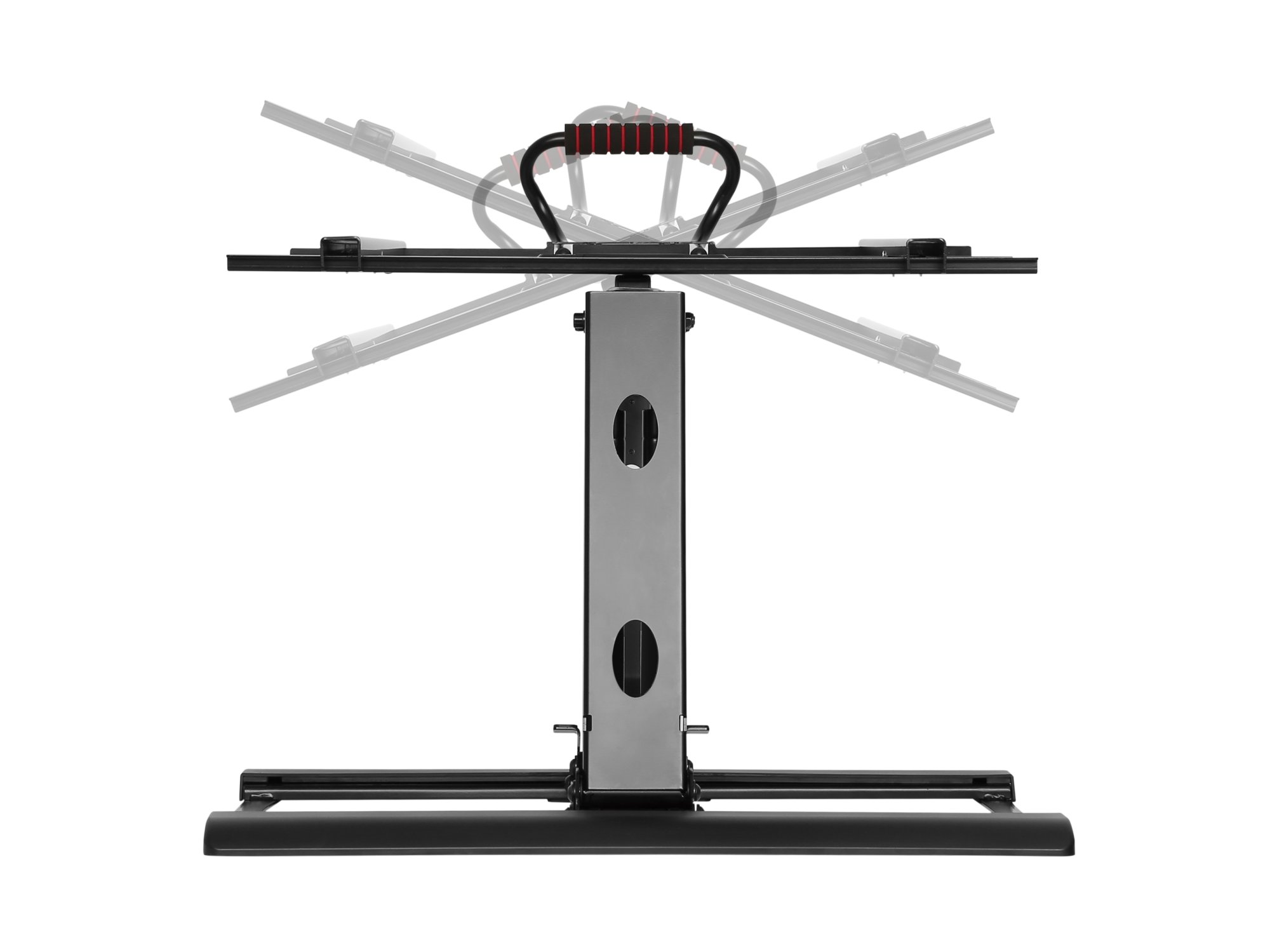

Swivel angle range
-30 - 30°

Tilt adjustment
Yes

Tilt angle range
-5 - -12°

Logistics data

Harmonized System (HS) code
85299097

Master (outer) case gross weight
16.3 kg

Master (outer) case height
770 mm

Master (outer) case length
155 mm

Master (outer) case width
510 mm

Products per master (outer) case
1 pc(s)

Mounting

Maximum screen size
177.8 cm (70")

Maximum VESA mount
600 x 400 mm

Maximum weight capacity
35 kg

Minimum screen size
109.2 cm (43")

Minimum VESA mount
200 x 200 mm

Mounting type
Wall

Number of displays supported
1

Panel mounting interface
200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400

Packaging content

Manual
Yes

Screws included
Yes

Packaging data

Package depth
155 mm

Package height
770 mm

Package type
Box

Package weight
16.3 kg

Package width
510 mm

Technical details

Country of origin
China

Weight & dimensions

Depth (max)
65 cm

Height
915 mm

Weight
14.2 kg

Width
572 mm

Description

Equip 43"-70" Pull-Down TV Wall Mount Bracket. Maximum weight capacity: 35 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -5 - -12°, Swivel angle range: -30 - 30°, Distance to the wall (min): 9 cm, Distance to the wall (max): 48.6 cm. Product colour: Black

Maximum weight capacity: 35 kg
Minimum screen size: 109.2 cm (43") Maximum screen size: 177.8 cm (70") Wall
Minimum VESA mount: 200 x 200 mm Maximum VESA mount: 600 x 400 mm
Number of displays supported: 1
Tilt adjustment
Cable management
Plastic, Steel Black
Max. Load Capacity: 35Kg
Max. VESA: 600x400
VESA standards compliant
Swivel and tilt wall mount
Built-in level adjustment ensures perfect positioning
Gas Piston Auto-Stabilization
Cable Management: keeps everything organized
