Synology DS223 NAS Desktop Realtek RTD1619B 2 GB DDR4 12 TB HDD DiskStation Manager Black

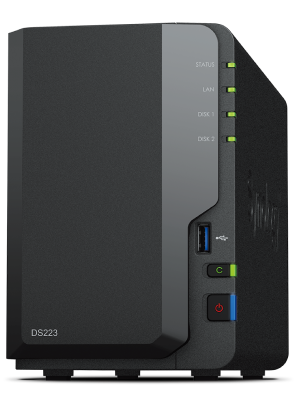

Roll over image to zoom inClick to Open expanded view

Synology DS223 NAS Desktop Realtek RTD1619B 2 GB DDR4 12 TB HDD DiskStation Manager Black

Name: Synology DS223 NAS Desktop Realtek RTD1619B 2 GB DDR4 12 TB HDD DiskStation Manager Black
Brand: Synology
SKU: DS223/12TB-IW

SKU: DS223/12TB-IW

Log In to View Pricing

Synology DS223, NAS, Desktop, Realtek, RTD1619B, 2 GB, DDR4

Add to compare

Product Properties

Manufacturer
Synology

Warranty
2years

Drive
With drives

SKU
DS223/12TB-IW

EAN
5050914223410

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Chassis type
Desktop

Cooling type
Active

Fan diameter
9.2 cm

LED indicators
Yes

Number of fans
1 fan(s)

Product colour
Black

Memory

ECC
No

Internal memory type
DDR4

Memory Installed
2 GB

Network

Ethernet LAN
Yes

iSCSI support
Yes

Supported network protocols
SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

Wake-on-LAN ready
Yes

Operational conditions

Operating relative humidity (H-H)
8 - 80%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-20 - 60 °C

Other features

Certification
FCC, BSMI, EAC, CCC, KC, VCCI, RCM

Compliance certificates
RoHS

Packaging content

Cables included
AC, LAN (RJ-45)

External power adapter
Yes

Power cables quantity
1

Performance

Access Control List (ACL)
Yes

Backup function
Yes

Browser supported
Google Chrome, Firefox, Microsoft Edge, Safari

Built-in FTP server
Yes

Built-in iTunes server
Yes

Device class
Home & Home Office

Noise level
14.6 dB

Number of users
1024 user(s)

On/off switch
Yes

Reset button
Yes

Security algorithms
HTTPS, SSH, SSL/TLS

Snapshot
Yes

Type
NAS

USB copy function
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3

USB port
Yes

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (HDD standby)
4.08 W

Power consumption (typical)
17.343 W

Power supply location
External

Power supply unit (PSU) capacity
60 W

Processor

Number of Cores
4

Processor
RTD1619B

Processor family
Realtek

Processor frequency
1.7 GHz

Processor manufacturer
Realtek

Software

Operating system installed
DiskStation Manager

Storage

Hot-swap drive bays
Yes

Installed storage drive type
HDD

Number of storage drives installed
2

Number of storage drives supported
2

RAID levels
0, 1, JBOD

RAID support
Yes

Storage drive interface
Serial ATA III

Storage drive size
2.5/3.5"

Storage drives installed
Yes

Supported file systems
BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4

Supported storage drive types
HDD & SSD

Total installed storage capacity
12 TB

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Depth
232.7 mm

Height
165 mm

Width
108 mm

Description

Synology DS223. Type: NAS. Chassis type: Desktop. Device class: Home & Home Office. Processor family: Realtek, Processor model: RTD1619B, Processor frequency: 1.7 GHz. Internal memory: 2 GB, Internal memory type: DDR4. Total installed storage capacity: 12 TB, Installed storage drive type: HDD. Operating system installed: DiskStation Manager

Home & Home Office NAS Desktop Black
DiskStation Manager
Total installed storage capacity: 12 TB Number of storage drives supported: 2 HDD & SSD
Realtek RTD1619B 1.7 GHz
2 DDR4
Ethernet LAN iSCSI support Wake-on-LAN ready
Cooling type: Active
60 W
