Dataflex Viewmate monitor arm - desk 652

Name: Dataflex Viewmate monitor arm - desk 652
Brand: Dataflex
SKU: 52.652

SKU: 52.652

Dataflex Viewmate monitor arm - desk 652, Clamp/Bolt-through, 15 kg, 71.4 cm (28.1"), 100 x 100 mm, Height adjustment, Silver

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Dataflex

Warranty
5 Years

SKU
52.652

EAN
805410526528

Bullet points

Point
Comes with a desk clamp mount and bolt-through desk mount

Easy to adjust in height using the clamp lever

Fixed depth

Main components made of steel

Monitor size limit: height 713 mm (28,1")

Monitor: tilt +90°/-90°, swivel +90°/-90°, rotate 360°

Static height adjustment range of 295 mm (11,6")

VESA MIS-D 75 x 75/100 x 100 mm compatible

Weight capacity max. 15 kg (33 lb) per monitor

Design

Housing material
Steel

Product colour
Silver

Ergonomics

Angle of rotation
360°

Height adjustment
Yes

Height adjustment range
0 - 295 mm

Height adjustment type
Manual

Swivel angle
360°

Tilt angle range
-90 - 90°

Turn angle
180°

Logistics data

Harmonized System (HS) code
85299097

Mounting

Desk thickness (max)
7 cm

Desk thickness (min)
5 mm

Maximum screen size
71.4 cm (28.1")

Maximum VESA mount
100 x 100 mm

Maximum weight capacity
15 kg

Minimum VESA mount
75 x 75 mm

Mounting
Clamp/Bolt-through

Mounting type
Desk

Number of displays supported
1

Packaging content

Clamp included
Yes

Technical details

Height adjustment
29.5 cm

Weight & dimensions

Depth
192 mm

Height
572 mm

Package depth
170 mm

Package height
106 mm

Package weight
3.6 kg

Package width
530 mm

Width
110 mm

Description

Dataflex Viewmate monitor arm - desk 652. Mounting: Clamp/Bolt-through, Maximum weight capacity: 15 kg, Maximum screen size: 71.4 cm (28.1"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: -90 - 90°. Product colour: Silver

Maximum weight capacity: 15 kg
Maximum screen size: 71.4 cm (28.1")
Number of displays supported: 1
Clamp/Bolt-through Mounting type: Desk
Maximum VESA mount: 100 x 100 mm
Manual Height adjustment
Steel Silver
Static height adjustment range of 295 mm (11,6")
Fixed depth
Main components made of steel
VESA MIS-D 75 x 75/100 x 100 mm compatible
Monitor: tilt +90°/-90°, swivel +90°/-90°, rotate 360°
Weight capacity max. 15 kg (33 lb) per monitor

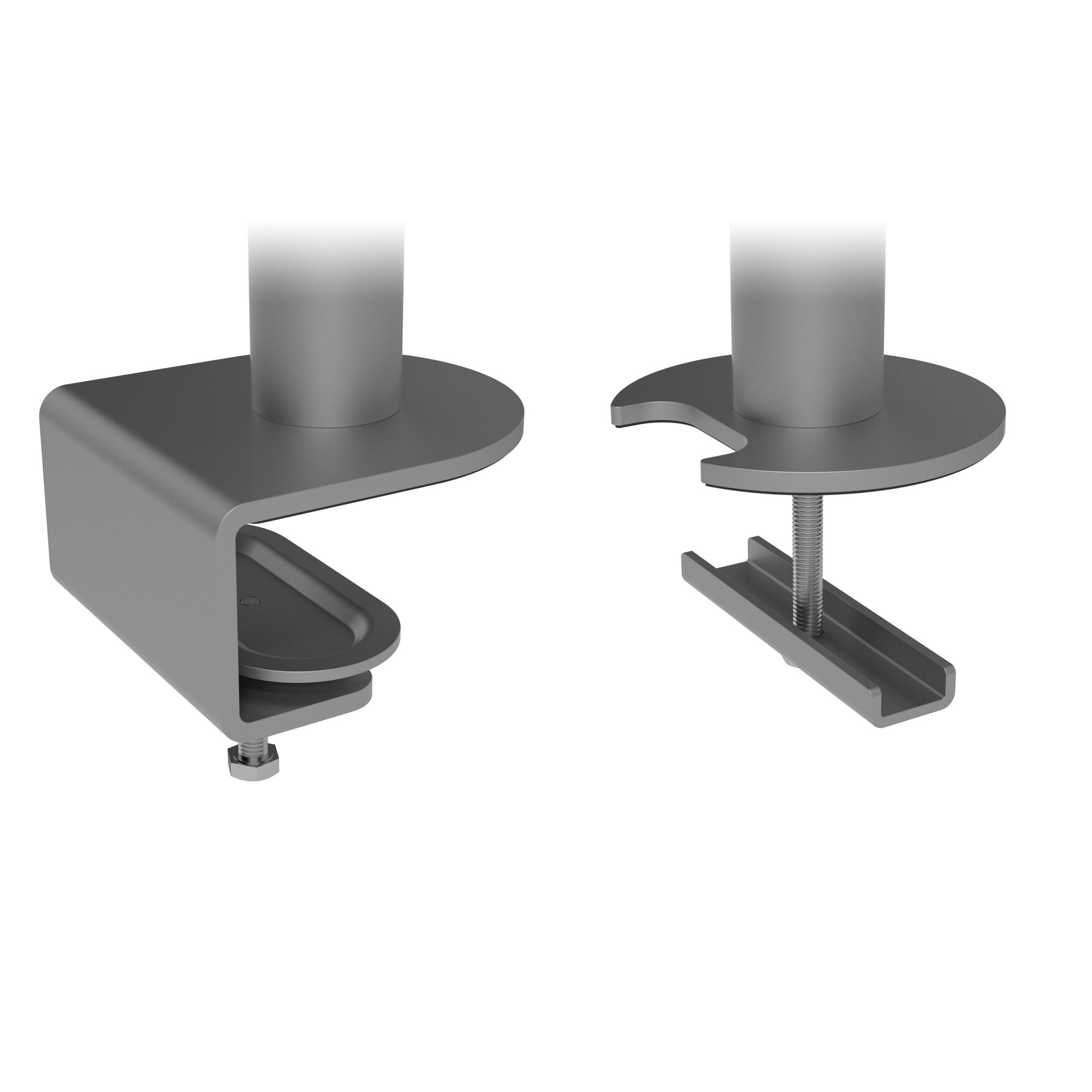

Comes with a desk clamp mount and bolt-through desk mount
Suitable for a desktop thickness of 5 up to 40 mm (0,2" - 1,6") (clamp) or 50 mm (2,0") (bolt through)
Monitor size limit: height 713 mm (28,1")

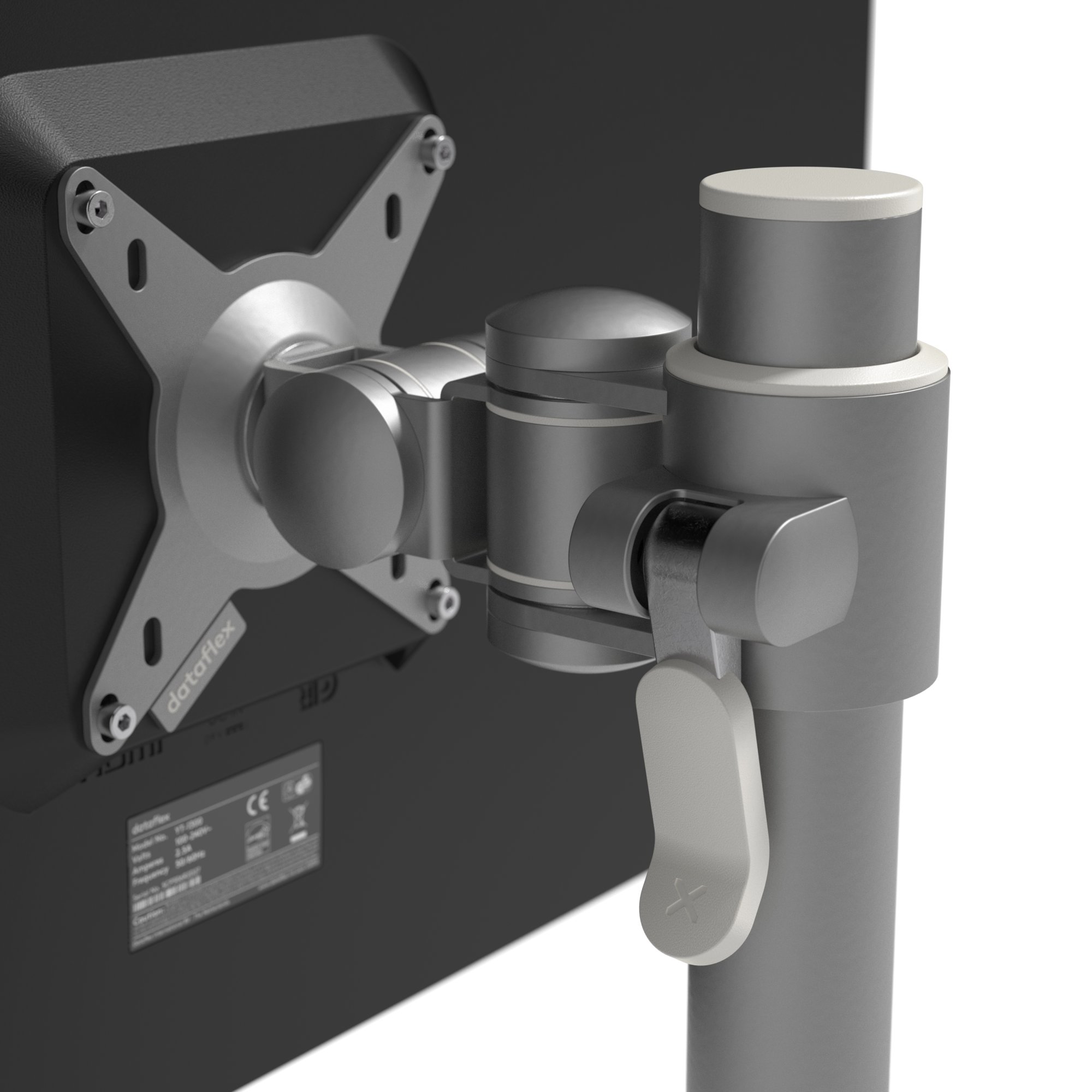

Easy to adjust in height using the clamp lever
