Viewlite plus monitor arm - desk 652, silver-white

Roll over image to zoom inClick to Open expanded view

Dataflex Viewlite plus monitor arm - desk 652

Name: Dataflex Viewlite plus monitor arm - desk 652
Brand: Dataflex
SKU: 58.652

SKU: 58.652

Dataflex Viewlite plus monitor arm - desk 652, Clamp/Bolt-through, 14 kg, 85.1 cm (33.5"), 100 x 100 mm, Height adjustment, Silver, White

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Dataflex

Warranty
5 Years

SKU
58.652

EAN
0805410586522

Bullet points

Point
40% of aluminium content is already recycled

Arm: swivel +65°/-65°

Comes with a desk clamp mount and bolt-through desk mount

Dynamic height adjustment range of 240 mm (9,4")

Fitted with a practical quick-release VESA system

Independent depth adjustment

INTEGRATED CABLE MANAGEMENT

Main components made of aluminium

Monitor rotation lock can be enabled

Monitor size limit: width 990 mm (39,0") - height 850 mm (33,5")

Monitor: tilt +90°/-55°, swivel +90°/-90°, rotate 360°

Swivel limiter pre-set to +65°/-65° (can be set to only +65°)

VESA MIS-D 75 x 75/100 x 100 mm compatible

Weight capacity min. 0 kg - max. 7 kg (0 - 15,4 lb) per monitor

Design

Easy to install
Yes

Housing material
Aluminium

Product colour
Silver, White

Ergonomics

Adjustable depth
Yes

Angle of rotation
360°

Cable management
Yes

Height adjustment
Yes

Height adjustment range
0 - 240 mm

Height adjustment type
Manual

Swivel angle
90°

Swivel angle range
-65 - 65°

Tilt angle range
-55 - 90°

Logistics data

Harmonized System (HS) code
85299097

Mounting

Desk thickness (max)
5 cm

Desk thickness (min)
5 mm

Maximum screen size
85.1 cm (33.5")

Maximum VESA mount
100 x 100 mm

Maximum weight capacity
14 kg

Minimum VESA mount
75 x 75 mm

Monitor height (max)
85 cm

Monitor width (max)
99 cm

Mounting
Clamp/Bolt-through

Mounting type
Desk

Number of displays supported
2

Panel mounting interface
75 x 75,100 x 100 mm

Packaging content

Clamp included
Yes

Manual
Yes

Technical details

Height adjustment
24 cm

Weight & dimensions

Package depth
280 mm

Package height
240 mm

Package weight
7.9 kg

Package width
385 mm

Description

Dataflex Viewlite plus monitor arm - desk 652. Mounting: Clamp/Bolt-through, Maximum weight capacity: 14 kg, Maximum screen size: 85.1 cm (33.5"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -65 - 65°, Tilt angle range: -55 - 90°. Product colour: Silver, White

Maximum weight capacity: 14 kg
Maximum screen size: 85.1 cm (33.5")
Number of displays supported: 2
Clamp/Bolt-through Mounting type: Desk
Maximum VESA mount: 100 x 100 mm
Manual Height adjustment
Cable management Easy to install
Aluminium Silver, White
Dynamic height adjustment range of 240 mm (9,4")
Independent depth adjustment
Integrated cable management
Main components made of aluminium
40% of aluminium content is already recycled
VESA MIS-D 75 x 75/100 x 100 mm compatible
Monitor: tilt +90°/-55°, swivel +90°/-90°, rotate 360°
Arm: swivel +65°/-65°
Swivel limiter pre-set to +65°/-65° (can be set to only +65°)
Weight capacity min. 0 kg - max. 7 kg (0 - 15,4 lb) per monitor

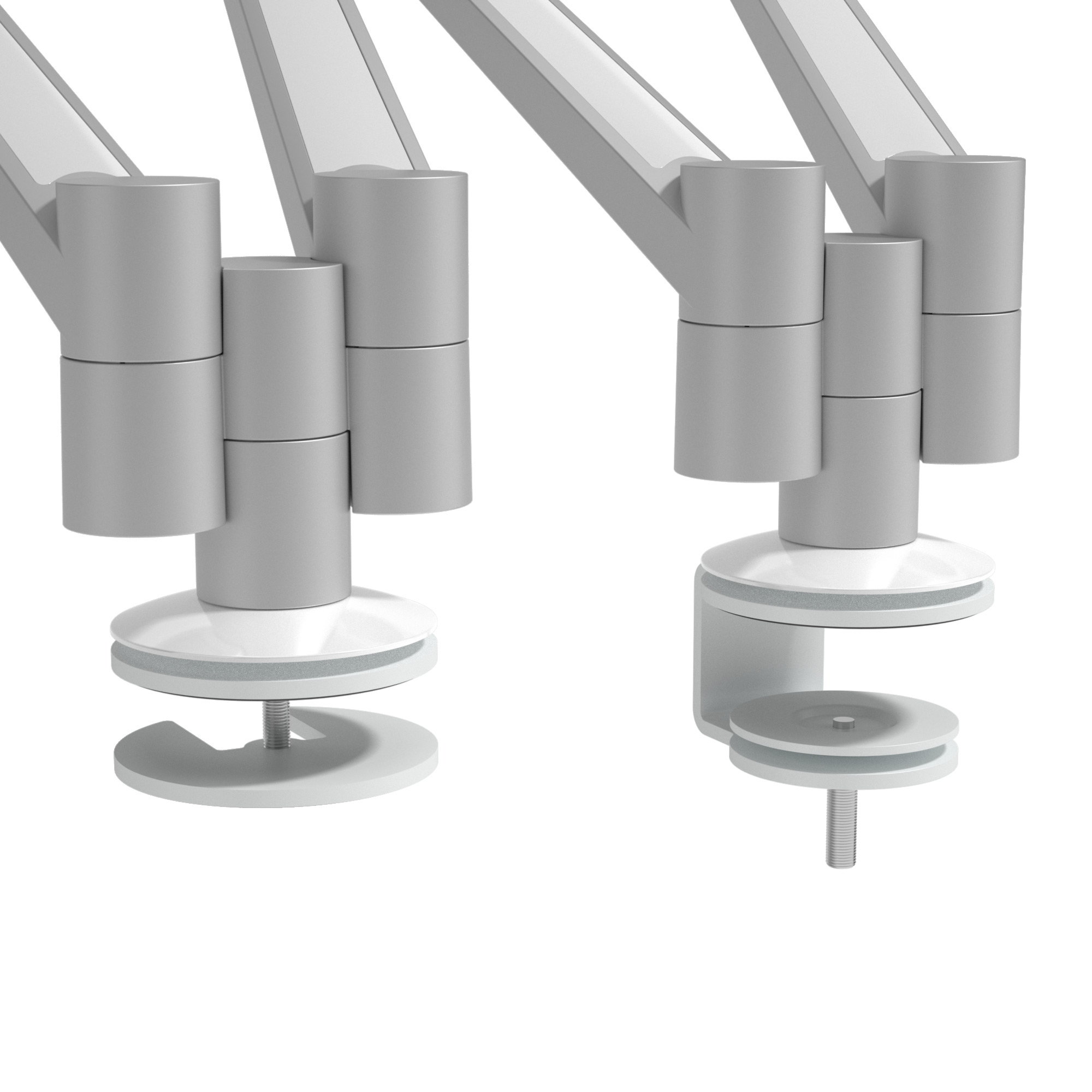

Comes with a desk clamp mount and bolt-through desk mount
Suitable for a desktop thickness of 5 up to 40 mm (0,2" - 1,6") (clamp) or 50 mm (2,0") (bolt through)
Monitor size limit: width 990 mm (39,0") - height 850 mm (33,5")
Fitted with a practical quick-release VESA system
Monitor rotation lock can be enabled
