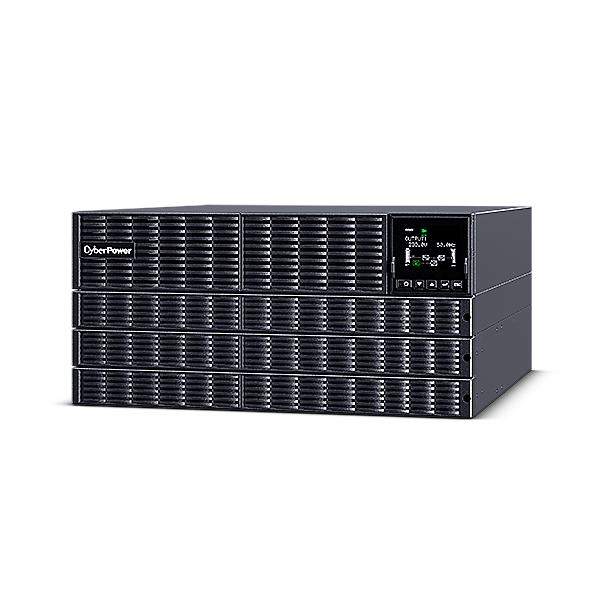

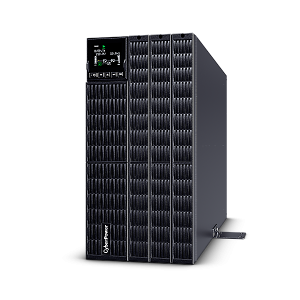

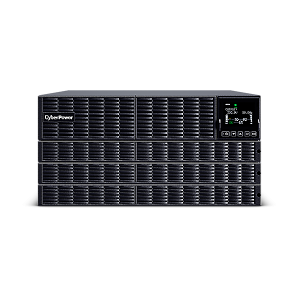

CyberPower OLS6KERT5UM uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W 8 AC outlet(s)

Roll over image to zoom inClick to Open expanded view

CyberPower OLS6KERT5UM uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W 8 AC outlet(s)

Name: CyberPower OLS6KERT5UM uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W 8 AC outlet(s)
Brand: CyberPower
SKU: OLS6KERT5UM

SKU: OLS6KERT5UM

Log In to View Pricing

CyberPower OLS6KERT5UM, Double-conversion (Online), 6 kVA, 6000 W, Pure sine, 110 V, 300 V

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
CyberPower

Warranty
2 Years

SKU
OLS6KERT5UM

EAN
4711027791289

Battery

Battery recharge time
4 h

Battery technology
Sealed Lead Acid (VRLA)

Charging current
4 A

Number of batteries supported
10

Typical backup time at full load
7.6 min

Typical backup time at half load
23 min

Design

Certification
CE, RoHS

Display type
LCD

Form factor
Rackmount/Tower

Housing material
Metal

LED indicators
Operation

Product colour
Black

Rack capacity
5U

Features

Audible alarm modes
Alarm when on battery, Fault, Low battery alarm, Overload alarm

Audible alarm(s)
Yes

Country of origin
China

Crest factor
3:1

ECO mode
Yes

Emergency Power Off (EPO)
Yes

EMI/RFI noise filtering
Yes

Input frequency
50/60 Hz

Input operation voltage (max)
300 V

Input operation voltage (min)
110 V

Input power factor
0.99

Maximum current
27.3 A

Output frequency
50/60 Hz

Output operation voltage (max)
240 V

Output operation voltage (min)
208 V

Output power
6000 W

Output power capacity
6 kVA

Output voltage Total Harmonic Distortion (THD)
2%

Power factor
1

Power protection features
Overload

Surge energy rating
1335 J

Surge protection
Yes

UPS topology
Double-conversion (Online)

Waveform
Pure sine

Logistics data

Harmonized System (HS) code
8504408690

Operational conditions

Non-operating altitude
0 - 15000 m

Operating altitude
0 - 1000 m

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-15 - 45 °C

Packaging data

Cables included
USB cable

Ports & interfaces

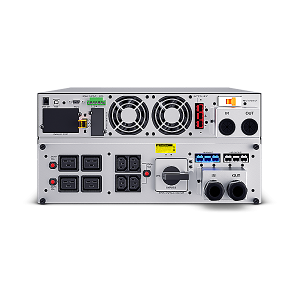

AC outlet types
C13 coupler, C19 coupler

AC outlets quantity
8 AC outlet(s)

Serial interface type
RS-232

Serial ports quantity
1

USB 2.0 ports quantity
1

USB port
Yes

Weight & dimensions

Depth
661 mm

Height
213.5 mm

Package depth
800 mm

Package height
650 mm

Package weight
79 kg

Package width
600 mm

Weight
68 kg

Width
433 mm

Description

CyberPower OLS6KERT5UM. UPS topology: Double-conversion (Online), Output power capacity: 6 kVA, Output power: 6000 W. AC outlet types: C13 coupler, C19 coupler, AC outlets quantity: 8 AC outlet(s), Serial interface type: RS-232. Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 7.6 min, Typical backup time at half load: 23 min. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Metal. Width: 433 mm, Depth: 661 mm, Height: 213.5 mm

Double-conversion (Online)
6 kVA 6000 W
Waveform: Pure sine
8 AC outlet(s)
Sealed Lead Acid (VRLA)
Rackmount/Tower Black
