CyberPower OL6KERTHD uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W 7 AC outlet(s)

Roll over image to zoom inClick to Open expanded view

CyberPower OL6KERTHD uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W 7 AC outlet(s)

Name: CyberPower OL6KERTHD uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W 7 AC outlet(s)
Brand: CyberPower
SKU: OL6KERTHD

SKU: OL6KERTHD

Log In to View Pricing

CyberPower OL6KERTHD, Double-conversion (Online), 6 kVA, 6000 W, Pure sine, 200 V, 240 V

Add to compare

Product Properties

Manufacturer
CyberPower

Warranty
2 Years

SKU
OL6KERTHD

EAN
4712856275919

Battery

Battery recharge time
4 h

Battery technology
Sealed Lead Acid (VRLA)

Hot-swap battery
Yes

Typical backup time at full load
2.4 min

Typical backup time at half load
6.2 min

Design

Certification
CE, EAC, RCM

Control type
Buttons

Display type
LCD

Form factor
Rackmount/Tower

Housing material
Metal

LED indicators
Yes

Product colour
Black, Grey

Rack capacity
2U

Features

Audible alarm modes
Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm

Audible alarm(s)
Yes

Country of origin
China

Crest factor
3:1

ECO mode
Yes

Efficiency (ECO mode)
97%

Emergency Power Off (EPO)
Yes

EMI/RFI noise filtering
Yes

Heat dissipation
1613 BTU/h

Input frequency
50/60 Hz

Input operation voltage (max)
240 V

Input operation voltage (min)
200 V

Input power factor
0.99

Maximum current
32 A

Output frequency
50/60 Hz

Output operation voltage (max)
240 V

Output operation voltage (min)
200 V

Output power
6000 W

Output power capacity
6 kVA

Output power factor
1

Power protection features
Overload

Surge energy rating
2430 J

Surge protection
Yes

Total Harmonic Distortion (THD) (linear load)
3%

Total Harmonic Distortion (THD) (non-linear load)
5%

UPS topology
Double-conversion (Online)

Waveform
Pure sine

Logistics data

Harmonized System (HS) code
8504408690

Operational conditions

Non-operating altitude
0 - 4500 m

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
0 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-5 - 45 °C

Other features

Battery type
RBP0144

Packaging data

Cables included
Serial, USB cable

Manual
Yes

Ports & interfaces

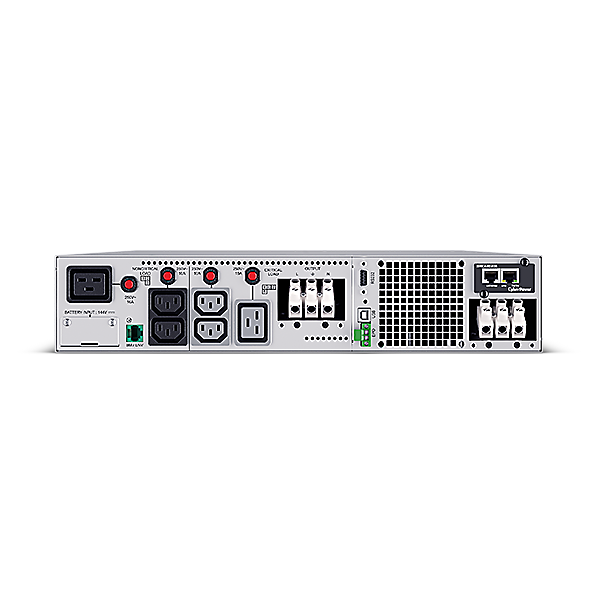

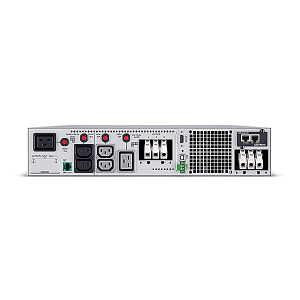

AC outlet types
C13 coupler, C19 coupler, Terminal

AC outlets quantity
7 AC outlet(s)

Emergency Power Off (EPO) connector
Yes

Power plug
Terminal

RS-232 ports
1

Serial interface
Yes

Serial interface type
RS-232

Serial ports quantity
1

USB 2.0 ports quantity
1

USB port
Yes

Technical details

Compliance certificates
CE, EAC, RCM, RoHS

Sustainability certificates
ENERGY STAR

Sustainability compliance
Yes

Weight & dimensions

Depth
720 mm

Height
86.5 mm

Package depth
1100 mm

Package height
335 mm

Package weight
53 kg

Package width
600 mm

Weight
42 kg

Width
433 mm

Description

CyberPower OL6KERTHD. UPS topology: Double-conversion (Online), Output power capacity: 6 kVA, Output power: 6000 W. AC outlet types: C13 coupler, C19 coupler, Terminal, Power plug: Terminal, AC outlets quantity: 7 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 2.4 min, Typical backup time at half load: 6.2 min. Form factor: Rackmount/Tower, Product colour: Black, Grey, Housing material: Metal. Width: 433 mm, Depth: 720 mm, Height: 86.5 mm

Double-conversion (Online)
6 kVA 6000 W
Waveform: Pure sine
7 AC outlet(s)
Sealed Lead Acid (VRLA)
Rackmount/Tower Black, Grey
