C2G USB-C® 11-in-1 Hybrid DisplayLink and DP Alt Mode Triple 4K Docking Station with HDMI®, DisplayPort™, Ethernet, USB, 3.5mm Audio and Power Delivery up to 100W

Roll over image to zoom inClick to Open expanded view

C2G USB-C® 11-in-1 Hybrid DisplayLink and DP Alt Mode Triple 4K Docking Station with HDMI®, DisplayPort™, Ethernet, USB, 3.5mm Audio and Power Delivery up to 100W

Name: C2G USB-C® 11-in-1 Hybrid DisplayLink and DP Alt Mode Triple 4K Docking Station with HDMI®, DisplayPort™, Ethernet, USB, 3.5mm Audio and Power Delivery up to 100W
Brand: C2G
SKU: C2G54538

SKU: C2G54538

Log In to View Pricing

C2G USB-C® 11-in-1 Hybrid DisplayLink and DP Alt Mode Triple 4K Docking Station with HDMI®, DisplayPort™, Ethernet, USB, 3.5mm Audio and Power Delivery up to 100W, Wired, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, 100 W, Black, 10 Gbit/s, 3840 x 2160 pixels

hypertec

Product manual (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
C2G

Warranty
Lifetime

SKU
C2G54538

EAN
7.57121E+11

Bullet points

Network

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Operational conditions

Operating relative humidity (H-H)
0 - 85%

Operating temperature (T-T)
0 - 70 °C

Storage temperature (T-T)
-10 - 55 °C

Packaging content

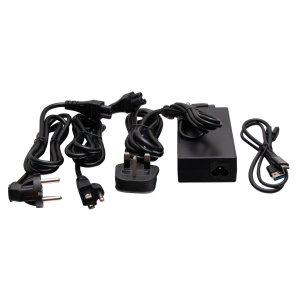

AC adapter included
Yes

Cables included
USB Type-A to USB Type-C, USB Type-C to USB Type-C

Manual
Yes

Packaging data

Quantity per pack
1 pc(s)

Performance

Card reader integrated
No

Country of origin
China

Data transfer rate
10 Gbit/s

Housing material
Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)

Maximum digital resolution
3840 x 2160 pixels

Maximum refresh rate
60 Hz

Number of displays supported
3

Product colour
Black

Ports & interfaces

Connectivity technology
Wired

DC-in jack
Yes

DisplayPorts quantity
2

HDCP
Yes

HDMI ports
3

Headphone outputs
0

Host interface
USB 3.2 Gen 2 (3.1 Gen 2) Type-A

Microphone in
No

USB 2.0 ports quantity
0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1

USB Power Delivery (USB PD)
Yes

USB Power Delivery up to
100 W

Power

AC input voltage
100 - 240 V

Compatible power plug types
EU, UK, US

Output current
4 A

Output voltage
24 V

Power source type
DC

Power supply
130 W

Technical details

Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS

Warranty period
5 year(s)

Weight & dimensions

Depth
85 mm

Height
31.8 mm

Width
191 mm

Description

C2G USB-C® 11-in-1 Hybrid DisplayLink and DP Alt Mode Triple 4K Docking Station with HDMI®, DisplayPort™, Ethernet, USB, 3.5mm Audio and Power Delivery up to 100W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB Power Delivery up to: 100 W. Product colour: Black, Data transfer rate: 10 Gbit/s, Maximum digital resolution: 3840 x 2160 pixels. Power source type: DC, AC input voltage: 100 - 240 V, Power supply: 130 W. Width: 191 mm, Depth: 85 mm, Height: 31.8 mm. Quantity per pack: 1 pc(s)

Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-A
USB Power Delivery (USB PD)
Ethernet LAN
Supports single 4K 60Hz, dual 4K 60Hz, or triple 4K 30Hz video output, for viewing Ultra HD content
Battery labeled front USB-A and USB-C ports support BC 1.2 for enhanced mobile charging and quick data transferring up to 10Gbps
Hard wired Ethernet port for when security requires it or when WiFi™ is not available

pdf

Product manual (Download)

Datasheets (Download)
