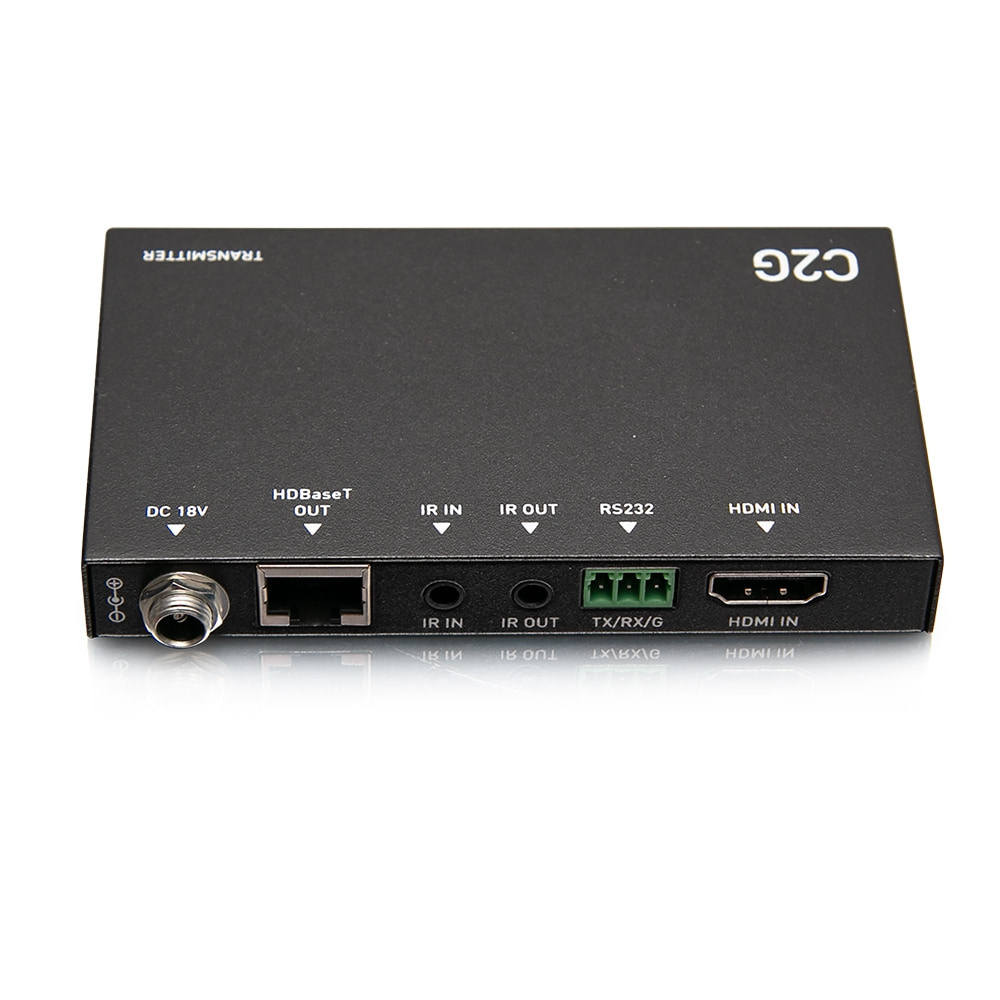

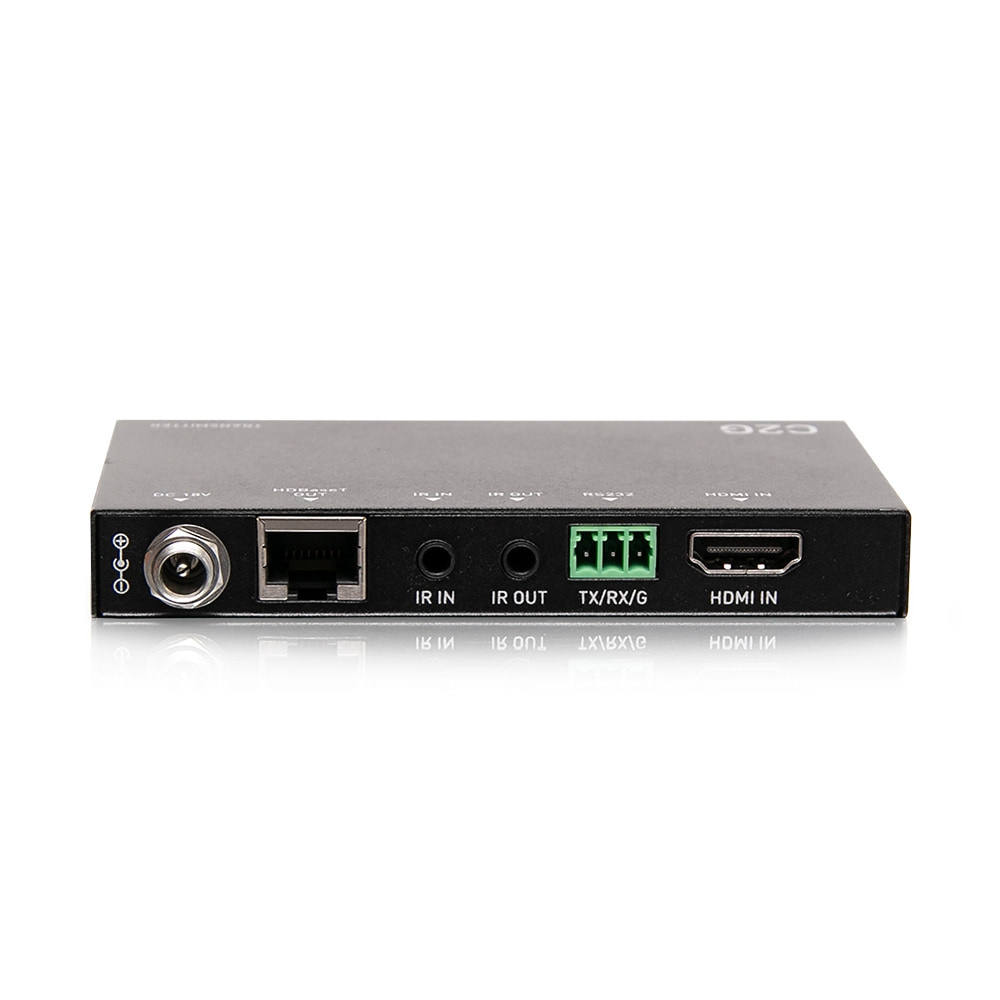

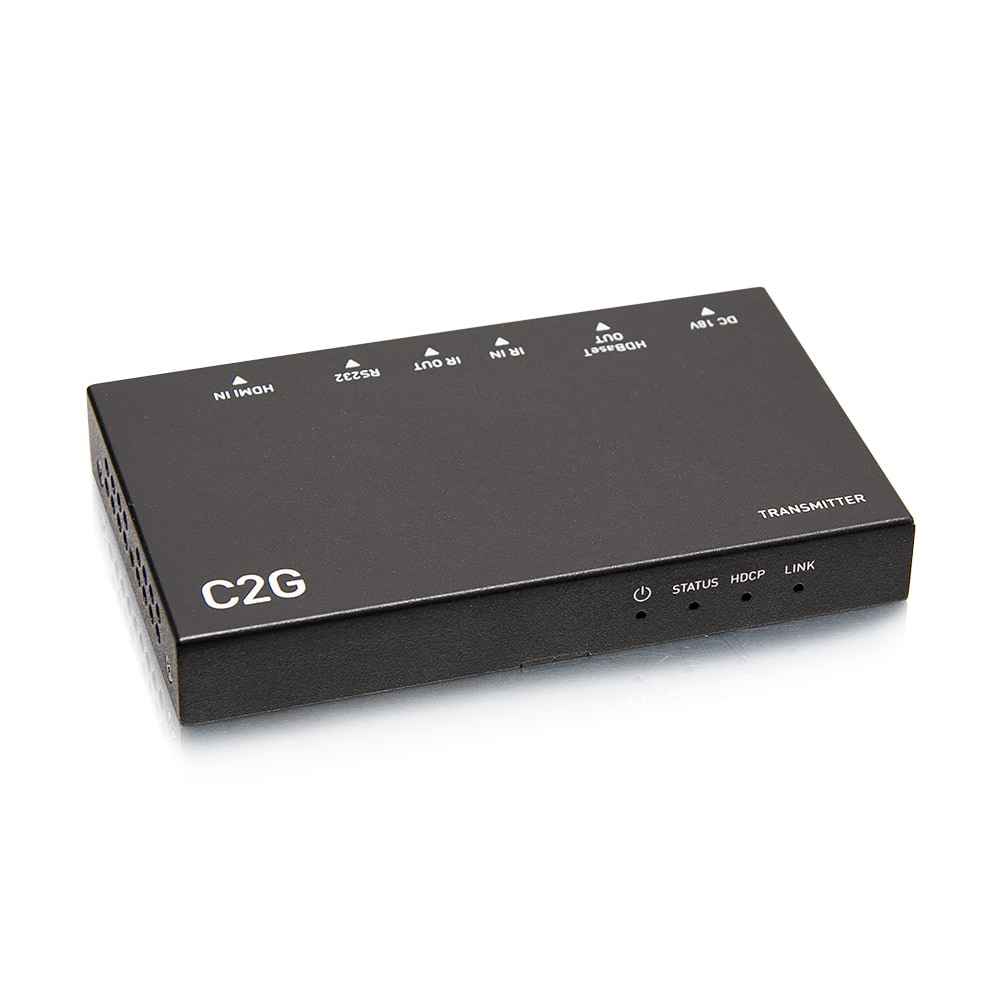

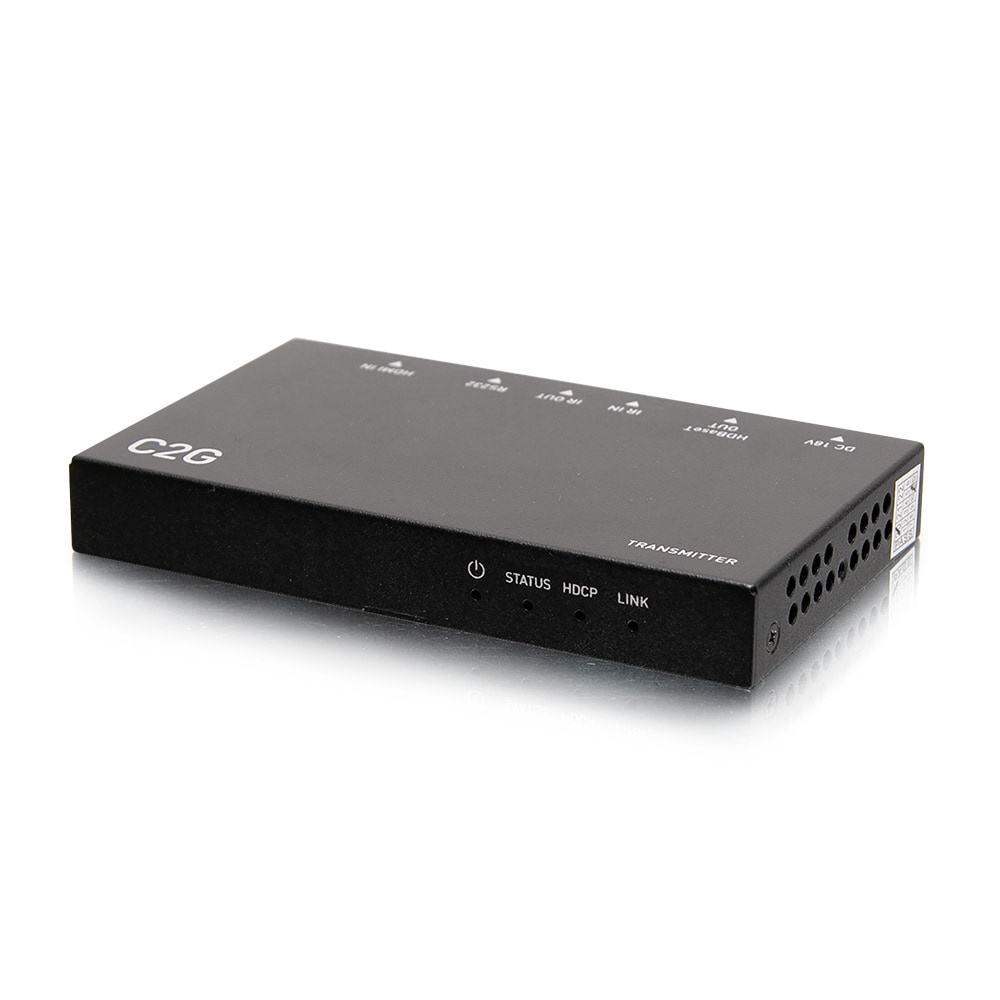

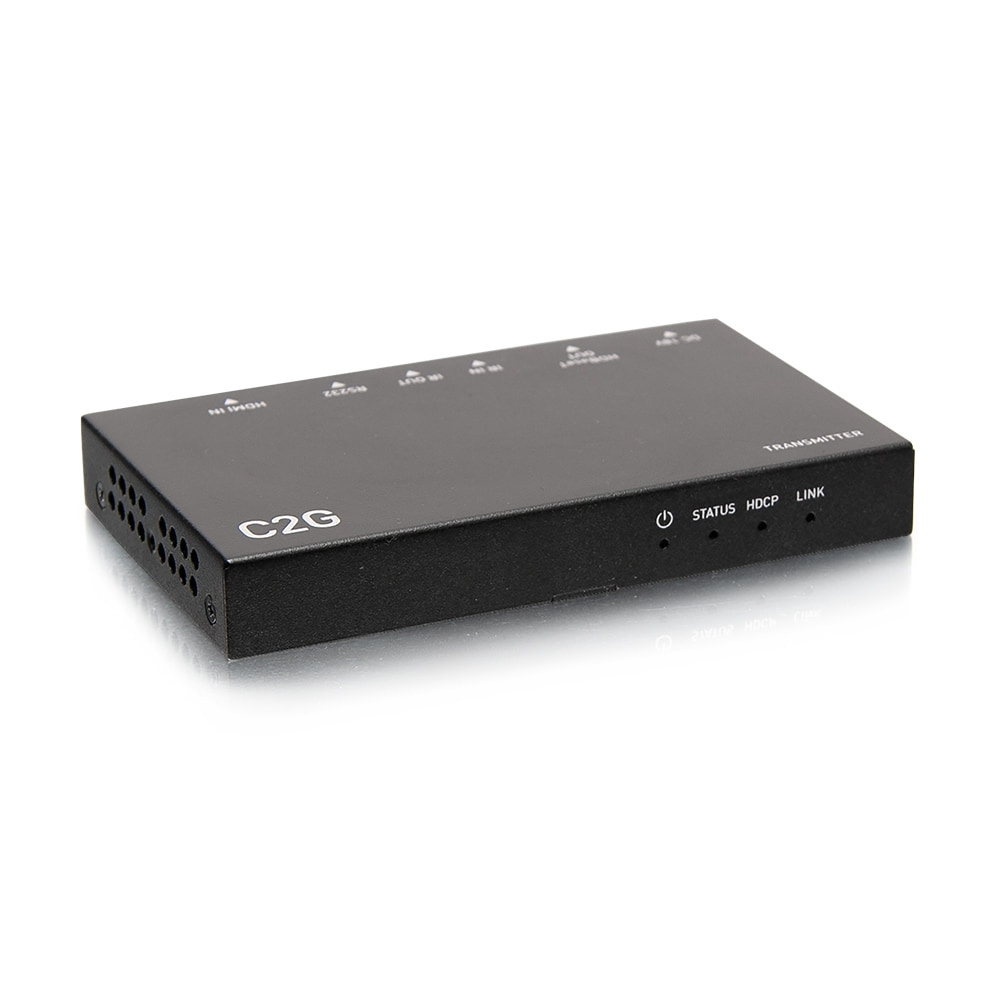

C2G HDMI® Ultra-Slim HDBaseT + RS232 and IR over Cat Extender Box Transmitter - 4K 60Hz
Roll over image to zoom inClick to Open expanded view
C2G HDMI® Ultra-Slim HDBaseT + RS232 and IR over Cat Extender Box Transmitter - 4K 60Hz
C2G HDMI® Ultra-Slim HDBaseT + RS232 and IR over Cat Extender Box Transmitter - 4K 60Hz
C2G HDMI® Ultra-Slim HDBaseT + RS232 and IR over Cat Extender Box Transmitter - 4K 60Hz
C2G HDMI® Ultra-Slim HDBaseT + RS232 and IR over Cat Extender Box Transmitter - 4K 60Hz
C2G HDMI® Ultra-Slim HDBaseT + RS232 and IR over Cat Extender Box Transmitter - 4K 60Hz

C2G HDMI® Ultra-Slim HDBaseT + RS232 and IR over Cat Extender Box Transmitter - 4K 60Hz

SKU: C2G30014
C2G HDMI® Ultra-Slim HDBaseT + RS232 and IR over Cat Extender Box Transmitter - 4K 60Hz, 3840 x 2160 pixels, AV transmitter, 40 m, Black, HDCP
Specifications
More Information
PDF

Product Properties

  • Manufacturer
  • C2G
  • Warranty
  • 5 Years
  • SKU
  • C2G30014
  • EAN
  • 757120300144
  • Bullet points
  • Features
  • Maximum transfer distance
  • 40 m
  • Operational conditions
  • Packaging data
  • Ports & interfaces
  • Number of HDMI outputs
  • 2
  • Remote (IR) input
  • 1
  • Remote (IR) output
  • 1
  • Power
  • Power source type
  • DC
  • Weight & dimensions

Description

C2G HDMI® Ultra-Slim HDBaseT + RS232 and IR over Cat Extender Box Transmitter - 4K 60Hz. Type: AV transmitter, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. Power source type: DC, Operating voltage: 18 V, Output current: 1 A. Width: 108.8 mm, Depth: 64.2 mm, Height: 15 mm. Quantity per pack: 1 pc(s)
  • AV transmitter 3840 x 2160 pixels Black
  • Maximum transfer distance: 40 m
  • 60 Hz
  • HDCP
  • DC-in jack
  • Power source type: DC
  • Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
  • Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
  • HDCP 2.2 compliant, to create a secure connection between the source and display
  • Bi-directional PoC, one power adapter at either transmitter or receiver side can power both units
  • Supports bi-directional IR and RS232 pass-through
  • DBaseT Chipset VS210, for simpler HDBaseT installations
