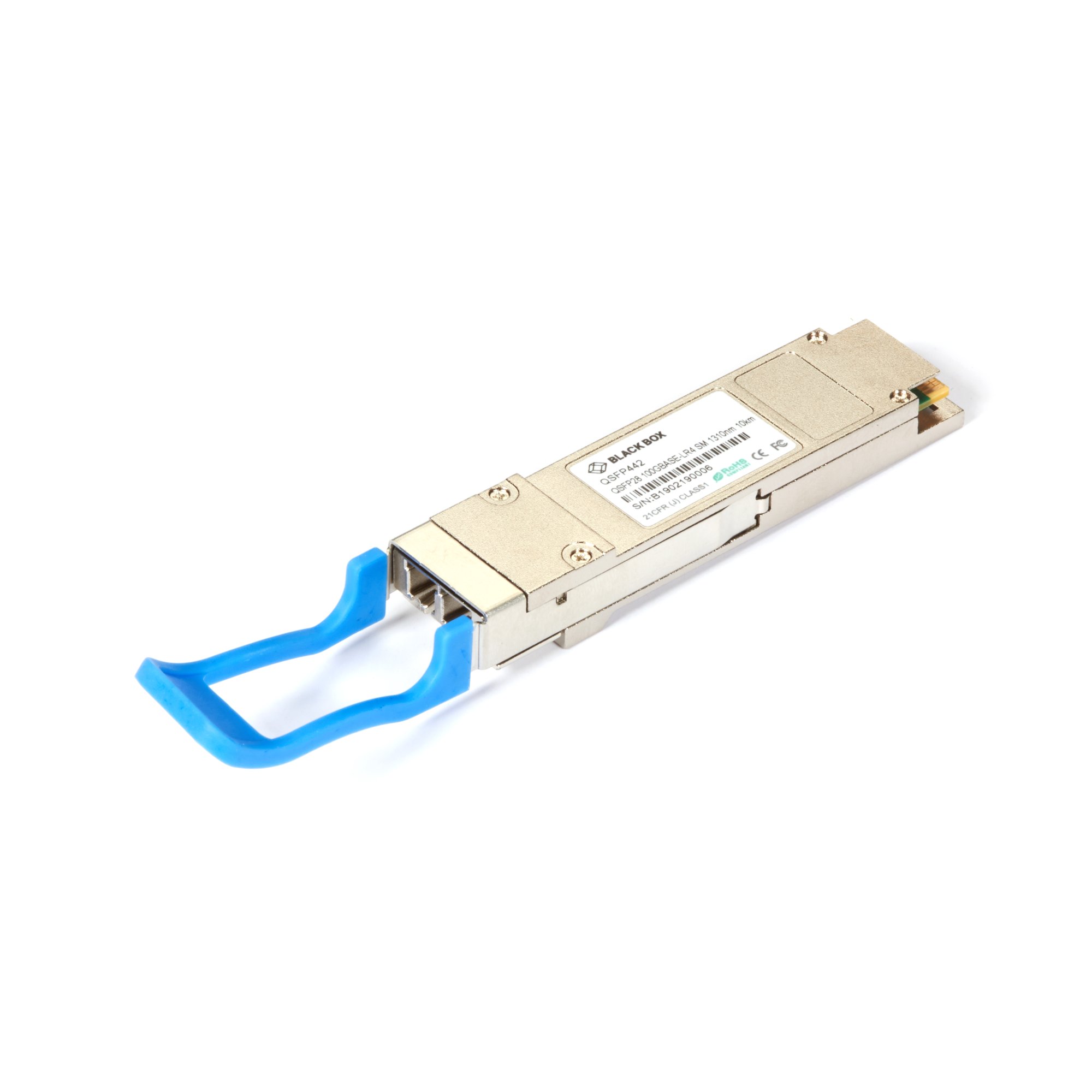

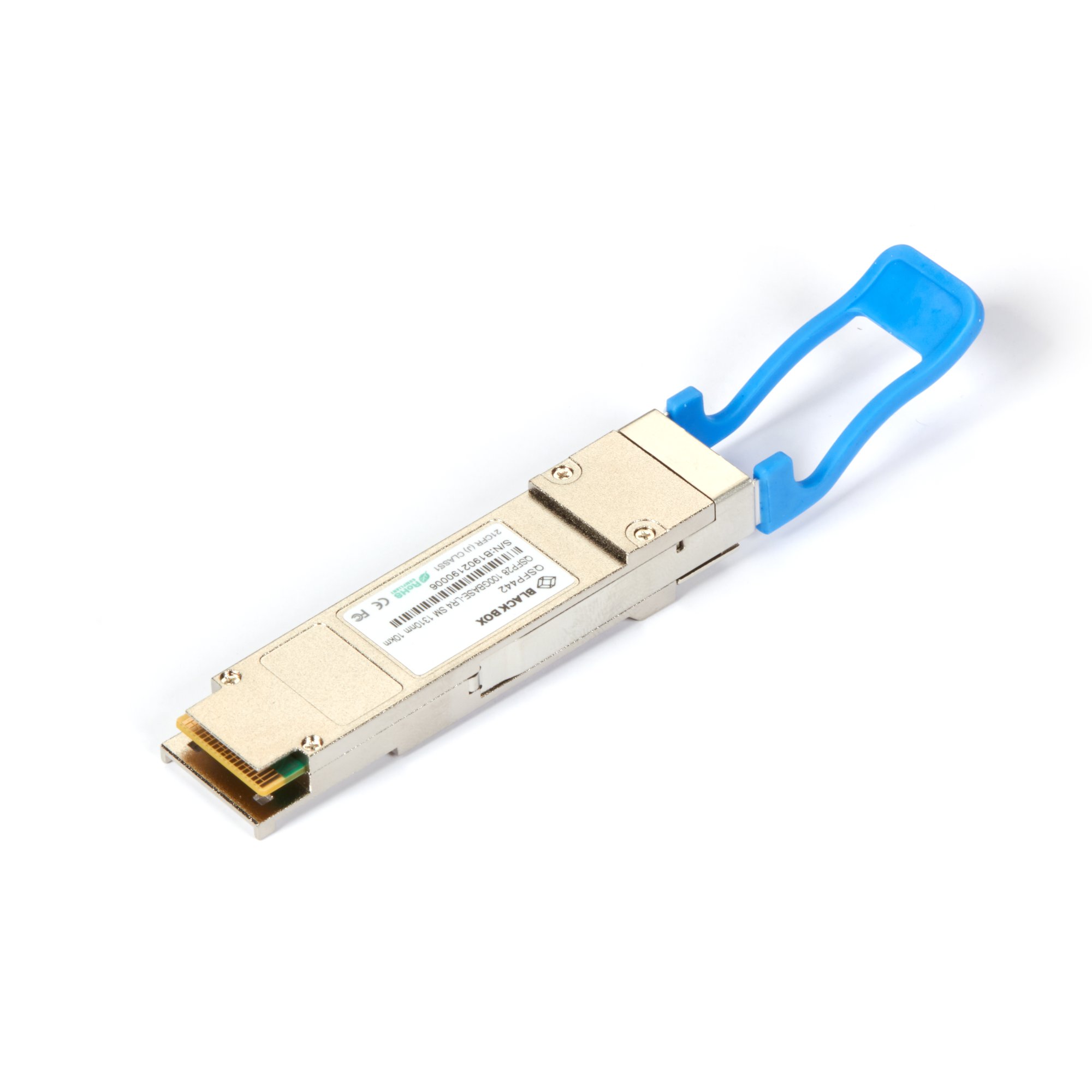

Black Box QSFP442 network transceiver module Fiber optic 100000 Mbit/s QSFP28 1310 nm
Roll over image to zoom inClick to Open expanded view
Black Box QSFP442 network transceiver module Fiber optic 100000 Mbit/s QSFP28 1310 nm
Black Box QSFP442 network transceiver module Fiber optic 100000 Mbit/s QSFP28 1310 nm

Black Box QSFP442 network transceiver module Fiber optic 100000 Mbit/s QSFP28 1310 nm

SKU: QSFP442
Black Box QSFP442, Fiber optic, 100000 Mbit/s, QSFP28, LC, LR4, 10000 m
Specifications
More Information

Product Properties

  • Warranty
  • 1 Year
  • SKU
  • QSFP442
  • Bullet points
  • Features
  • Operational conditions
  • Performance
  • Fiber optic connector
  • LC
  • Multi-mode fiber (MMF) supported
  • No
  • SFP transceiver standard
  • LR4
  • Single-mode fiber (SMF) supported
  • Yes
  • Power
  • Power consumption (typical)
  • 4 W
  • Technical details
  • Compliance certificates
  • RoHS
  • Weight & dimensions

Description

Black Box QSFP442. SFP transceiver type: Fiber optic, Maximum data transfer rate: 100000 Mbit/s, Interface type: QSFP28. Product colour: Metallic, Certification: CE, FCC. Input voltage: 3.3 V, Power consumption (typical): 4 W. Width: 18.4 mm, Depth: 120 mm, Height: 8.5 mm
  • QSFP28 Fiber optic 100000 Mbit/s
  • Wavelength: 1310 nm
  • Hot-Plug support
  • Input voltage: 3.3 V
  • Power consumption (typical): 4 W
  • Hot-pluggable
  • Compliant with IEEE 802.3ba 100GBASE-LR4
  • 3.3 V power supply voltage
  • Duplex LC receptacle
  • RoHS 6 compliant
  • Up to 10-kilometer extension for G.652 SMF
  • WDM (1295.56, 1300.05, 1304.58, 1309.14nm)
  • Diagnostic monitoring interface
