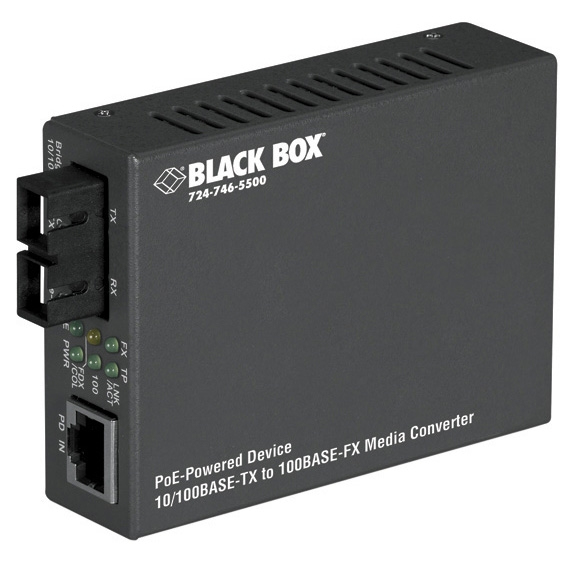

Black Box LPD504A network media converter 100 Mbit/s Multi-mode

SKU: LPD504A
Black Box LPD504A, 100 Mbit/s, 100Base-TX, 10Base-T, 100Base-FX, IEEE 802.3x, Fast Ethernet, 10,100 Mbit/s
Specifications
More Information

Product Properties

  • Warranty
  • 1 Year
  • SKU
  • LPD504A
  • Bullet points
  • Design
  • Management features
  • Network
  • Operational conditions
  • Performance
  • Ports & interfaces
  • Ethernet LAN (RJ-45) ports
  • 1
  • Fiber optic connector
  • LC
  • Fiber ports quantity
  • 2
  • Power
  • Power over Ethernet (PoE)
  • Yes
  • Technical details
  • Compliance certificates
  • RoHS
  • Weight & dimensions

Description

Black Box LPD504A. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 100Base-TX, 10Base-T, Converter output interface: 100Base-FX. Fiber optic connector: LC, Connectivity technology: Wired. Maximum transfer distance: 2000 m, Fiber mode structure: Multi-mode. Product colour: Black. Width: 69 mm, Depth: 94 mm, Height: 25 mm
  • Wired
  • 100 Mbit/s 2000 m
  • Ethernet LAN (RJ-45) ports: 1
  • Multi-mode Fiber ports quantity: 2 LC
  • Black
  • Translate 10-/100-Mbps copper media to 100-Mbps fibre optic connections.
  • Work as powered devices (PD) that receive their power from the spare pairs of copper data cable.
  • Connect to PoE switches, mid-span hubs or other 802.3af power source equipment (PSE).
  • Link fault passthrough enhances the integrity of the copper and fibre links.
  • Far-end fault detection keeps data from being sent over an invalid link.
  • Easy to configure with DIP switches.
