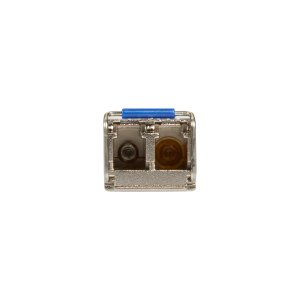

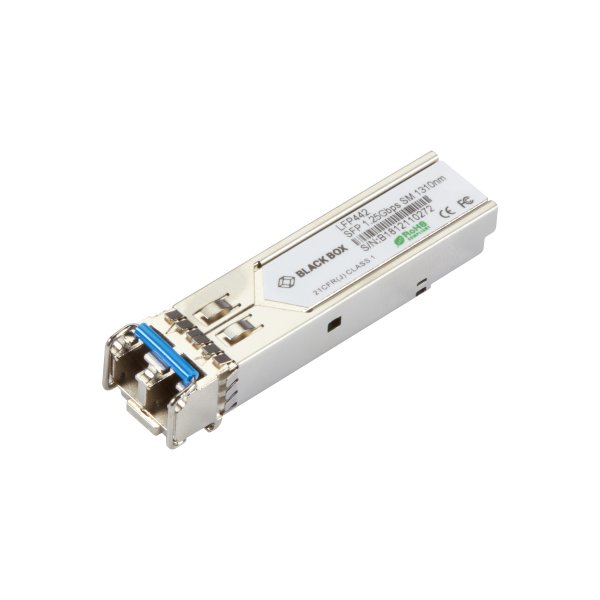

Black Box LFP442 network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm
Roll over image to zoom inClick to Open expanded view
Black Box LFP442 network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm
Black Box LFP442 network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm

Black Box LFP442 network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm

SKU: LFP442
Black Box LFP442, Fiber optic, 1250 Mbit/s, SFP, LC, LX, 20000 m
Specifications
More Information

Product Properties

  • Warranty
  • 1 Year
  • SKU
  • LFP442
  • EAN
  • 0822088135241
  • Bullet points
  • Certificates
  • Compliance certificates
  • RoHS
  • Features
  • Operational conditions
  • Packaging content
  • Performance
  • Fiber optic connector
  • LC
  • Multi-mode fiber (MMF) supported
  • No
  • SFP transceiver standard
  • LX
  • Single-mode fiber (SMF) supported
  • Yes
  • Power
  • Power consumption (typical)
  • 1 W
  • Weight & dimensions

Description

Black Box LFP442. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Metallic. Input voltage: 3.3 V, Power consumption (typical): 1 W. Compliance certificates: RoHS, Certification: CE, FCC. Width: 13.7 mm, Depth: 55.4 mm, Height: 8.5 mm
  • SFP Fiber optic 1250 Mbit/s
  • Wavelength: 1310 nm
  • Input voltage: 3.3 V
  • Power consumption (typical): 1 W
  • SFP package with LC connector
  • 1310nm FP laser and PIN photo detector
  • Up to 20Km transmission on SMF
  • +3.3V single power supply
  • LVPECL compatible data input/output interface
  • Low EMI and excellent ESD protection
  • Laser safety standard IEC-60825 compliant
  • Compatible with RoHS
  • Digital Diagnostic SFF-8472 compliant
  • Signal Ground Isolated to Case
