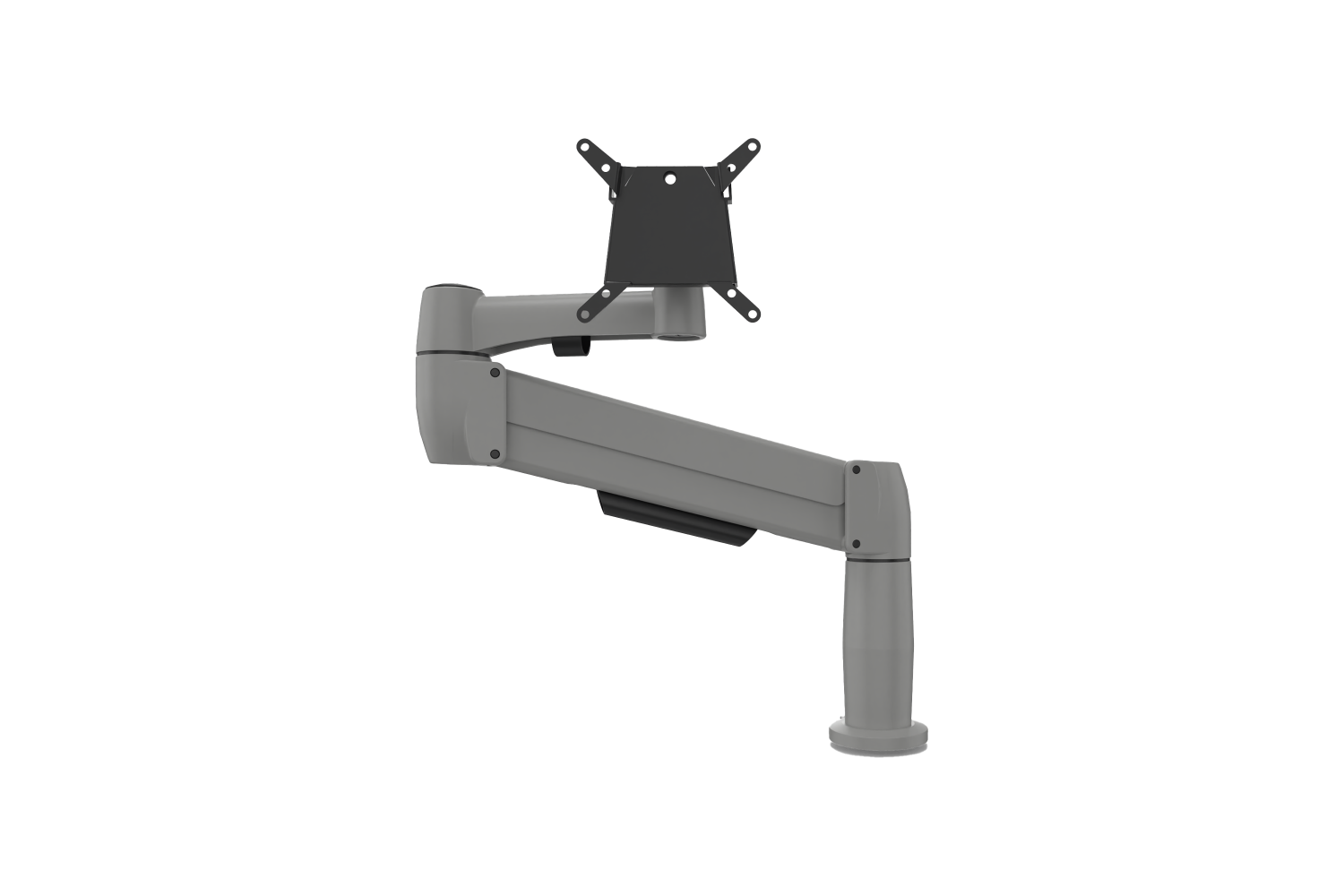

BakkerElkhuizen Space-arm Clamp (2,25-7,5 kg)

Roll over image to zoom inClick to Open expanded view

BakkerElkhuizen Space-arm Clamp (2,25-7,5 kg)

Name: BakkerElkhuizen Space-arm Clamp (2,25-7,5 kg)
Brand: Bakker Elkhuizen
SKU: BNESP

SKU: BNESP

BakkerElkhuizen Space-arm Clamp (2,25-7,5 kg), Clamp, 7.5 kg, 25.4 cm (10"), 61 cm (24"), 100 x 100 mm, Silver

hypertec

Product manual (Download)

Generated PDF (Download)

Add to compare

Product Properties

Manufacturer
Bakker Elkhuizen

Warranty
5 Years

SKU
BNESP

EAN
8717399993425

Design

Housing material
Aluminium

Product colour
Silver

Ergonomics

Angle of rotation
360°

Cable management
Yes

Height adjustment
Yes

Height adjustment range
330 - 620 mm

Height adjustment type
Gas spring

Pan range
0 - 360°

Tilt adjustment
Yes

Tilt angle range
-40 - 40°

Logistics data

Harmonized System (HS) code
85299097

Mounting

Clamp mount desk thickness (max)
9.2 cm

Distance to the wall (max)
58 cm

Distance to the wall (min)
25 cm

Maximum screen size
61 cm (24")

Maximum VESA mount
100 x 100 mm

Maximum weight capacity
7.5 kg

Minimum screen size
25.4 cm (10")

Minimum VESA mount
75 x 75 mm

Mounting
Clamp

Mounting type
Desk

Number of displays supported
1

Panel mounting interface
75 x 75,100 x 100 mm

Packaging content

Manual
Yes

Weight & dimensions

Depth
67 mm

Height
464 mm

Package depth
510 mm

Package height
120 mm

Package weight
3.51 kg

Package width
360 mm

Weight
3.3 kg

Width
520 mm

Description

BakkerElkhuizen Space-arm Clamp (2,25-7,5 kg). Mounting: Clamp, Maximum weight capacity: 7.5 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 61 cm (24"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: -40 - 40°. Product colour: Silver

Maximum weight capacity: 7.5 kg
Minimum screen size: 25.4 cm (10") Maximum screen size: 61 cm (24")
Number of displays supported: 1
Clamp Mounting type: Desk
Maximum VESA mount: 100 x 100 mm
Gas spring Height adjustment Tilt adjustment
Cable management
Aluminium Silver
