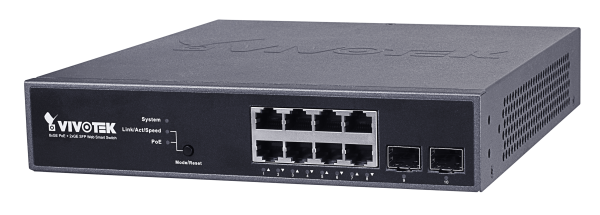

VIVOTEK AW-GEV-104B-130 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Roll over image to zoom inClick to Open expanded view

VIVOTEK AW-GEV-104B-130 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

SKU: AW-GEV-104B-130_EU
VIVOTEK AW-GEV-104B-130, Managed, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), 1U
Specifications
More Information
PDF

Product Properties

  • Warranty
  • 2 Years
  • SKU
  • AW-GEV-104B-130_EU
  • EAN
  • 4712123676555
  • Data transmission
  • Jumbo frames support
  • Yes
  • Number of queues
  • 8
  • Design
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Web-based management
  • Yes
  • Multicast features
  • Multicast Listener Discovery (MLD) snooping
  • Y
  • Network
  • Broadcast storm control
  • Yes
  • MAC address auto-aging supported
  • Yes
  • MAC address auto-learning supported
  • Yes
  • Spanning tree protocol
  • Yes
  • Operational conditions
  • Packaging data
  • Cables included
  • AC
  • Ports & interfaces
  • Gigabit Ethernet (copper) ports quantity
  • 8
  • SFP module slots quantity
  • 2
  • Switch Number of Ports
  • 8
  • Power
  • Power consumption (typical)
  • 150 W
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) ports quantity
  • 8
  • Power over Ethernet (PoE) power per port
  • 30 W
  • Total Power over Ethernet (PoE) budget
  • 130 W
  • Protocols
  • GARP VLAN Registration Protocol (GVRP)
  • Yes
  • Security
  • Password protection
  • Yes
  • Weight & dimensions

Description

VIVOTEK AW-GEV-104B-130. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8190 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Form factor: 1U
  • Managed Web-based management SNMP (v1, v2c, v3)
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Cat5, Cat5e 10BASE-T, 100BASE-TX, 1000BASE-T
  • MAC address table: 8190 entries Switching capacity: 20 Gbit/s
  • 1U
  • Power over Ethernet (PoE)
