Name: AMD Ryzen Threadripper PRO 3975WX (32C/64T, 3.5/4.2GHz, 16MB L2/128MB L3), 1x 16GB RDIMM DDR4-3200 ECC, 1x 512GB SSD M.2 2280 PCIe 4.0 NVMe Opal, Windows 10 Pro 64
Brand: Lenovo
SKU: 30E0004BUK

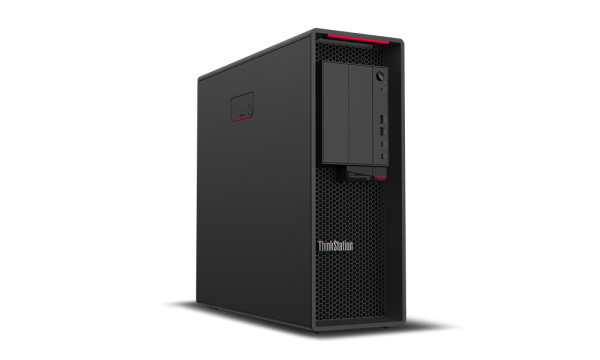

Lenovo ThinkStation P620 AMD Ryzen Threadripper PRO 3975WX 16 GB DDR4-SDRAM 512 GB SSD Windows 10 Pro Tower Workstation Black

Roll over image to zoom inClick to Open expanded view

Product Properties

Manufacturer
Lenovo

Device type
Workstation

Bullet points

Point
1x 16GB RDIMM DDR4-3200 ECC

1x 512GB SSD M.2 2280 PCIe 4.0 NVMe Opal

AMD Ryzen Threadripper PRO 3975WX (32C/64T, 3.5/4.2GHz, 16MB L2/128MB L3)

Windows 10 Pro 64

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Chassis type
Tower

Introduction year
2020

Number of 3.5" bays
4

Placement supported
Horizontal

Product colour
Black

Volume
33 L

Expansion slots

PCI Express x16 (Gen 4.x) slots
4

Filters

Machinecategory
Workstation

Graphics

Discrete graphics card
No

Discrete graphics card model
Not available

On-board graphics card
No

On-board graphics card model
Not available

Memory

ECC
Yes

Internal memory type
DDR4-SDRAM

Memory channels
Octa-channel

Memory clock speed
3200 MHz

Memory Installed
16 GB

Memory layout (slots x size)
1 x 16 GB

Memory Slot Support
1.02 TB

Memory slots
8x DIMM

Network

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000,10000 Mbit/s

LAN controller
Marvell AQtion AQN-107

Wi-Fi
No

Operational conditions

Non-operating altitude
-15.2 - 12192 m

Operating altitude
-15.2 - 3048 m

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
10 - 35 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-40 - 60 °C

Packaging content

Display included
No

Keyboard included
Yes

Mouse included
Yes

Performance

Audio chip
Realtek ALC4050H

Audio system
High Definition Audio

Motherboard chipset
AMD WRX80

Password protection
Yes

Password protection type
Power on, Supervisor

Product type
Workstation

Trusted Platform Module (TPM)
Yes

Ports & interfaces

Combo headphone/mic port
Yes

DVI port
No

Ethernet LAN (RJ-45) ports
1

Headphone outputs
1

Line-in
Yes

Line-out
Yes

Microphone in
Yes

PS/2 ports quantity
1

USB 2.0 ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2

Power

80 PLUS certification
80 PLUS Platinum

Power supply
1000 W

Processor

Number of Cores
32

Number of processors installed
1

Processor
3975WX

Processor boost frequency
4.2 GHz

Processor cache
128 MB

Processor cache type
L3

Processor family
AMD Ryzen Threadripper PRO

Processor frequency
3.5 GHz

Processor manufacturer
AMD

Processor threads
64

Software

Operating system architecture
64-bit

Operating system installed
Windows 10 Pro

Operating system language
English

Storage

Card reader integrated
Yes

Number of SSDs installed
1

Number of storage drives installed
1

NVMe
Yes

Optical drive type
DVD±RW

SSD capacity
512 GB

SSD form factor
M.2

SSD interface
NVMe, PCI Express 4.0

Storage Capacity
512 GB

Storage type
SSD

Total SSDs capacity
512 GB

Sustainability

Sustainability certificates
RoHS, EPEAT Silver, ENERGY STAR

Weight & dimensions

Depth
460 mm

Height
446 mm

Weight
24 kg

Width
165 mm

Memory

Internal memory type
DDR4-SDRAM

Memory clock speed
3200 MHz

Memory Installed
16 GB

Memory Slot Support
1.02 TB

Memory slots
8x DIMM

Processor

Processor
3975WX
