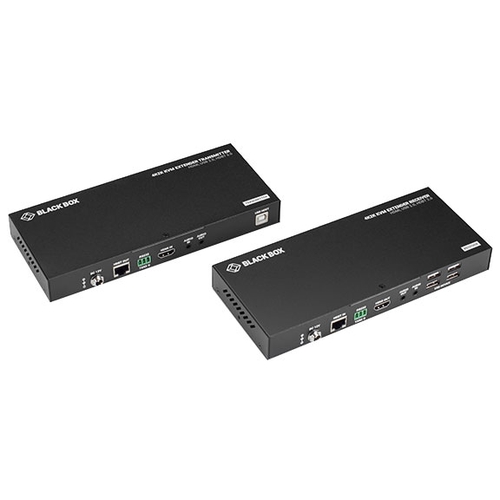

Black Box ACU1700A KVM extender Transmitter & receiver
Roll over image to zoom inClick to Open expanded view
Black Box ACU1700A KVM extender Transmitter & receiver
Black Box ACU1700A KVM extender Transmitter & receiver
Black Box ACU1700A KVM extender Transmitter & receiver

Black Box ACU1700A KVM extender Transmitter & receiver

SKU: ACU1700A
Black Box ACU1700A, Transmitter & receiver, Wired, 100 m, Cat6, Cat6a, Cat7, 4096 x 2160 pixels, HDMI
Specifications
More Information

Product Properties

  • Warranty
  • 1 Year
  • SKU
  • ACU1700A
  • EAN
  • 0822088131021
  • Bullet points
  • Features
  • USB 2.0 ports quantity
  • 5
  • Logistics data
  • Operational conditions
  • Power
  • AC adapter output voltage
  • 12 V
  • Receiver
  • Receiver local keyboard/mouse port type
  • USB
  • Receiver local video port type
  • HDMI
  • RJ-45 ports quantity (receiver)
  • 1
  • Transmitter
  • Number of displays supported
  • 1
  • RJ-45 ports quantity (transmitter)
  • 1
  • Transmitter local video port
  • Yes
  • Transmitter video port type
  • HDMI
  • Weight & dimensions

Description

Black Box ACU1700A. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 100 m. Transmitter video port type: HDMI. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. AC adapter output voltage: 12 V. Transmitter width: 20.8 cm, Transmitter depth: 9 cm, Transmitter height: 2.5 cm
  • Transmitter & receiver
  • Wired Maximum transfer distance: 100 m
  • Maximum digital resolution: 4096 x 2160 pixels
  • Transmitter video port type: HDMI
  • Receiver local video port type: HDMI Receiver local keyboard/mouse port type: USB
  • Extend uncompressed 4Kx2K@60Hz/1080p@60Hz video up to 100m using Cat 6/6a/7 cables, or up to 90m using CAT5e cables
  • Supports HDMI 1.4 with 4k@60Hz chroma sub-sampling 4:2:0, 8-bit
  • HDBaseT 2.0 technology carries video, analog stereo audio, power, RS-232 and USB 2.0 signals
  • With integrated 48V PoH (Power over HDBT), only one power supply is required to power both transmitter and receiver
  • USB 2.0 pass-through: Connect keyboard, mouse, and two additional USB peripherals such as cameras at speeds up to 480 Mbps over the full distance of 100m
  • Bi-directional Analog Stereo and RS232 pass-through over HDBaseT
