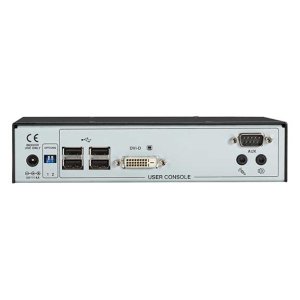

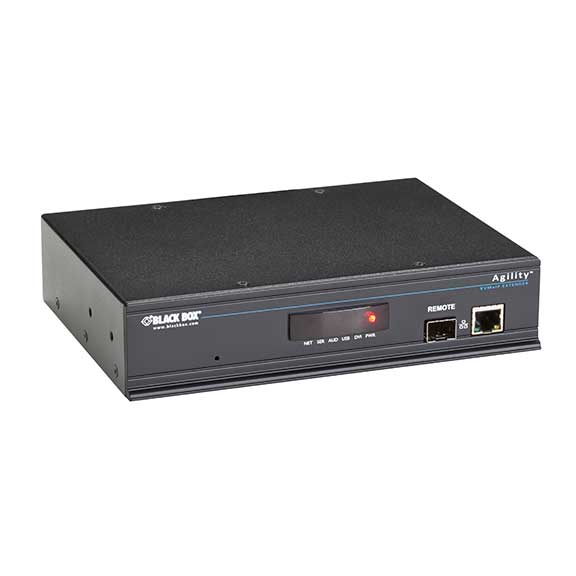

Black Box ACR1000A-R-R2 KVM extender Receiver

Roll over image to zoom inClick to Open expanded view

Black Box ACR1000A-R-R2 KVM extender Receiver

Name: Black Box ACR1000A-R-R2 KVM extender Receiver
Brand: Black Box
SKU: ACR1000A-R-R2

SKU: ACR1000A-R-R2

Black Box ACR1000A-R-R2, Receiver, Wired, 100 m, Cat6, Black, CE, RoHS, FCC

hypertec

Advanced USB Features (Download)

Upgrading to Agility iPATH 4.0 (Download)

Compatibility Chart (Download)

Broadcasting Solutions (Download)

Broadcasting and Post-Production Solutions (Download)

Add to compare

Product Properties

Manufacturer
Black Box

Warranty
1 Year

SKU
ACR1000A-R-R2

EAN
0822088001317

Bullet points

Features

Cable types supported
Cat6

Certification
CE, RoHS, FCC

Connectivity technology
Wired

Maximum transfer distance
100 m

Product colour
Black

Rack mounting
Yes

Type
Receiver

Packaging content

AC adapter included
Yes

Cables included
DVI, USB

Receiver

Receiver local keyboard/mouse port type
USB

Receiver local video port type
DVI-D

Technical details

Dimensions (WxDxH)
201 x 122 x 44 mm

Weight
810 g

Weight & dimensions

Receiver depth
12.2 cm

Receiver height
4.4 cm

Receiver weight
810 g

Receiver width
20.1 cm

Description

Black Box ACR1000A-R-R2. Type: Receiver, Connectivity technology: Wired, Maximum transfer distance: 100 m. Receiver local video port type: DVI-D, Receiver local keyboard/mouse port type: USB. Receiver width: 20.1 cm, Receiver depth: 12.2 cm, Receiver height: 4.4 cm. Cables included: DVI, USB

Receiver
Wired Maximum transfer distance: 100 m
Receiver local video port type: DVI-D Receiver local keyboard/mouse port type: USB
Black
Dual CATx/SFP link interfaces offer flexibility on link media (CATx or fibre) as well as hot redundancy or bandwidth aggregation.
Distances up to 100m over direct CATx links, 10km over fiber or unlimited using a standard network.
Supports DVI-D video, USB HID, USB 2.0, serial and bi-directional analogue audio.
Choose between Single Link DVI (1920x1200), Dual Head DVI (2x 1920x1200/1080p), and Dual Link DVI (2560x1600/2kx2k) versions.
No-loss compression, low latency, pixel-perfect video, and control.
Emulation for K/M and other standard USB HIDs such as touch screens or flash drives.
Completely fan-less, zero-noise operation.
ACR1012A-T offers out-of-band access via VNC to the attached computer via VNC down to the BIOS-level.
Plug-and-Play Installation.
Start from point-to-point KVM extension and migrate easily into KVM matrix switching using the iPath Controller.
