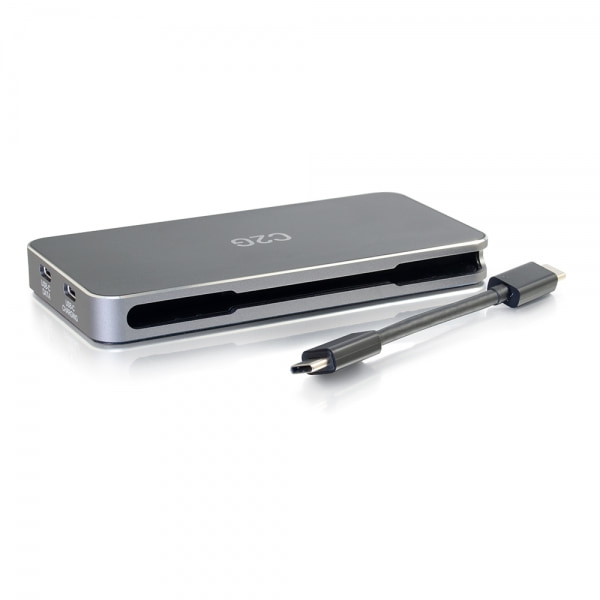

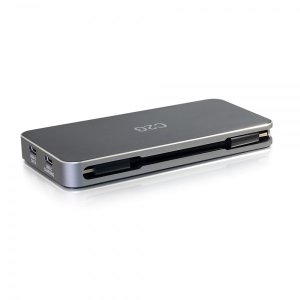

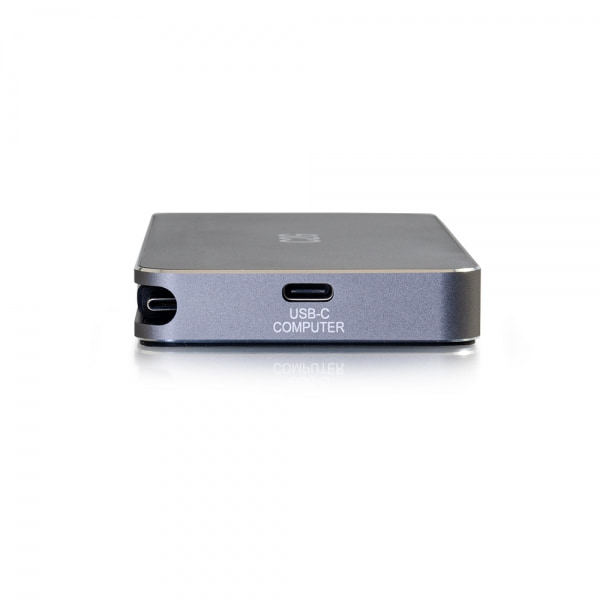

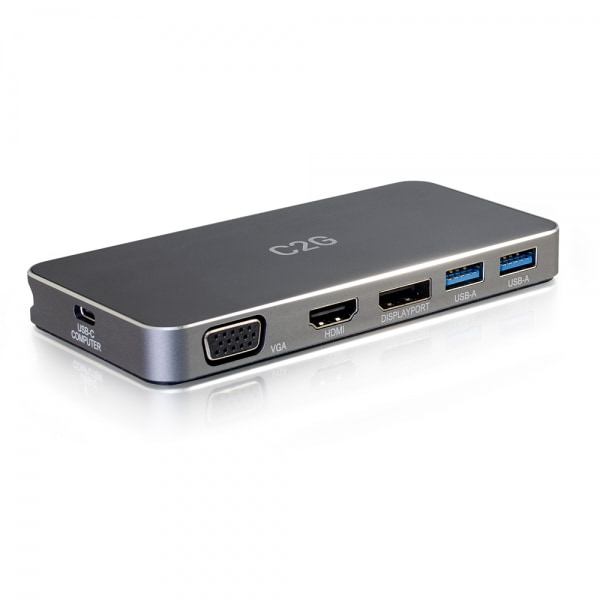

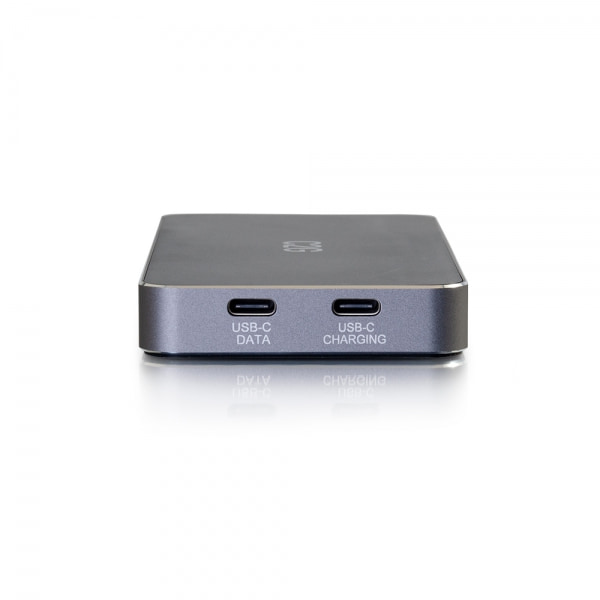

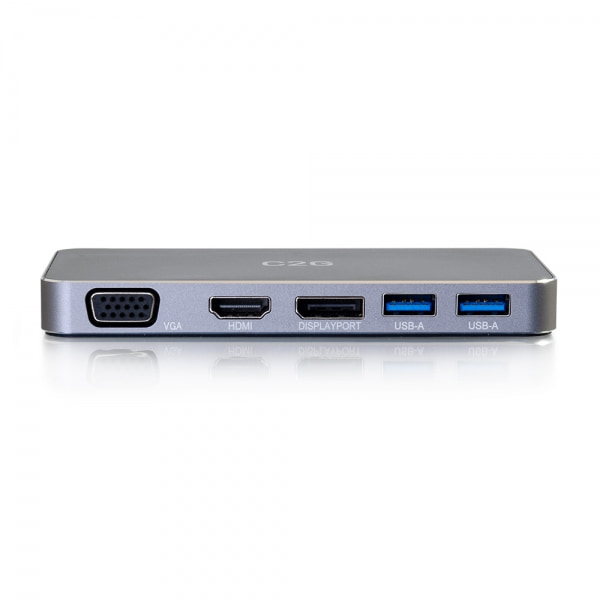

C2G USB-C Dual Display MST Docking Station with HDMI, DisplayPort, VGA and Power Delivery up to 65W - 4K 30Hz

Roll over image to zoom inClick to Open expanded view

C2G USB-C Dual Display MST Docking Station with HDMI, DisplayPort, VGA and Power Delivery up to 65W - 4K 30Hz

Name: C2G USB-C Dual Display MST Docking Station with HDMI, DisplayPort, VGA and Power Delivery up to 65W - 4K 30Hz
Brand: C2G
SKU: 84439

SKU: 84439

Log In to View Pricing

C2G USB-C Dual Display MST Docking Station with HDMI, DisplayPort, VGA and Power Delivery up to 65W - 4K 30Hz, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Black, 5 Gbit/s, 3840 x 2160 pixels, 1920 x 1080 pixels

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
C2G

Warranty
Lifetime

SKU
84439

EAN
757120844396

Bullet points

Logistics data

Harmonized System (HS) code
84733020

Operational conditions

Operating temperature (T-T)
0 - 50 °C

Storage temperature (T-T)
-25 - 70 °C

Performance

Card reader integrated
No

Certification
FCC, CE

Data transfer rate
5 Gbit/s

Maximum analog resolution
1920 x 1080 pixels

Maximum digital resolution
3840 x 2160 pixels

Product colour
Black

Ports & interfaces

Connectivity technology
Wired

DisplayPorts quantity
1

HDMI ports
1

Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
3

VGA (D-Sub) ports quantity
1

Power

AC input voltage
100 - 240 V

Output current
3 A

Output voltage
20 V

Power connector
USB Type-C

Power source type
USB

Power supply
60 W

Weight & dimensions

Depth
63.2 mm

Height
14 mm

Weight
130 g

Width
127 mm

Description

C2G USB-C Dual Display MST Docking Station with HDMI, DisplayPort, VGA and Power Delivery up to 65W - 4K 30Hz. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Product colour: Black, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 3840 x 2160 pixels. Power source type: USB, Power connector: USB Type-C, AC input voltage: 100 - 240 V. Width: 127 mm, Depth: 63.2 mm, Height: 14 mm

Multi-Stream Transport (MST)
Supports dual display resolutions up to 1920 x 1080 at 60Hz
Supports HDMI resolutions up to 4K (3840 x 2160) at 30Hz
Supports DisplayPort resolutions up to 4K (3840 x 2160) at 30Hz
Supports VGA resolutions up to 1920 x 1080 at 60Hz
Backward compatible with USB 3.0 and USB 2.0
3 USB-C ports for device connection to charge, transfer data and display video
Includes 60W USB-C power supply
