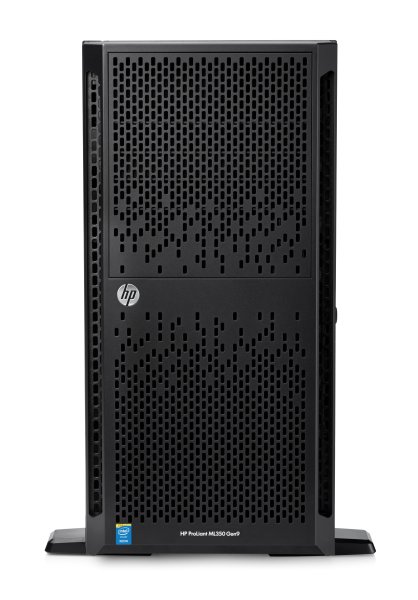

Name: Intel Xeon E5-2620v4 (2.1GHz, 20MB), 16GB (1 x 16GB) DDR4, 2x 300GB SFF SAS, SATA DVD-RW, Smart Array P440ar/2GB FBWC, 2x 500W PS
Brand: HPE
SKU: 835848-425

Intel Xeon E5-2620v4 (2.1GHz, 20MB), 16GB (1 x 16GB) DDR4, 2x 300GB SFF SAS, SATA DVD-RW, Smart Array P440ar/2GB FBWC, 2x 500W PS

Roll over image to zoom inClick to Open expanded view

Product Properties

Manufacturer
HPE

Device type
Server

Design

Chassis type
Tower (5U)

Expansion slots

PCI Express slots version
3.0

Filters

Machinecategory
Server

Memory

ECC
Yes

Internal memory type
DDR4-SDRAM

Memory clock speed
2400 MHz

Memory Installed
16 GB

Memory layout (slots x size)
1 x 16 GB

Memory Slot Support
768 GB

Memory slots
24x DIMM

Network

Ethernet interface type
Gigabit Ethernet

Ethernet LAN
Yes

LAN controller
HP 331i

Ports & interfaces

Ethernet LAN (RJ-45) ports
4

Serial ports quantity
1

USB 2.0 ports quantity
4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

VGA (D-Sub) ports quantity
1

Power

Power supply
500 W

Redundant power supply (RPS) support
Yes

Processor

Bus type
QPI

Conflict-Free processor
Yes

ECC supported by processor
Yes

Embedded options available
Yes

Execute Disable Bit
Yes

Idle States
Yes

Maximum internal memory supported by processor
1.54 TB

Maximum number of PCI Express lanes
40

Memory bandwidth supported by processor (max)
68.3 GB/s

Memory channels supported by processor
Quad

Memory clock speeds supported by processor
1600,1866,2133 MHz

Memory types supported by processor
DDR4-SDRAM

Number of Cores
8

Number of processors installed
1

Number of QPI links
2

Physical Address Extension (PAE)
46 bit

Yes

Processor
E5-2620V4

Processor boost frequency
3 GHz

Processor cache
20 MB

Processor cache type
Smart Cache

Processor code
SR2R6

Processor codename
Broadwell

Processor family
Intel® Xeon® E5 v4

Processor frequency
2.1 GHz

Processor lithography
14 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor package size
45 x 52.5 mm

Processor series
Intel Xeon E5-2600 v4

Processor socket
LGA 2011-v3

Processor threads
16

Scalability
2S

Stepping
R0

Supported instruction sets
AVX 2.0

System bus rate
8 GT/s

Tcase
74 °C

Thermal Design Power (TDP)
85 W

Thermal Monitoring Technologies
Yes

Processor special features

CPU configuration (max)
2

Enhanced Intel SpeedStep Technology
Yes

Intel 64
Yes

Intel Demand Based Switching
Yes

Intel Enhanced Halt State
Yes

Intel Flex Memory Access
No

Intel Identity Protection Technology version
0.00

Intel Secure Key Technology version
1.00

Intel Trusted Execution Technology
Yes

Intel TSX-NI
Yes

Intel TSX-NI version
1.00

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Intel® AES New Instructions (Intel® AES-NI)
Yes

Intel® Hyper Threading Technology (Intel® HT Technology)
Yes

Intel® Identity Protection Technology (Intel® IPT)
No

Intel® OS Guard
Yes

Intel® Secure Key
Yes

Intel® Turbo Boost Technology
2.0

Processor ARK ID
92986

Software

Compatible operating systems
Microsoft Windows Server Canonical Ubuntu Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware Citrix XenServer

Operating system installed
No

Storage

HDD capacity
300 GB

HDD interface
Serial Attached SCSI (SAS)

HDD size
2.5"

Maximum storage capacity
96 TB

Number of HDDs installed
2

Number of HDDs supported
8

Optical drive type
DVD-RW

RAID support
Yes

Storage Capacity
600 GB

Technical details

Sustainability certificates
ENERGY STAR

Weight & dimensions

Depth
769 mm

Height
464 mm

Width
219 mm

Memory

Internal memory type
DDR4-SDRAM

Memory clock speed
2400 MHz

Memory Installed
16 GB

Memory Slot Support
768 GB

Memory slots
24x DIMM

Processor

Processor
E5-2620V4
