Name: 4x Intel Xeon Platinum 8260 (2.4GHz, 35.75MB), 512GB (16 x 32GB) DDR4 RDIMM, 8 SFF HDD, Smart Array P408i-p SR Gen10, 4x 1600W PS
Brand: HPE
SKU: P40459-B21

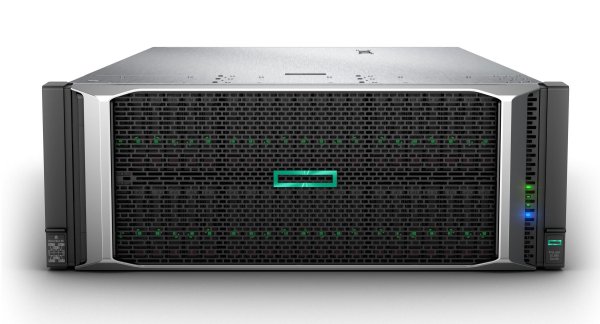

HPE ProLiant DL580 Gen10 server Rack (4U) Intel® Xeon® Platinum 8260 2.4 GHz 512 GB DDR4-SDRAM 1600 W

Roll over image to zoom inClick to Open expanded view

Product Properties

Manufacturer
HPE

Device type
Server

Design

Chassis type
Rack (4U)

Rack mounting
Yes

Filters

Machinecategory
Server

Graphics

Maximum graphics card memory
16 MB

On-board graphics card
Yes

Logistics data

Harmonized System (HS) code
84714100

Memory

Internal memory type
DDR4-SDRAM

Memory clock speed
2933 MHz

Memory Installed
512 GB

Memory layout (slots x size)
16 x 32 GB

Memory Slot Support
1.54 TB

Memory slots
48x DIMM

Network

Ethernet interface type
10 Gigabit Ethernet, 25 Gigabit Ethernet

Ethernet LAN
Yes

LAN controller
Broadcom 57414

Performance

Remote administration
iLO 5 ASIC

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

Serial ports quantity
1

VGA (D-Sub) ports quantity
1

Power

Number of redundant power supplies installed
4

Power supply
1600 W

Redundant power supply (RPS) support
Yes

Processor

Embedded options available
No

Execute Disable Bit
Yes

Maximum number of SMP processors
4

Motherboard chipset
Intel® C621

Number of processors installed
4

Processor
8260

Processor boost frequency
3.9 GHz

Processor cache
35.75 MB

Processor family
Intel® Xeon® Platinum

Processor frequency
2.4 GHz

Processor generation
2nd Generation Intel® Xeon® Scalable

Processor manufacturer
Intel

Processor special features

Enhanced Intel SpeedStep Technology
Yes

Intel 64
Yes

Intel Trusted Execution Technology
Yes

Intel TSX-NI
Yes

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Software

Compatible operating systems
Windows Server 2012 R2 Windows Server 2016 Windows Server 2019 VMware ESXi Red Hat Enterprise Linux (RHEL) 7.6 & 8.0 SUSE Linux Enterprise Server (SLES) 12 SP4 ,12 SP3 & 15 SP1

Operating system installed
No

Storage

Hot-Plug support
Yes

Maximum storage capacity
115.2 TB

Number of HDDs supported
8

Optical drive type
No

RAID levels
0, 1, 1 ADM, 5, 6, 10 ADM, 10, 50, 60

RAID support
Yes

Supported HDD sizes
2.5"

Weight & dimensions

Depth
751.8 mm

Height
174.7 mm

Weight
51.7 kg

Width
445.5 mm

Memory

Internal memory type
DDR4-SDRAM

Memory clock speed
2933 MHz

Memory Installed
512 GB

Memory Slot Support
1.54 TB

Memory slots
48x DIMM

Processor

Processor
8260

Processor generation
2nd Generation Intel® Xeon® Scalable
