Dataflex Viewgo pro

Name: Dataflex Viewgo pro
Brand: Dataflex
SKU: 48.623

SKU: 48.623

Log In to View Pricing

Dataflex Viewgo pro, Clamp/Bolt-through, 9 kg, 75 x 75 mm, 100 x 100 mm, Height adjustment, Black

hypertec

Product manual (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Dataflex

Warranty
5 Years

SKU
48.623

EAN
805410486235

Bullet points

Point
Arm swivel lock set at +90°/-90° (can be switched off)

Arm: swivel 360°

Compatible with VESA MIS-D 75 x 75/100 x 100 mm

Dynamic height adjustment of 300 mm (11,8")

Easy installation with the tools provided

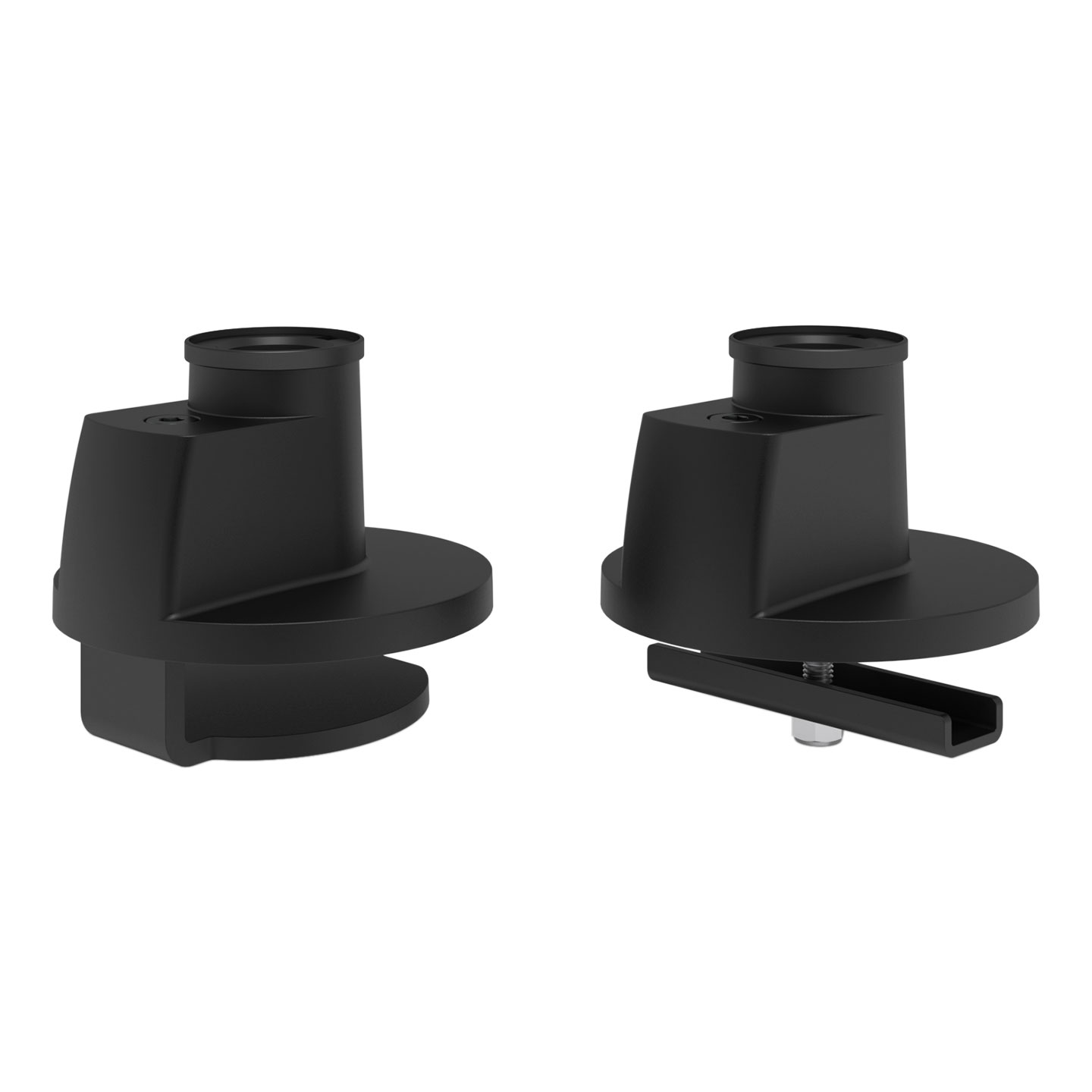

Equipped with desk clamp mount (top access clamp) and desk outlet mount

Fitted with a lifetime warranty adjustable tension spring

Fitted with cable clips to guide cables tidily

Independent depth adjustment

Main components made of aluminium

Maximum monitor size: height 1000 mm (39,4")

Monitor: tilt +60°/-15°, swivel +90°/-90°, rotate +90°/-90°

Standard VESA quick release

Sturdy, scratch-free attachment to any surface thanks to protective rubber anti-slip coating

Suitable for desktop thicknesses from 14 to 40 mm (0,6 - 1,57") (clamp) or 60 mm (2,36") (grommet)

Supports monitors in portrait and landscape mode

Tension gauge ensures easy monitor setup

Weight capacity min. 2 kg - max. 9 kg per monitor (4,4 - 19,8 lb)

Design

Easy to install
Yes

Housing material
Foam, Steel

Product colour
Black

Ergonomics

Adjustable depth
Yes

Angle of rotation
360°

Cable management
Yes

Height adjustment
Yes

Swivel angle
360°

Swivel angle range
-90 - 90°

Tilt angle range
-15 - 60°

Mounting

Desk thickness (max)
6 cm

Desk thickness (min)
5 mm

Maximum VESA mount
100 x 100 mm

Maximum weight capacity
9 kg

Maximum weight capacity (per display)
2 kg

Minimum VESA mount
75 x 75 mm

Monitor height (max)
100 cm

Mounting
Clamp/Bolt-through

Mounting type
Desk

Number of displays supported
1

Panel mounting interface
75 x 75,100 x 100 mm

Packaging content

Clamp included
Yes

Technical details

Height adjustment
30 cm

Weight & dimensions

Package depth
150 mm

Package height
120 mm

Package weight
4.16 kg

Package width
760 mm

Description

Dataflex Viewgo pro. Mounting: Clamp/Bolt-through, Maximum weight capacity: 9 kg, Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -15 - 60°. Product colour: Black

Maximum weight capacity: 9 kg
Number of displays supported: 1
Clamp/Bolt-through Mounting type: Desk
Maximum VESA mount: 100 x 100 mm
Height adjustment
Cable management Easy to install
Foam, Steel Black
Dynamic height adjustment of 300 mm (11,8")
Independent depth adjustment
Fitted with a lifetime warranty adjustable tension spring
Fitted with cable clips to guide cables tidily
Main components made of aluminium
Standard VESA quick release
Compatible with VESA MIS-D 75 x 75/100 x 100 mm
Monitor: tilt +60°/-15°, swivel +90°/-90°, rotate +90°/-90°
Arm: swivel 360°
Arm swivel lock set at +90°/-90° (can be switched off)
Weight capacity min. 2 kg - max. 9 kg per monitor (4,4 - 19,8 lb)
Equipped with desk clamp mount (top access clamp) and desk outlet mount
Suitable for desktop thicknesses from 14 to 40 mm (0,6 - 1,57") (clamp) or 60 mm (2,36") (grommet)
Maximum monitor size: height 1000 mm (39,4")
Sturdy, scratch-free attachment to any surface thanks to protective rubber anti-slip coating
Easy installation with the tools provided
Supports monitors in portrait and landscape mode
Tension gauge ensures easy monitor setup
