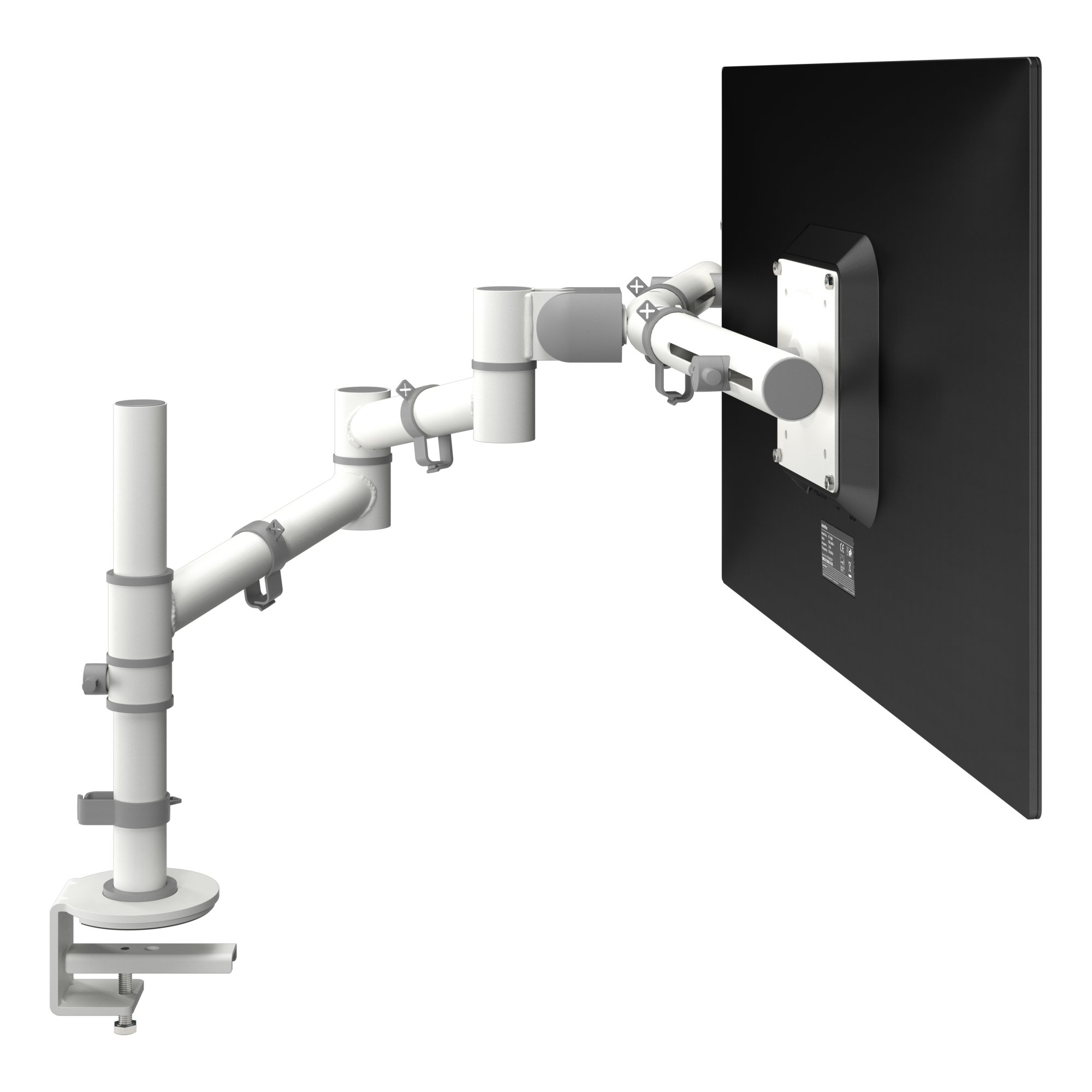

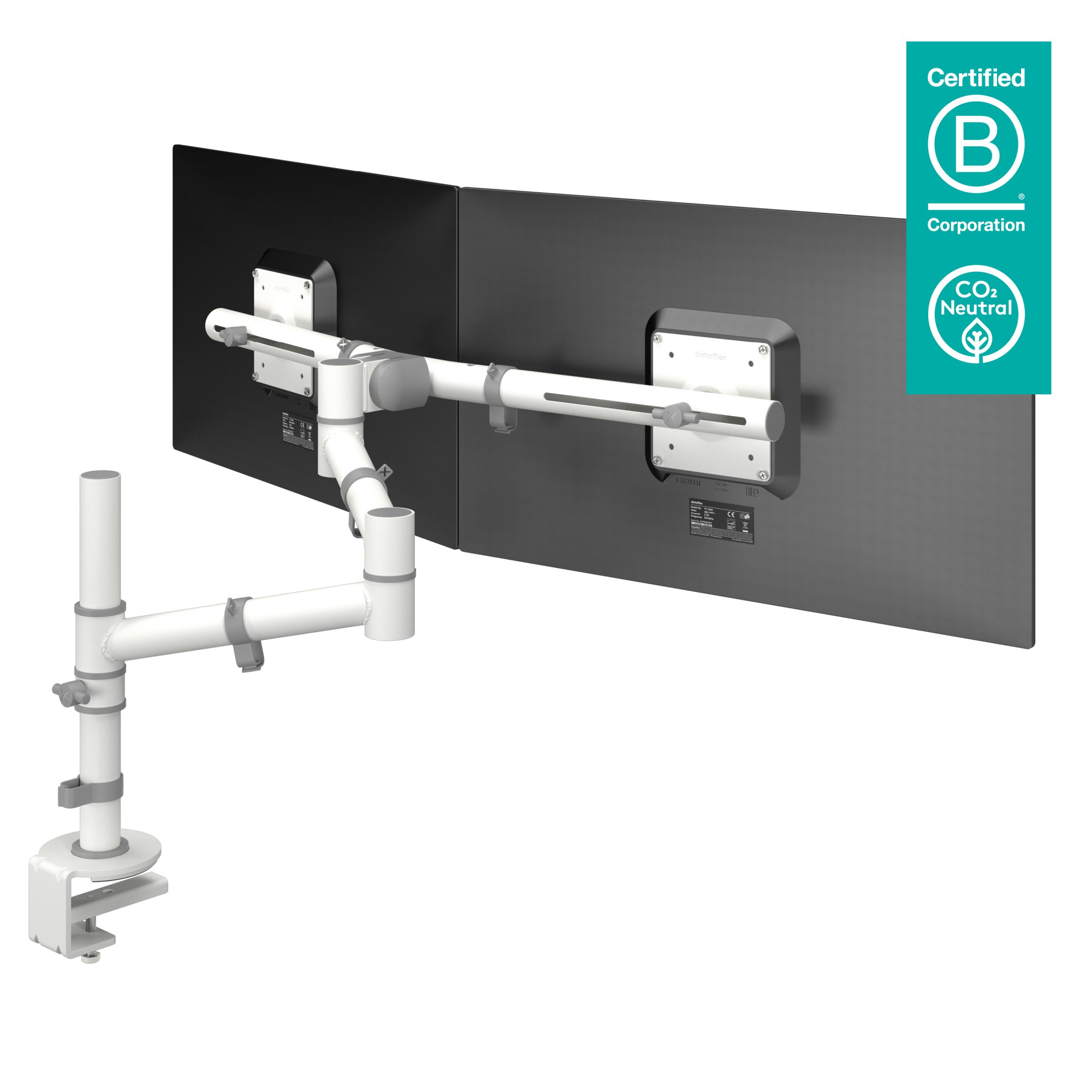

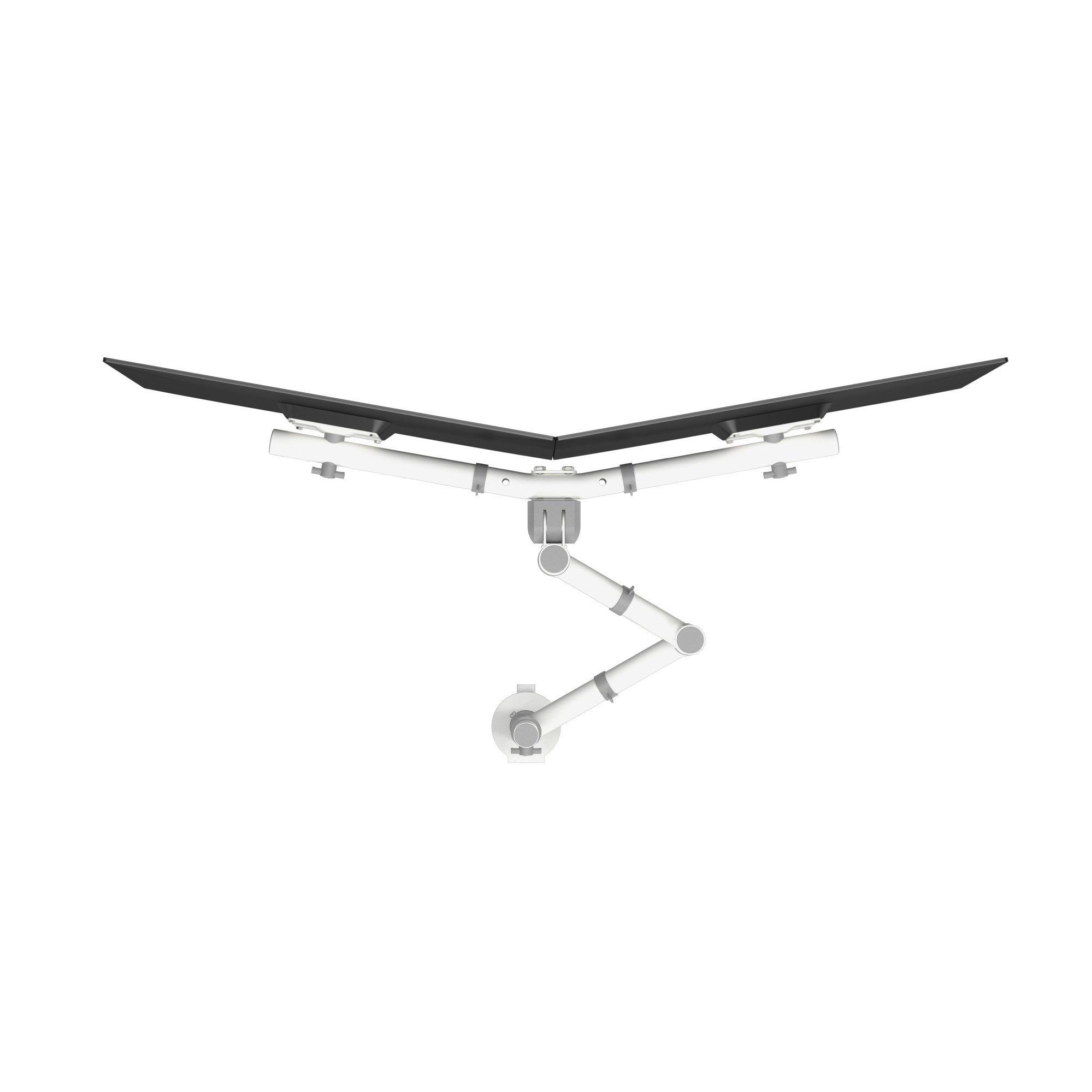

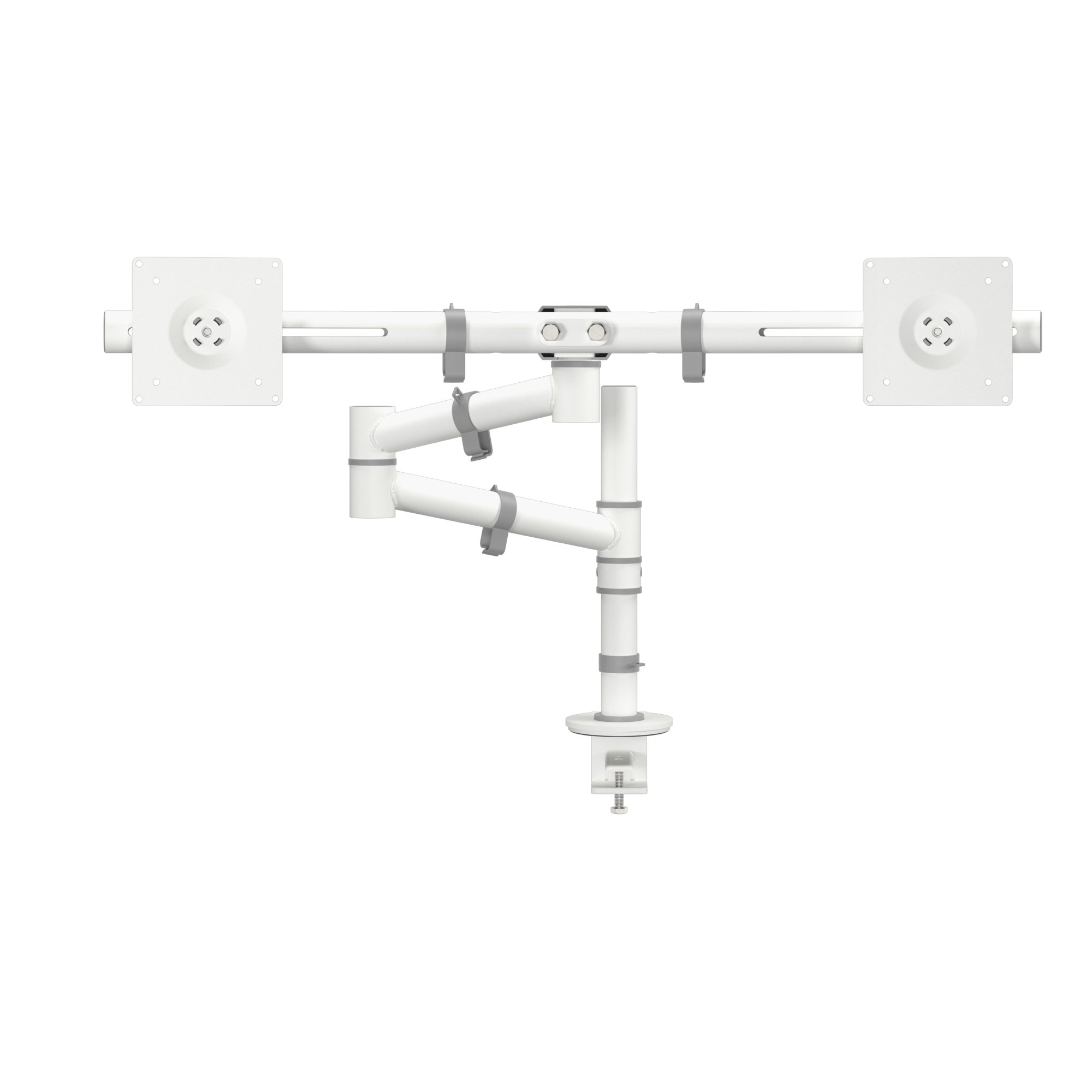

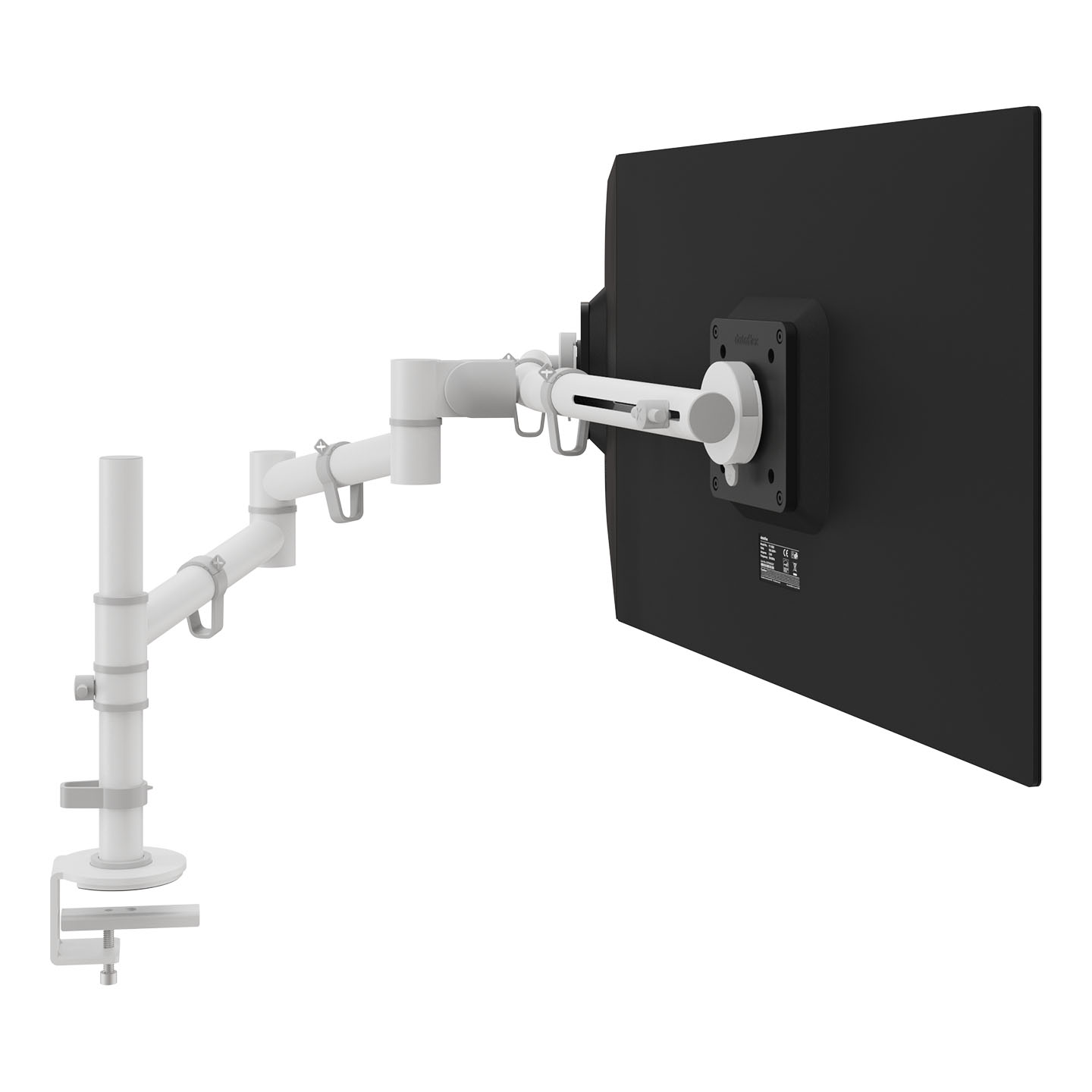

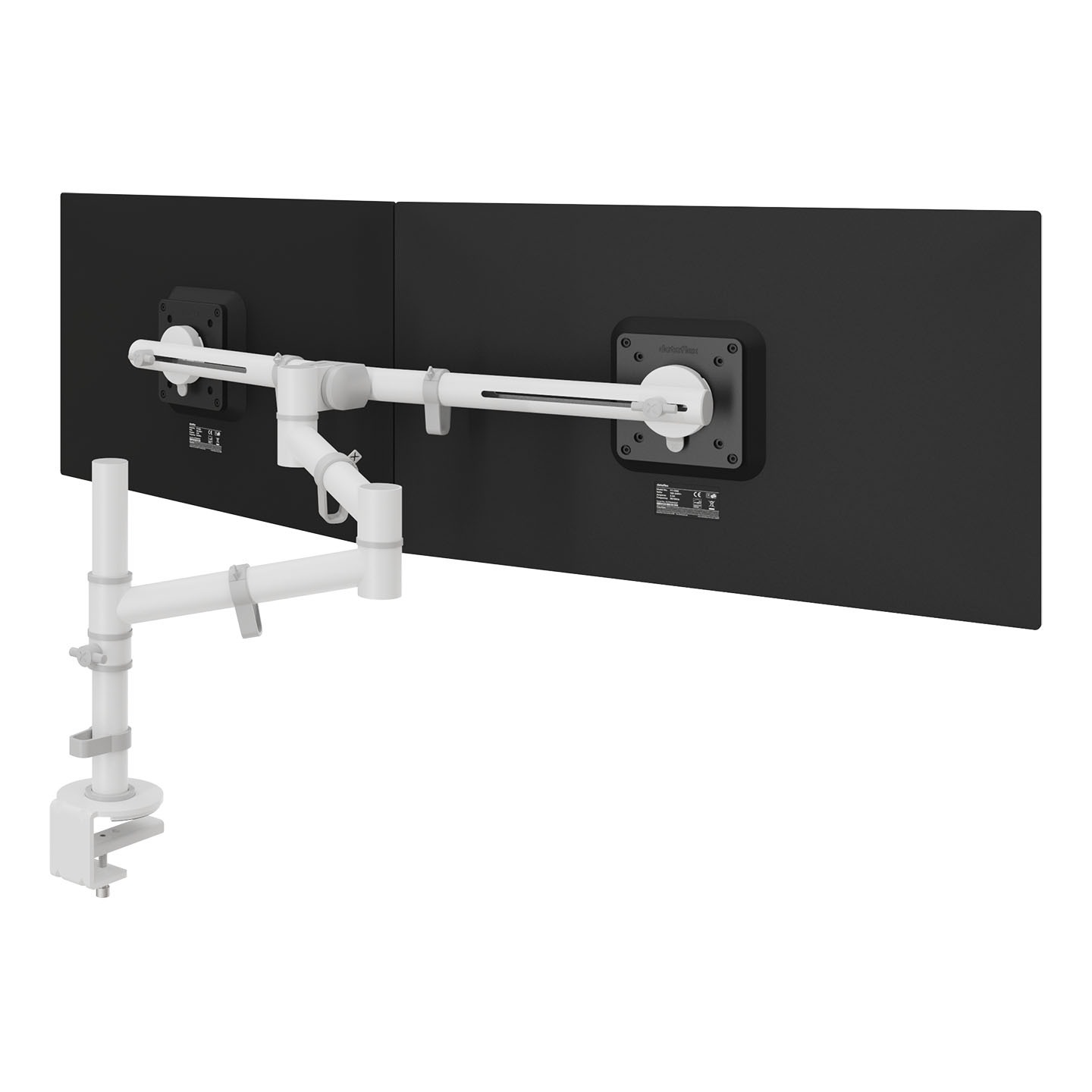

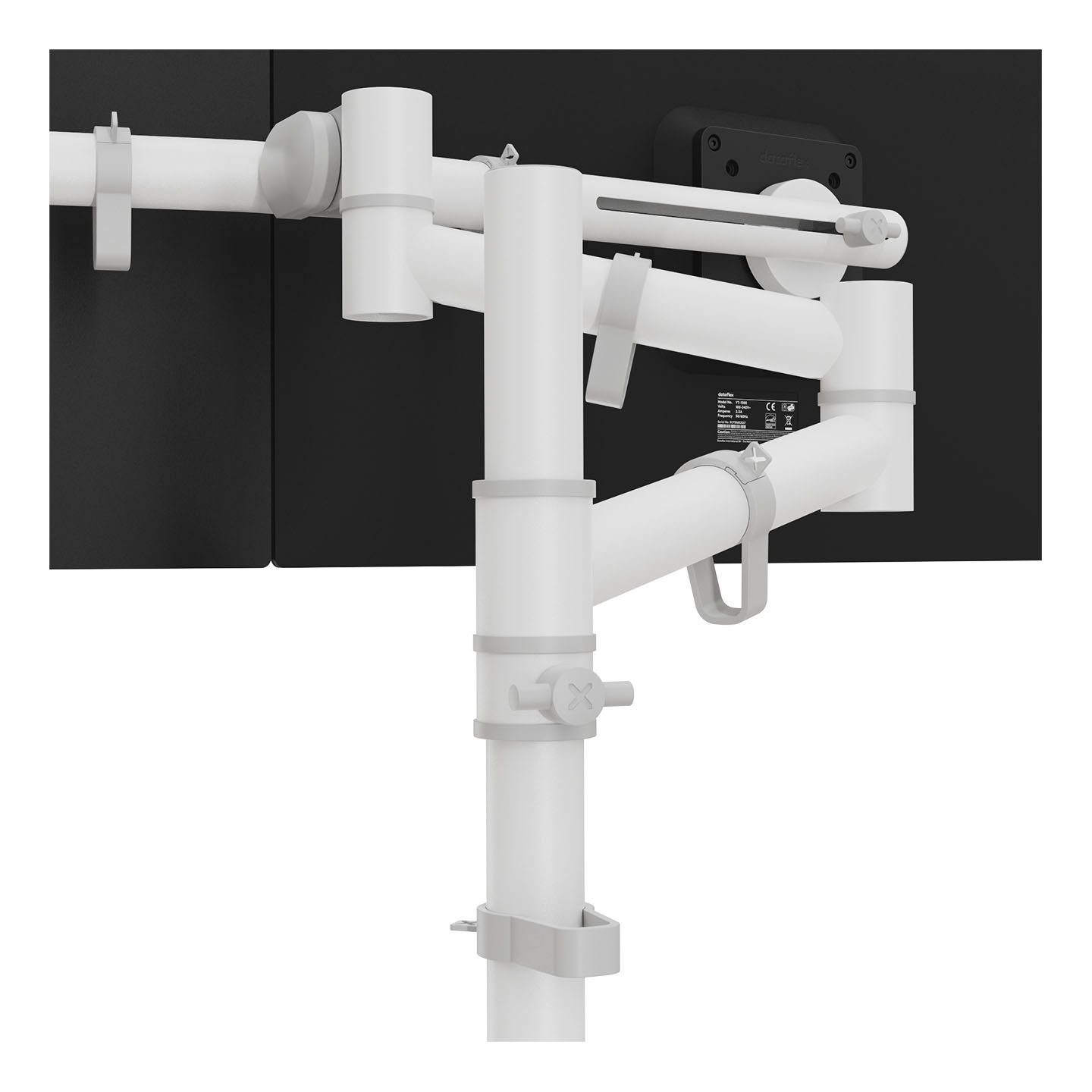

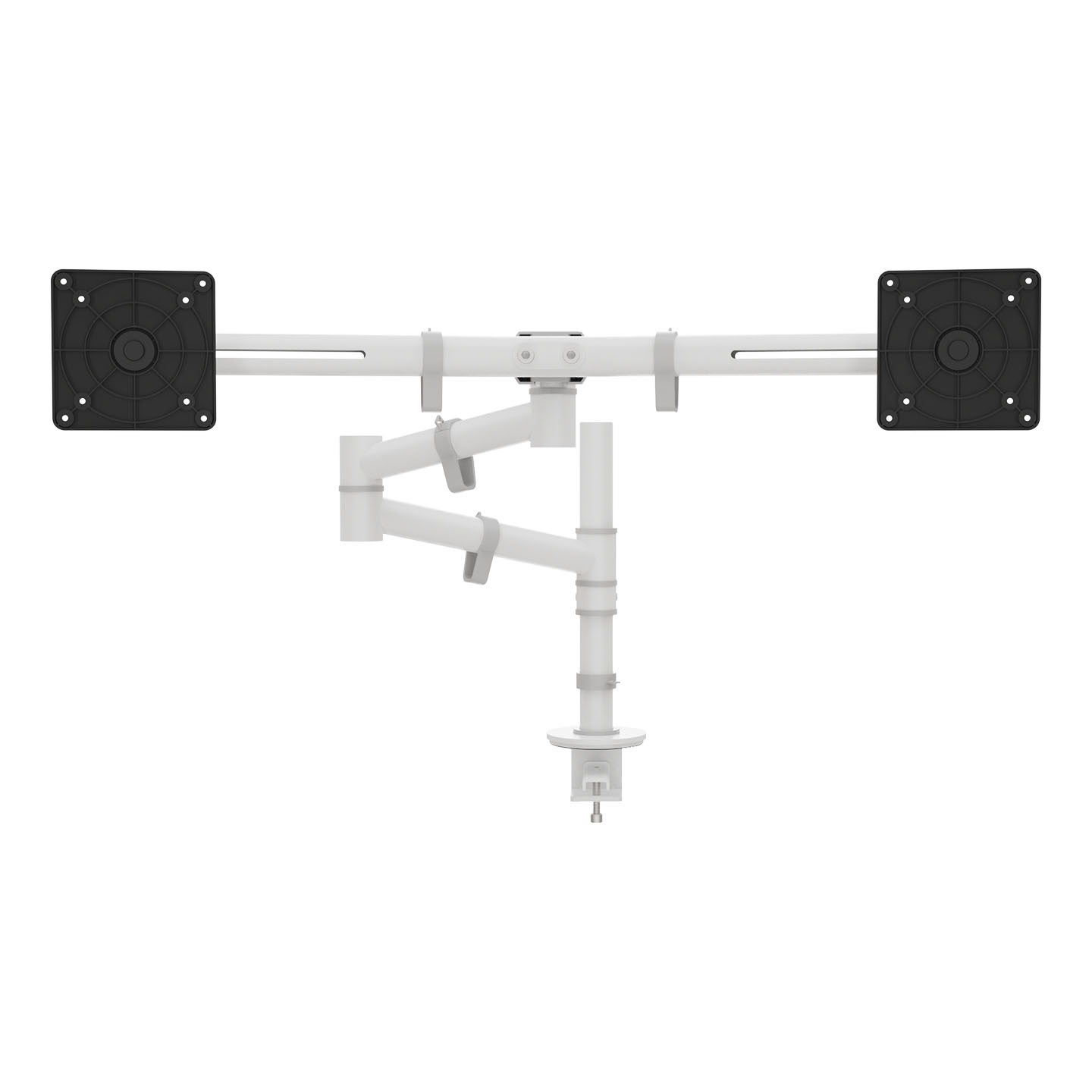

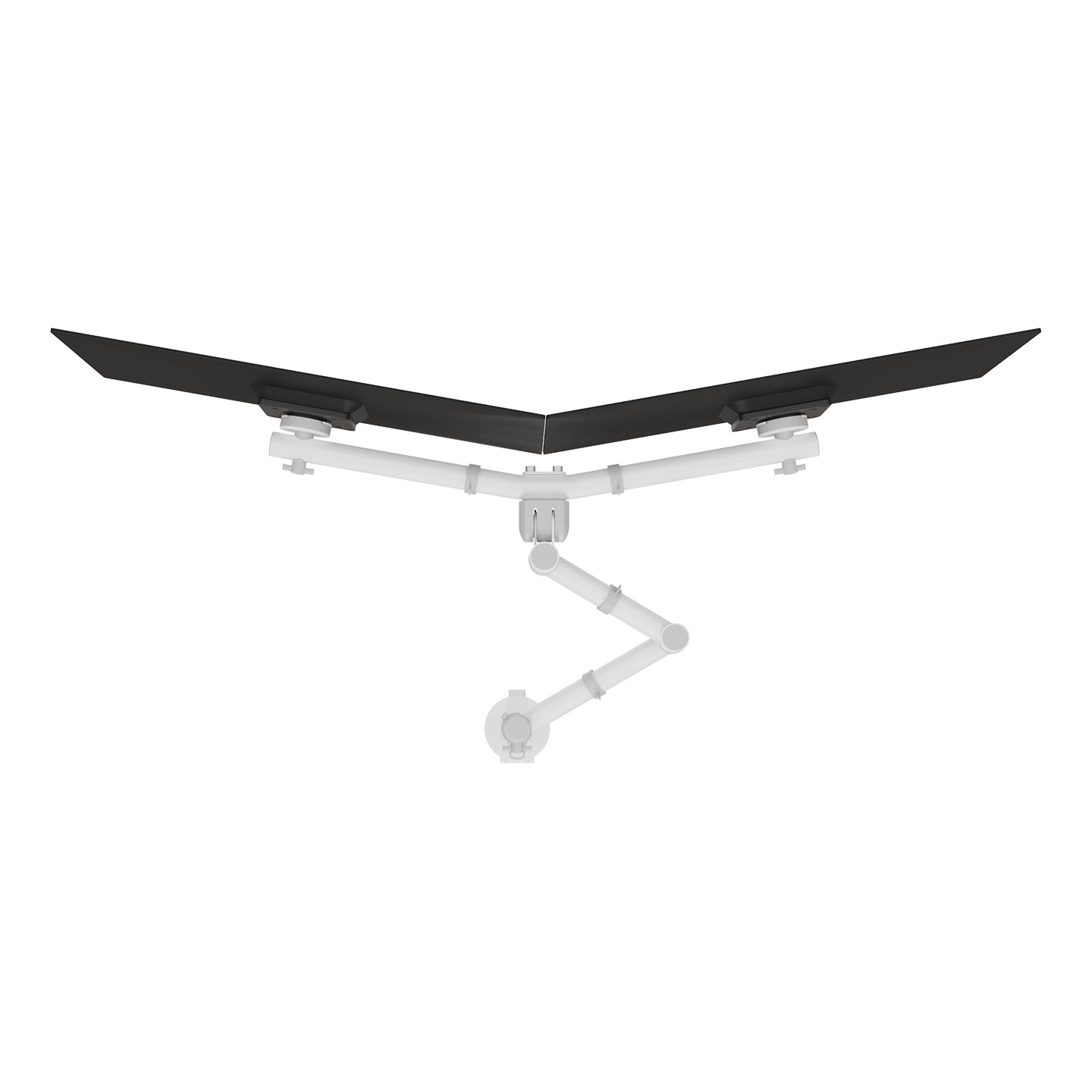

Dataflex Viewgo monitor arm - desk 130

Name: Dataflex Viewgo monitor arm - desk 130
Brand: Dataflex
SKU: 48.130

SKU: 48.130

Dataflex Viewgo monitor arm - desk 130, Clamp/Bolt-through, 8 kg, 68.6 cm (27"), 100 x 100 mm, Height adjustment, White

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Dataflex

Warranty
1 Year

SKU
48.130

EAN
805410481308

Bullet points

Point
Arm: swivel 360°

Comes with a desk clamp mount and bolt-through desk mount

Fitted with cable clips to guide cables tidily

Hassle-free installation using just one supplied tool

Independent depth adjustment

Monitor size limit: width 620 mm (24,4") - height 900 mm (35,4")

Monitor: tilt +90°/-50°, swivel +90°/-90°

Simple height adjustment using a tightening knob

Static height adjustment range of 210 mm (8,3")

Supports monitors in portrait and landscape mode

Unique mechanism enables precise horizontal levelling

VESA MIS-D 75 x 75/100 x 100 mm compatible

Weight capacity max. 4 kg (9,7 lb) per monitor

Design

Housing material
Steel

Product colour
White

Ergonomics

Angle of rotation
360°

Cable management
Yes

Height adjustment
Yes

Number of pivot points
3

Swivel angle
360°

Tilt angle range
-50 - 90°

Turn angle
180°

Logistics data

Harmonized System (HS) code
85299097

Mounting

Desk thickness (max)
6 cm

Desk thickness (min)
5 mm

Maximum screen size
68.6 cm (27")

Maximum VESA mount
100 x 100 mm

Maximum weight capacity
8 kg

Minimum VESA mount
75 x 75 mm

Mounting
Clamp/Bolt-through

Mounting type
Desk

Number of displays supported
2

Panel mounting interface
75 x 75,100 x 100 mm

Packaging content

Clamp included
Yes

Technical details

Height adjustment
21 cm

Weight & dimensions

Package depth
192 mm

Package height
130 mm

Package weight
4.4 kg

Package width
736 mm

Description

Dataflex Viewgo monitor arm - desk 130. Mounting: Clamp/Bolt-through, Maximum weight capacity: 8 kg, Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: -50 - 90°. Product colour: White

Maximum weight capacity: 8 kg
Maximum screen size: 68.6 cm (27")
Number of displays supported: 2
Clamp/Bolt-through Mounting type: Desk
Maximum VESA mount: 100 x 100 mm
Height adjustment
Cable management
Steel White
Static height adjustment range of 210 mm (8,3")
Independent depth adjustment
Fitted with cable clips to guide cables tidily
VESA MIS-D 75 x 75/100 x 100 mm compatible
Monitor: tilt +90°/-50°, swivel +90°/-90°
Arm: swivel 360°
Weight capacity max. 4 kg (9,7 lb) per monitor
Comes with a desk clamp mount and bolt-through desk mount
Suitable for desktop thicknesses of 5 up to 40 mm (0,2" - 1,6") (clamp) or 60 mm (2,4") (bolt through)
Monitor size limit: width 620 mm (24,4") - height 900 mm (35,4")
Simple height adjustment using a tightening knob
Hassle-free installation using just one supplied tool
Supports monitors in portrait and landscape mode
Unique mechanism enables precise horizontal levelling
