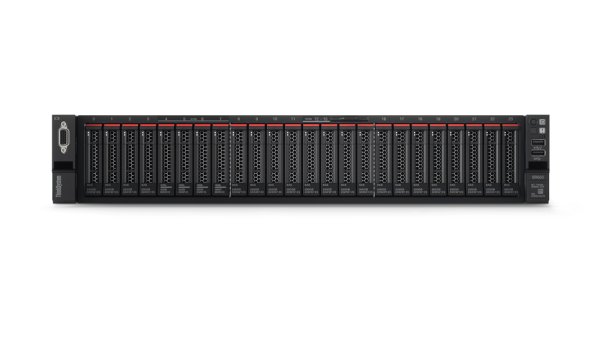

Name: 1x Intel Xeon Gold 6142 16 Cores 2.6GHz, 32GB DDR4, 1x 930-8i 2GB flash, 1xLP x8/1xRAID slot, TPM 1.2, XClarity Standard, 1x 1100W Platinum
Brand: Lenovo
SKU: 7X06A03EEA

1x Intel Xeon Gold 6142 16 Cores 2.6GHz, 32GB DDR4, 1x 930-8i 2GB flash, 1xLP x8/1xRAID slot, TPM 1.2, XClarity Standard, 1x 1100W Platinum

Roll over image to zoom inClick to Open expanded view

Product Properties

Manufacturer
Lenovo

Device type
Server

Design

Chassis type
Rack (2U)

Rack mounting
Yes

Rack rails
Yes

Redundant fans support
Yes

Expansion slots

PCI Express slots version
3.0

PCI Express x16 (Gen 3.x) slots
1

PCI Express x8 (Gen 3.x) slots
2

Filters

Machinecategory
Server

Graphics

On-board graphics card
Yes

Memory

ECC
Yes

Internal memory type
DDR4-SDRAM

Memory clock speed
2666 MHz

Memory Installed
32 GB

Memory Slot Support
3.07 TB

Memory slots
24x DIMM

Network

Cabling technology
10/100/1000Base-T(X)

Ethernet LAN
Yes

Operational conditions

Operating altitude
0 - 3048 m

Operating relative humidity (H-H)
8 - 90%

Operating temperature (T-T)
5 - 45 °C

Storage relative humidity (H-H)
8 - 90%

Storage temperature (T-T)
-10 - 60 °C

Performance

Performance management
XClarity Standard

Trusted Platform Module (TPM)
Yes

Trusted Platform Module (TPM) version
1.2

Power

Number of main power supplies
1

Number of redundant power supplies supported
2

Power supply
1100 W

Power supply input frequency
50 - 60 Hz

Redundant power supply (RPS) support
Yes

Processor

Conflict-Free processor
Yes

ECC supported by processor
Yes

Embedded options available
No

Execute Disable Bit
Yes

Maximum internal memory supported by processor
768 GB

Maximum number of PCI Express lanes
48

Memory channels supported by processor
Hexa

Memory clock speeds supported by processor
2666 MHz

Memory types supported by processor
DDR4-SDRAM

Number of Cores
16

Number of processors installed
1

Processor
6142

Processor boost frequency
3.7 GHz

Processor cache
22 MB

Processor cache type
L3

Processor code
SR3AY

Processor codename
Skylake

Processor family
Intel® Xeon®

Processor frequency
2.6 GHz

Processor generation
1st Generation Intel® Xeon® Scalable

Processor lithography
14 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor package size
76.0 x 56.5 mm

Processor socket
LGA 3647 (Socket P)

Processor threads
32

Scalability
S4S

Stepping
H0

Supported instruction sets
AVX, AVX 2.0, AVX-512, SSE4.2

Tcase
85 °C

Thermal Design Power (TDP)
150 W

Processor special features

Enhanced Intel SpeedStep Technology
Yes

Intel 64
Yes

Intel Trusted Execution Technology
Yes

Intel TSX-NI
Yes

Intel TSX-NI version
1.00

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Intel® AES New Instructions (Intel® AES-NI)
Yes

Intel® Hyper Threading Technology (Intel® HT Technology)
Yes

Intel® Turbo Boost Technology
2.0

Processor ARK ID
120487

Storage

HDD interface
Serial ATA, Serial Attached SCSI (SAS)

HDD size
2.5"

Hot-swap
Yes

Maximum storage capacity
61.4 TB

Optical drive type
No

RAID levels
0, 1, 5, 6, 10, 50, 60, JBOD

RAID support
Yes

Supported HDD sizes
2.5"

Supported RAID controllers
930-8i

Supported storage drive interfaces
SAS, Serial ATA III

Technical details

Sustainability certificates
ENERGY STAR

Weight & dimensions

Depth
763.7 mm

Height
86.5 mm

Width
482 mm

Memory

Internal memory type
DDR4-SDRAM

Memory clock speed
2666 MHz

Memory Installed
32 GB

Memory Slot Support
3.07 TB

Memory slots
24x DIMM

Processor

Processor
6142

Processor generation
1st Generation Intel® Xeon® Scalable
